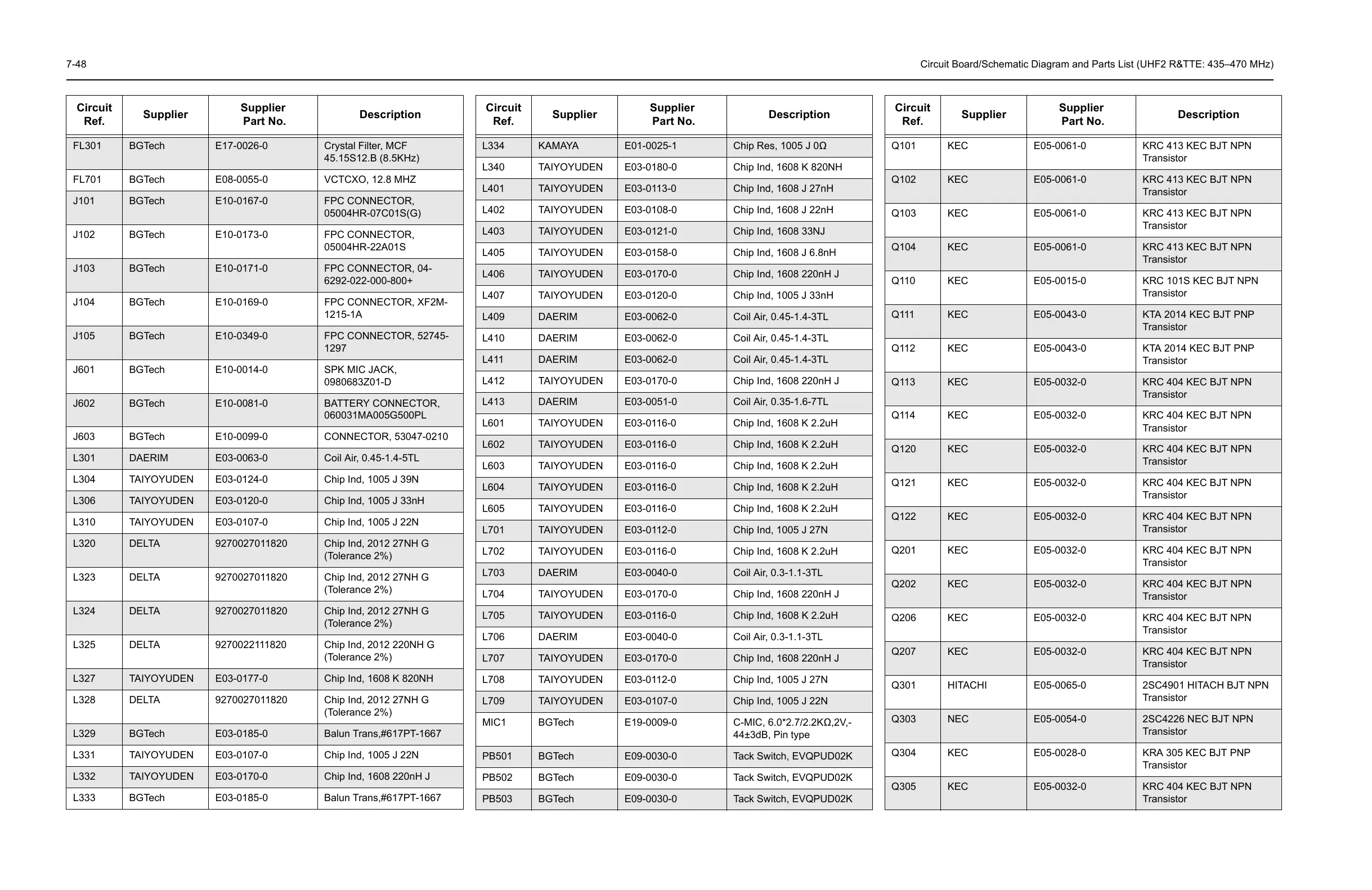

7-48 Circuit Board/Schematic Diagram and Parts List (UHF2 R&TTE: 435–470 MHz)
FL301 BGTech E17-0026-0 Crystal Filter, MCF
45.15S12.B (8.5KHz)
FL701 BGTech E08-0055-0 VCTCXO, 12.8 MHZ
J101 BGTech E10-0167-0 FPC CONNECTOR,
05004HR-07C01S(G)
J102 BGTech E10-0173-0 FPC CONNECTOR,
05004HR-22A01S
J103 BGTech E10-0171-0 FPC CONNECTOR, 04-
6292-022-000-800+
J104 BGTech E10-0169-0 FPC CONNECTOR, XF2M-
1215-1A
J105 BGTech E10-0349-0 FPC CONNECTOR, 52745-
1297
J601 BGTech E10-0014-0 SPK MIC JACK,
0980683Z01-D
J602 BGTech E10-0081-0 BATTERY CONNECTOR,
060031MA005G500PL
J603 BGTech E10-0099-0 CONNECTOR, 53047-0210
L301 DAERIM E03-0063-0 Coil Air, 0.45-1.4-5TL
L304 TAIYOYUDEN E03-0124-0 Chip Ind, 1005 J 39N
L306 TAIYOYUDEN E03-0120-0 Chip Ind, 1005 J 33nH
L310 TAIYOYUDEN E03-0107-0 Chip Ind, 1005 J 22N
L320 DELTA 9270027011820 Chip Ind, 2012 27NH G
(Tolerance 2%)
L323 DELTA 9270027011820 Chip Ind, 2012 27NH G
(Tolerance 2%)
L324 DELTA 9270027011820 Chip Ind, 2012 27NH G
(Tolerance 2%)
L325 DELTA 9270022111820 Chip Ind, 2012 220NH G
(Tolerance 2%)
L327 TAIYOYUDEN E03-0177-0 Chip Ind, 1608 K 820NH
L328 DELTA 9270027011820 Chip Ind, 2012 27NH G
(Tolerance 2%)
L329 BGTech E03-0185-0 Balun Trans,#617PT-1667
L331 TAIYOYUDEN E03-0107-0 Chip Ind, 1005 J 22N
L332 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L333 BGTech E03-0185-0 Balun Trans,#617PT-1667
Circuit
Ref.
Supplier
Supplier
Part No.
Description
L334 KAMAYA E01-0025-1 Chip Res, 1005 J 0
L340 TAIYOYUDEN E03-0180-0 Chip Ind, 1608 K 820NH
L401 TAIYOYUDEN E03-0113-0 Chip Ind, 1608 J 27nH
L402 TAIYOYUDEN E03-0108-0 Chip Ind, 1608 J 22nH
L403 TAIYOYUDEN E03-0121-0 Chip Ind, 1608 33NJ
L405 TAIYOYUDEN E03-0158-0 Chip Ind, 1608 J 6.8nH
L406 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L407 TAIYOYUDEN E03-0120-0 Chip Ind, 1005 J 33nH
L409 DAERIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L410 DAERIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L411 DAERIM E03-0062-0 Coil Air, 0.45-1.4-3TL
L412 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L413 DAERIM E03-0051-0 Coil Air, 0.35-1.6-7TL
L601 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L602 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L603 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L604 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L605 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L701 TAIYOYUDEN E03-0112-0 Chip Ind, 1005 J 27N
L702 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L703 DAERIM E03-0040-0 Coil Air, 0.3-1.1-3TL
L704 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L705 TAIYOYUDEN E03-0116-0 Chip Ind, 1608 K 2.2uH
L706 DAERIM E03-0040-0 Coil Air, 0.3-1.1-3TL
L707 TAIYOYUDEN E03-0170-0 Chip Ind, 1608 220nH J
L708 TAIYOYUDEN E03-0112-0 Chip Ind, 1005 J 27N
L709 TAIYOYUDEN E03-0107-0 Chip Ind, 1005 J 22N
MIC1 BGTech E19-0009-0 C-MIC, 6.0*2.7/2.2K,2V,-
44±3dB, Pin type
PB501 BGTech E09-0030-0 Tack Switch, EVQPUD02K
PB502 BGTech E09-0030-0 Tack Switch, EVQPUD02K
PB503 BGTech E09-0030-0 Tack Switch, EVQPUD02K
Circuit
Ref.
Supplier
Supplier
Part No.
Description
Q101 KEC E05-0061-0 KRC 413 KEC BJT NPN
Transistor
Q102 KEC E05-0061-0 KRC 413 KEC BJT NPN
Transistor
Q103 KEC E05-0061-0 KRC 413 KEC BJT NPN
Transistor
Q104 KEC E05-0061-0 KRC 413 KEC BJT NPN
Transistor
Q110 KEC E05-0015-0 KRC 101S KEC BJT NPN
Transistor
Q111 KEC E05-0043-0 KTA 2014 KEC BJT PNP
Transistor
Q112 KEC E05-0043-0 KTA 2014 KEC BJT PNP
Transistor
Q113 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q114 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q120 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q121 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q122 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q201 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q202 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q206 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q207 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Q301 HITACHI E05-0065-0 2SC4901 HITACH BJT NPN
Transistor
Q303 NEC E05-0054-0 2SC4226 NEC BJT NPN
Transistor
Q304 KEC E05-0028-0 KRA 305 KEC BJT PNP
Transistor
Q305 KEC E05-0032-0 KRC 404 KEC BJT NPN
Transistor
Circuit
Ref.
Supplier
Supplier
Part No.
Description
