5
TROUBLESHOOTING
When troubleshooting, always observe the color of the LED:
Table 3 LED Indications of Battery/Charger Status
LED Color Battery/Charger Status
No LED indication Battery is inserted incorrectly.
Single green blink Successful charger power-up
Blinking red
Battery is unchargeable or not making
proper contact.
Steady red Battery is in rapid-charge mode.
Blinking yellow
Battery is in charger, not in rapid-charge
mode but waiting to be charged.
Blinking green
Battery is charged (to 90% or greater
capacity).
Steady green Battery is fully charged.

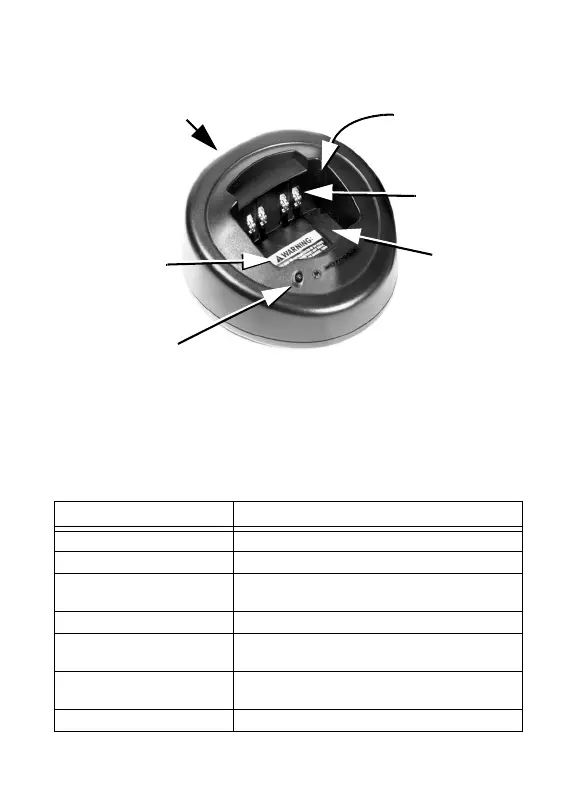

Figure 1 Battery Charger
SOCKET
(located here)
RAISED RAIL
CHARGING
CONTACTS
POCKET
LED
WARNING
LABEL
Text.fm Page 5 Monday, March 17, 2008 4:28 PM
