Ping Utility
Ping (Packet InterNet Groper) allows you to check connectivity between the SBG901 and other
devices on the SBG901 LAN. This utility sends a small packet of data and then waits for a reply.
When you Ping a computer IP address and receive a reply, it confirms that the computer is
connected to the SBG901.

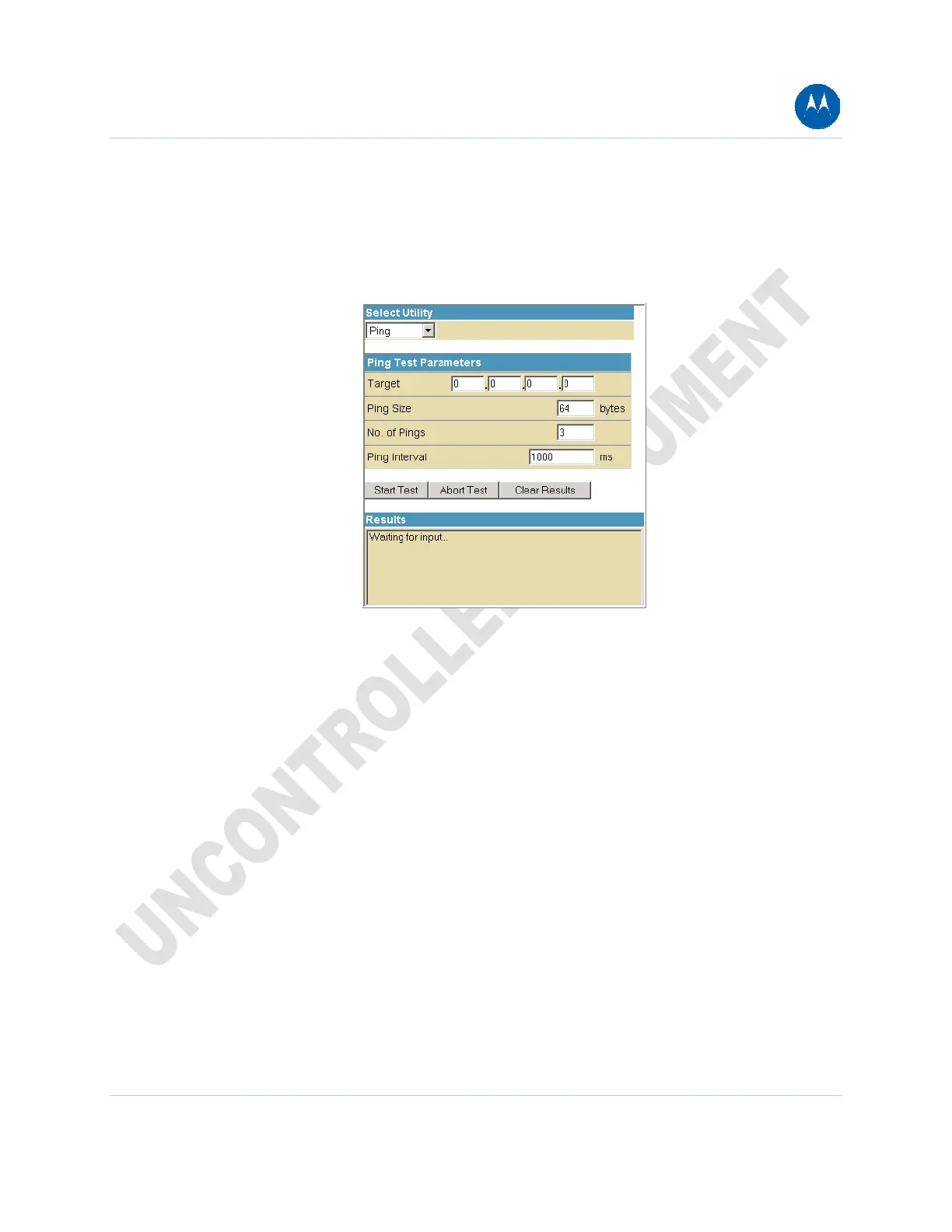

Figure 30 Ping Utility window
Testing Network Connectivity with the SBG901
Perform the following steps to check connectivity between the SBG901 and other devices on the
SBG901 LAN:
1. Select Ping from the Select Utility drop-down list.
2. Enter the IP address of the computer you want to Ping in the Target field.
3. Enter the data packet size in bytes in the Ping Size field.
4. Enter the number of ping attempts in the No. of Pings field.
5. Enter the time between Ping send operations in milliseconds in the Ping Interval field.
6. Click Start Test to begin the Ping operation. The Ping results will display in the Results pane.
7. You can click Abort Test at any time during the test to stop the Ping operation.
8. Repeat steps 2 through 6 for each device you want to ping.
When done, click Clear Results to delete the Ping results in the Results pane.
4 Status Pages 50
This document is uncontrolled pending incorporation in PDM
