Motorola TLKR T7 - Control Panel Overview

3
English

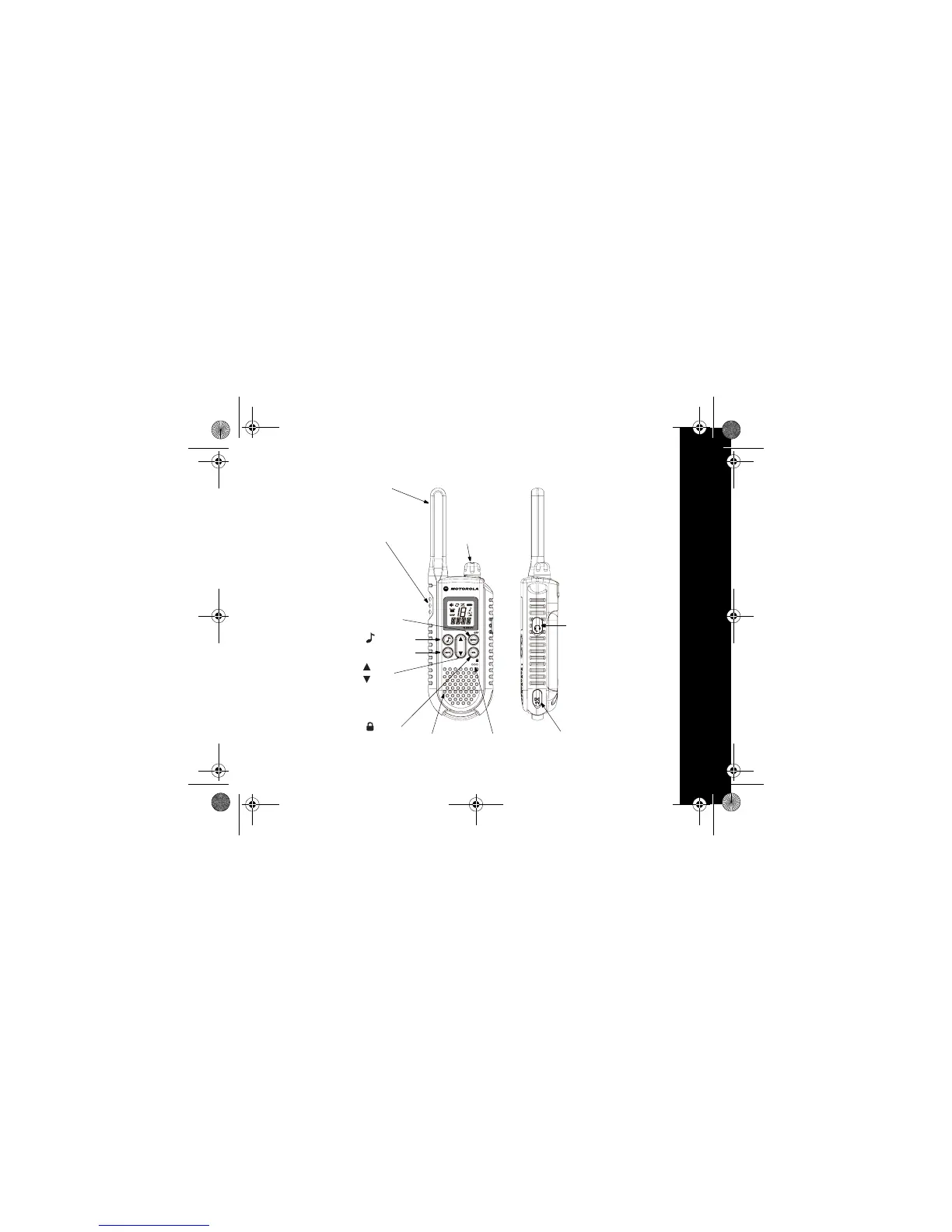

Control and Functions
Headset Jack
(Headset is not
included)
Antenna
Volume Knob with
Power SW
PTT (Push-To-Talk) Key
(Call) Key
MON (Monitor) Key
Key
Key
Select Item
and numbers
for Menu
MENU/GRP key
(Menu and
Group Menu)
SEL/ key
(Select and Lock)
Speaker
Microphone
DC IN 9V Jack
