Operating the VC5090 3 - 19
3. As the screen instructs, carefully touch and briefly hold on the center of each target that appears on the screen.
Repeat as the target moves around the screen.
4. Tap the screen to accept the new calibration.
Using the Keyboard
If the present calibration does not allow you to use the touch screen, use the keyboard (or any standard USB
keyboard) to calibrate:
1. Press Ctrl + Esc keys to access the Start menu.
2. Using the arrow keys, select Settings > Control Panel.
3. Press Enter to display the Control Panel window.

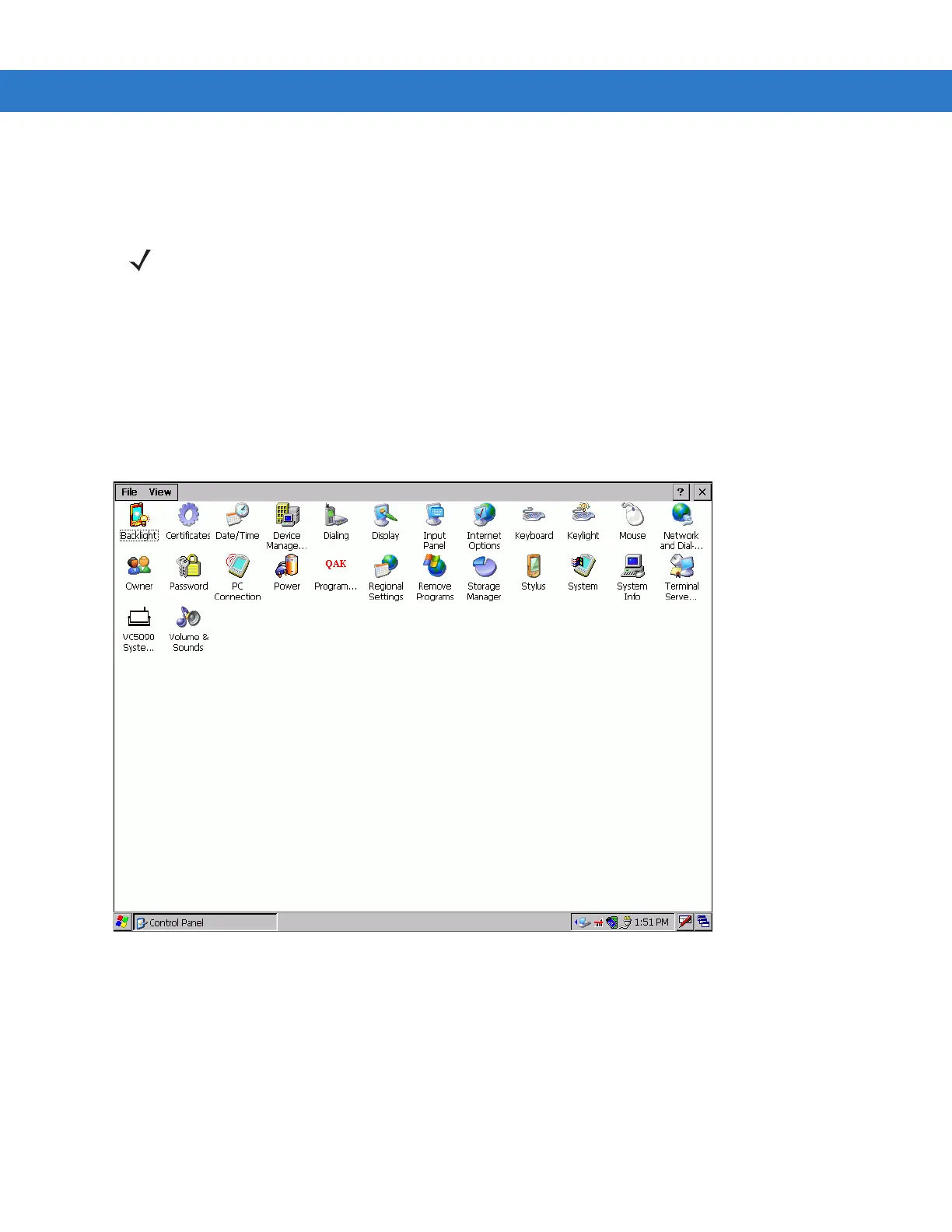

Figure 3-31
Control Panel Window
4. Using the arrow keys, move to the Stylus icon and press Enter. The Stylus Properties window appears.
NOTE If the calibration screen fails to respond, contact Support Central for assistance.
