Motorola XTS 2250 User Manual

6816985H01-F February 14, 2012
UHF1 Troubleshooting Charts: Radio Power-Up Fail Troubleshooting Chart (3 of 3) 6.2-5

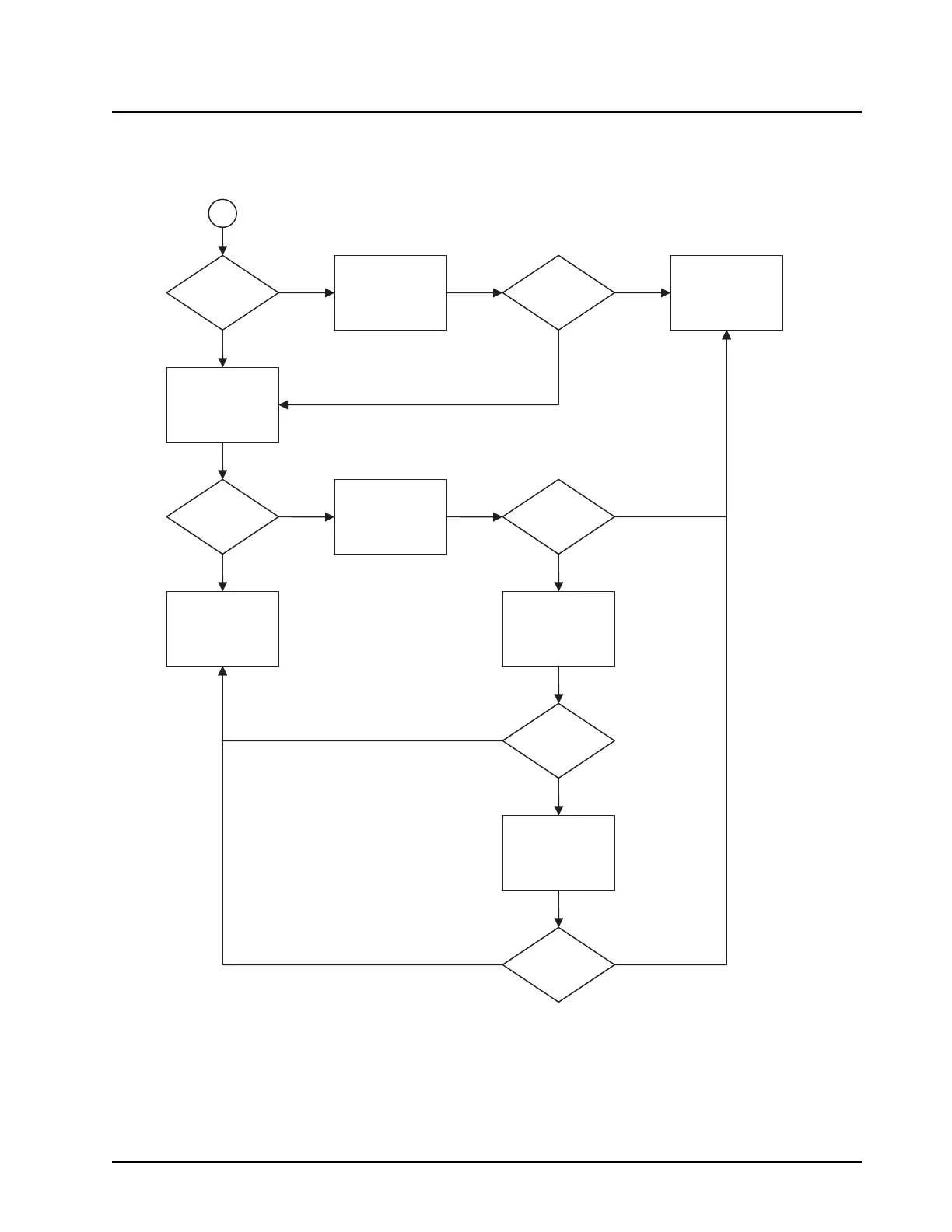

6.2.6 Radio Power-Up Fail Troubleshooting Chart (3 of 3)
2
Components
OK?
Replace Problem
Component
Problem
solved?
End
Check for 32.768kHz
signal on R747
Signal
Present?
Follow DC Supply Failure
Flowchart
Replace U712 and retest
Problem
Solved?
Check for 32.768kHz
signal on R745
Signal
Present?
Yes
No
Yes
Yes
No
No
No
Yes
Yes
Replace U713
Problem
solved?
No
Yes No

Motorola XTS 2250 Specifications

General

Power Output	VHF: 1-5W, UHF: 1-4W
IP Rating	IP54
Battery Type	Li-Ion
Display	Yes
Trunking	Yes
System Type	Analog/Digital
Operating Temperature	-30°C to +60°C
Encryption	Yes
Weight	350 g (with battery)
Dimensions	137 mm x 58 mm x 38 mm with standard battery
