February 14, 2012 6816985H01-F

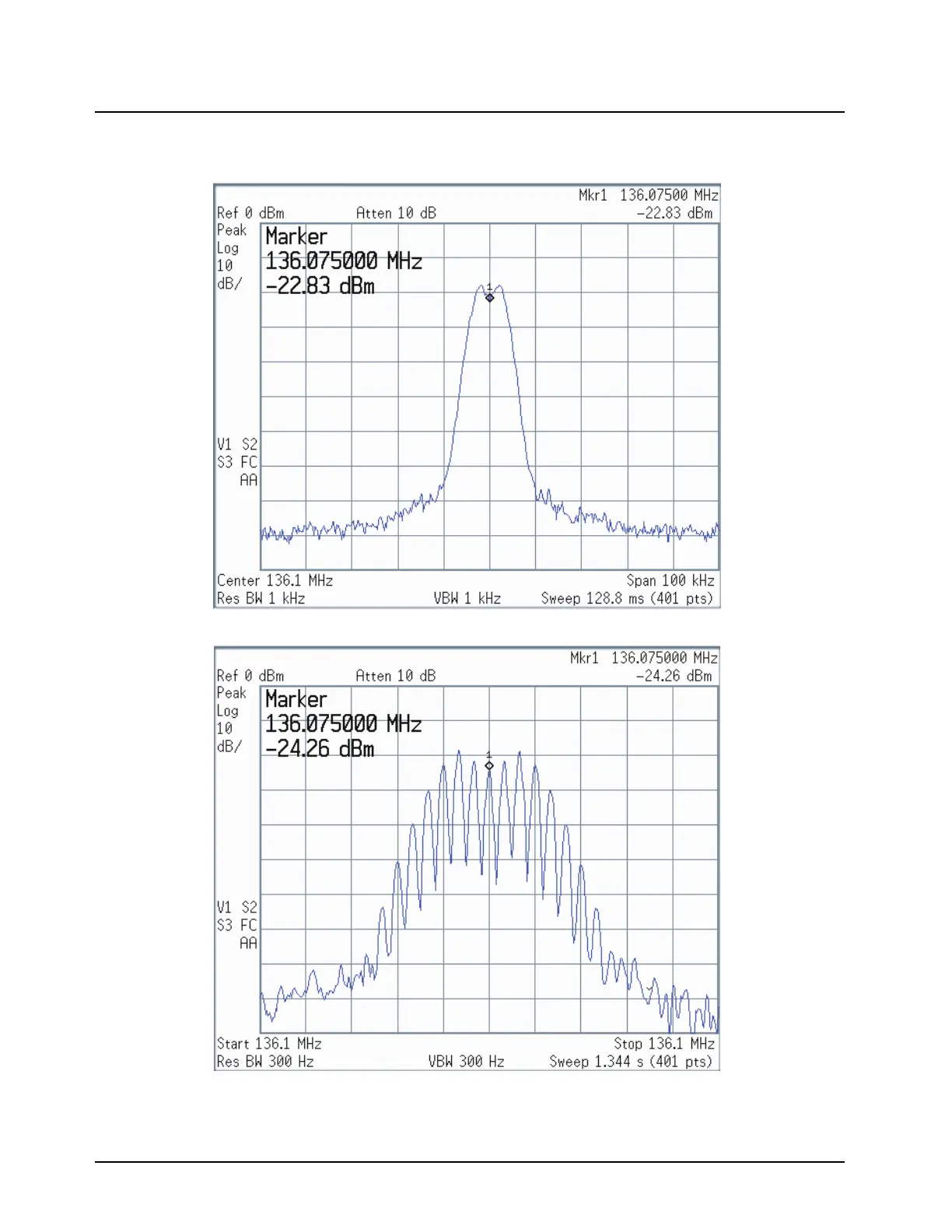

7.1-6 VHF Troubleshooting Waveforms: PP1 Antenna Input
7.1.5 PP1 Antenna Input
Probe point: J101, pin 5.
Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
