motortronics VMX-18-BP - Dimensions

Basic Installation and Operation Guide VMX Series Digital Solid State Soft Starters 18 – 1000A
Page 7 of 27
Dimensions
Overall Mounting
Enclosure Model Number
A B C D E F
VMX -18-BP
through
VMX -48-BP
8.00 8.00 6.68 7.63 6.75 0.22
VMX -62-BP
through
VMX -112-BP
13.50 8.00 6.68 12.75 6.75 0.38
VMX -150-BP and
VMX -160-BP
18.71 8.00 6.68 17.75 6.75 0.38
VMX -210-BP
through
VMX -450-BP
17.11 15.15 11.23 11.00 0.40
VMX-550-BP
CF CF CF CF CF CF
VMX-718-BP
through
VMX-900-BP
CF CF CF CF CF CF
Panel (open) with
integral bypass
contactor
VMX-1000-BP
CF CF CF CF CF CF
Under 210A, use –BP version as shown above
Panel (open), fan
cooled, without
bypass contactor
VMX-210-P
through
VMX-1000-P
20.00 12.50 9.05 19.00 11.00 0.40

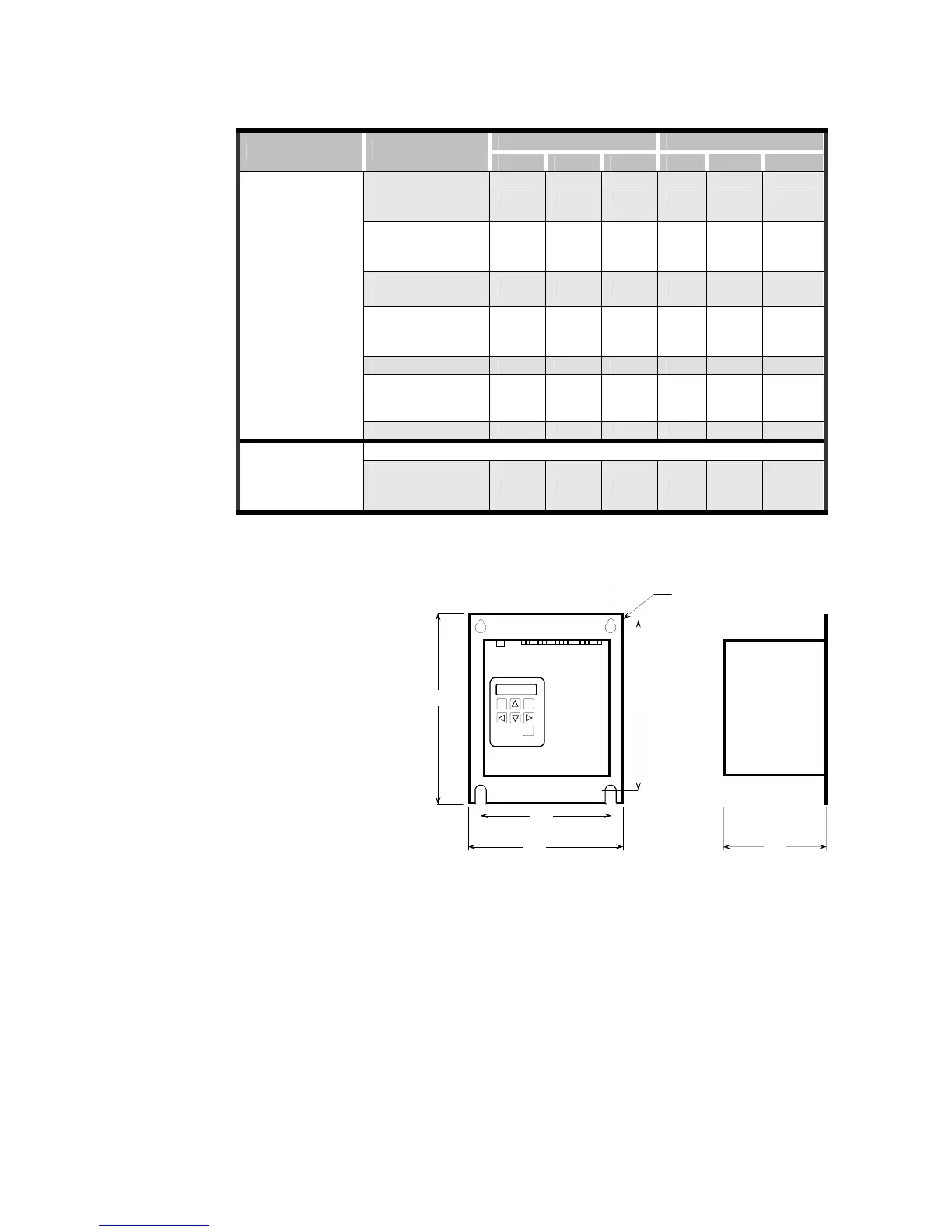

Table 2: VMX Dimensions ( subject to change)
Figure 1: VMX Dimensions
Note: CF = Consult factory
Fdia.
D
E
B
A
C
~ ~
~
