10mm
8
8
To determine the height distance
from the mantel, reference step 5
on page 6.
Insert Concrete Anchor (I)
68mm
φ10mm
2

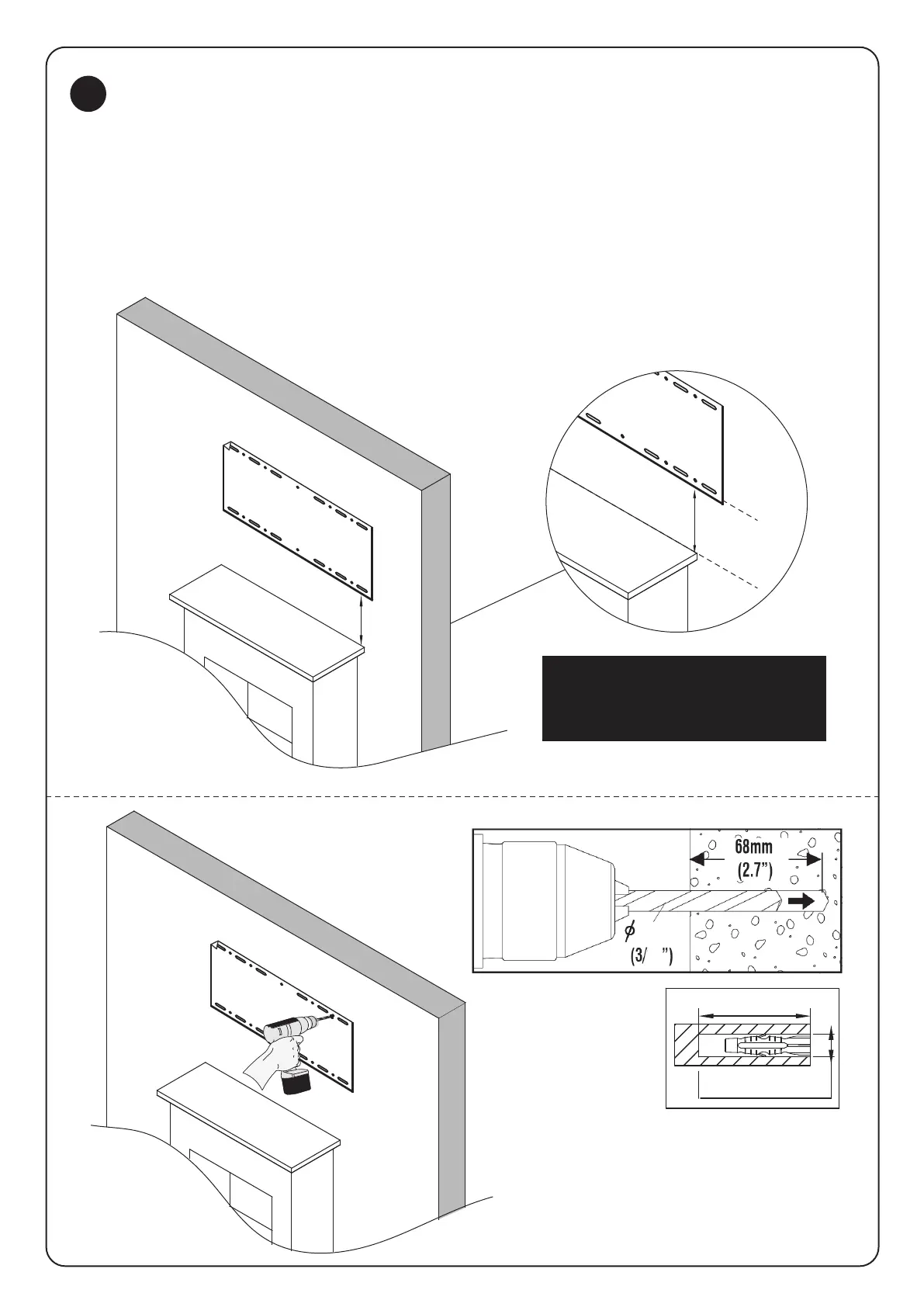

Concrete/Brick Installation Option
Determine the placement of the template by referencing the guide on page 6, step 5.
Use a bubble level to ensure straightness, then ape or hold the Template (#II) in the final
mounting location and drill 6 pilot holes, all 4 corners and 2 in the middle. Drill the pilot
holes using a 3/8in drill bit to a depth of 2.7”.
To Next Page
