Mount-It! MI-384L - Page 9

9
3
-a
4
5mm
C1
C5
C3

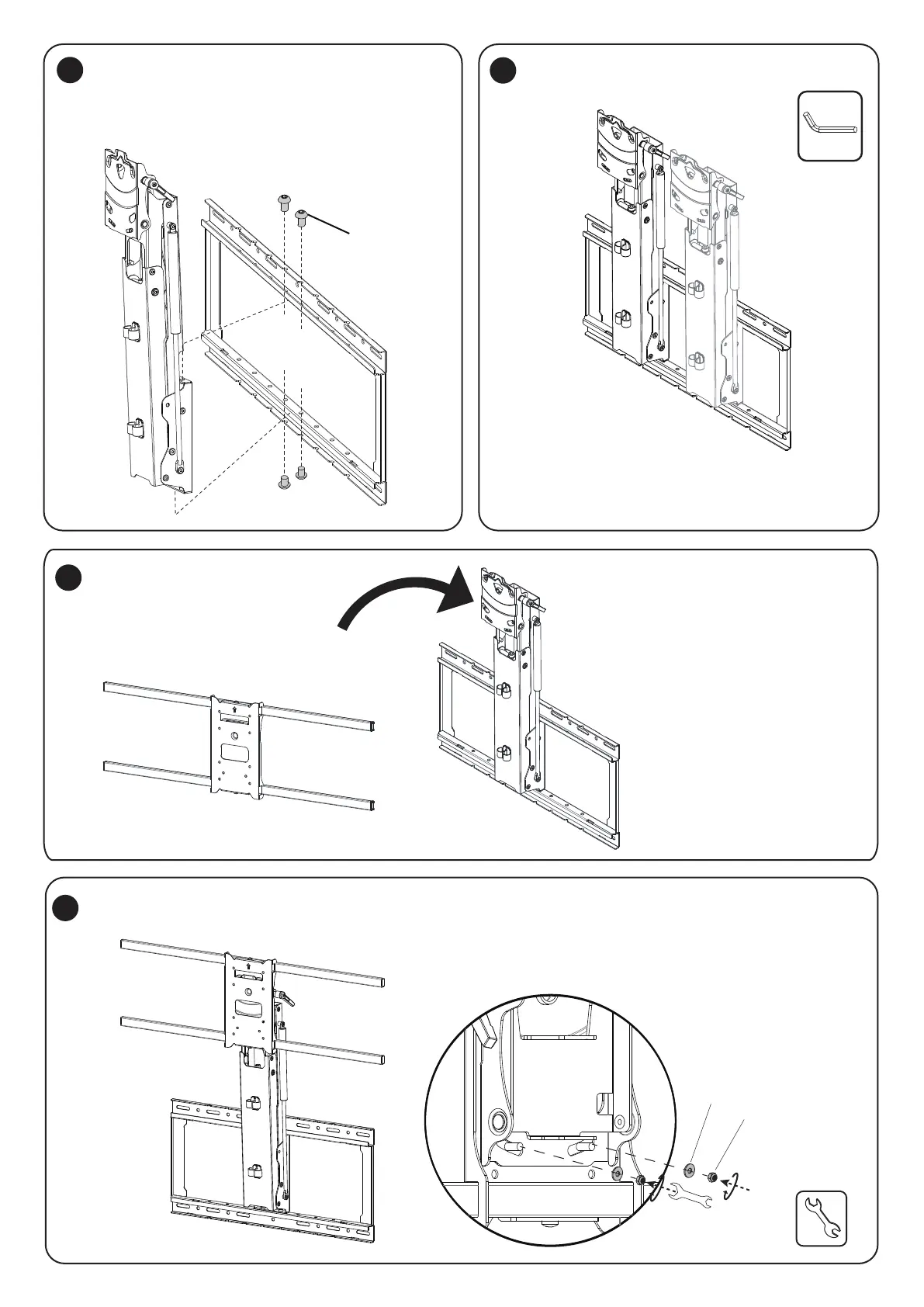

Connect the Spring Arm (#CC) to the Wall
Plate (#AA) using the Bolts (#C3)as shown
here.
Position the Spring Arm left or right on the Wall Plate
as needed by attaching the spring arm in the required
location.
3
-b
Optional: Adjust the Horizontal Position of
the Spring Arm
Hang the VESA Plate
5
Secure the VESA Plate
Hang the VESA Plate (#BB)
on to the end of the Spring Arm.
Secure the VESA Plate to the end of the
Spring Arm using the Washers (#C1) and Nuts (#C5)
on the two lower bolts protruding through the end
of the Spring Arm.
