14
EN
4.8 CUTTING HEIGHT ADJUSTMENT LEVER
There are seven positions for this lever (shown as «1» to «7» on the label), which corre-
spond to various heights between 3 and 8 cm.
–To go from one height to another, press the release button at the end of the lever.
4.9 LEVER FOR TIPPING THE GRASS-CATCHER ( if present)
This pull-out lever tips and empties the grass-catcher. This means less work for the
operator.

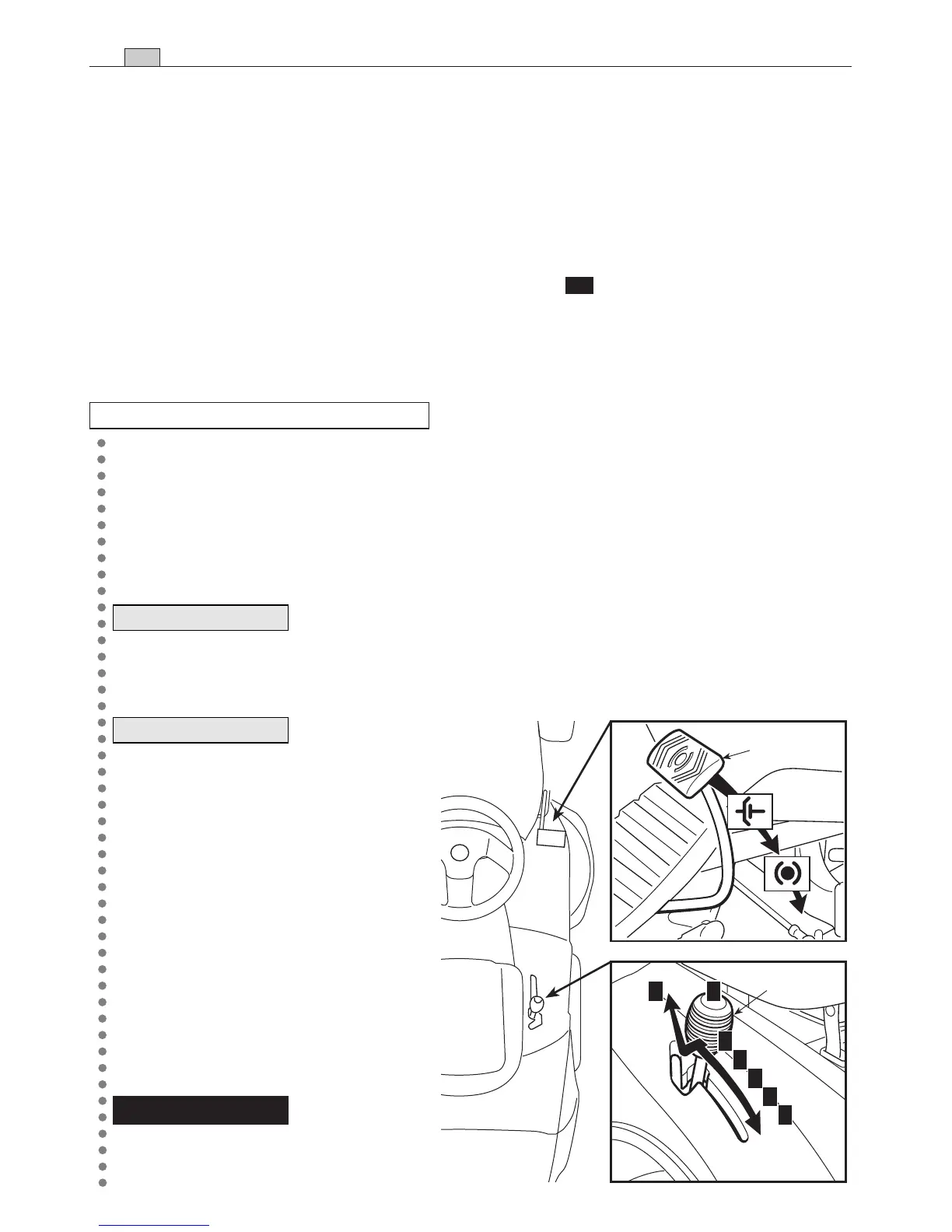

4.21 CLUTCH / BRAKE PEDAL
This pedal has two functions: during the first part of its travel it acts as a clutch,
engaging and disengaging drive to the wheels, and in the second part it acts as a
brake on the rear wheels
Do not keep the pedal halfway between clutch engagement or
disengagement, as this can cause overheating and damage the transmission belt.
When the
machine is moving, keep your foot
off the pedal.
4.22 SPEED CHANGE LEVER
This lever has seven positions for
the 5 forward speeds, the neutral
position «N», and reverse «R».
To go from one speed to another,
press the pedal (4.21) halfway and
shift the lever as shown on the
label.
Only shift into
reverse when the machine has
stopped moving.
!
WARNING!
NOTE
IMPORTANT
➤
Mechanical transmission
➤
CONTROLS AND INSTRUMENTS
