MCTC manual
3 General operation
The Interface

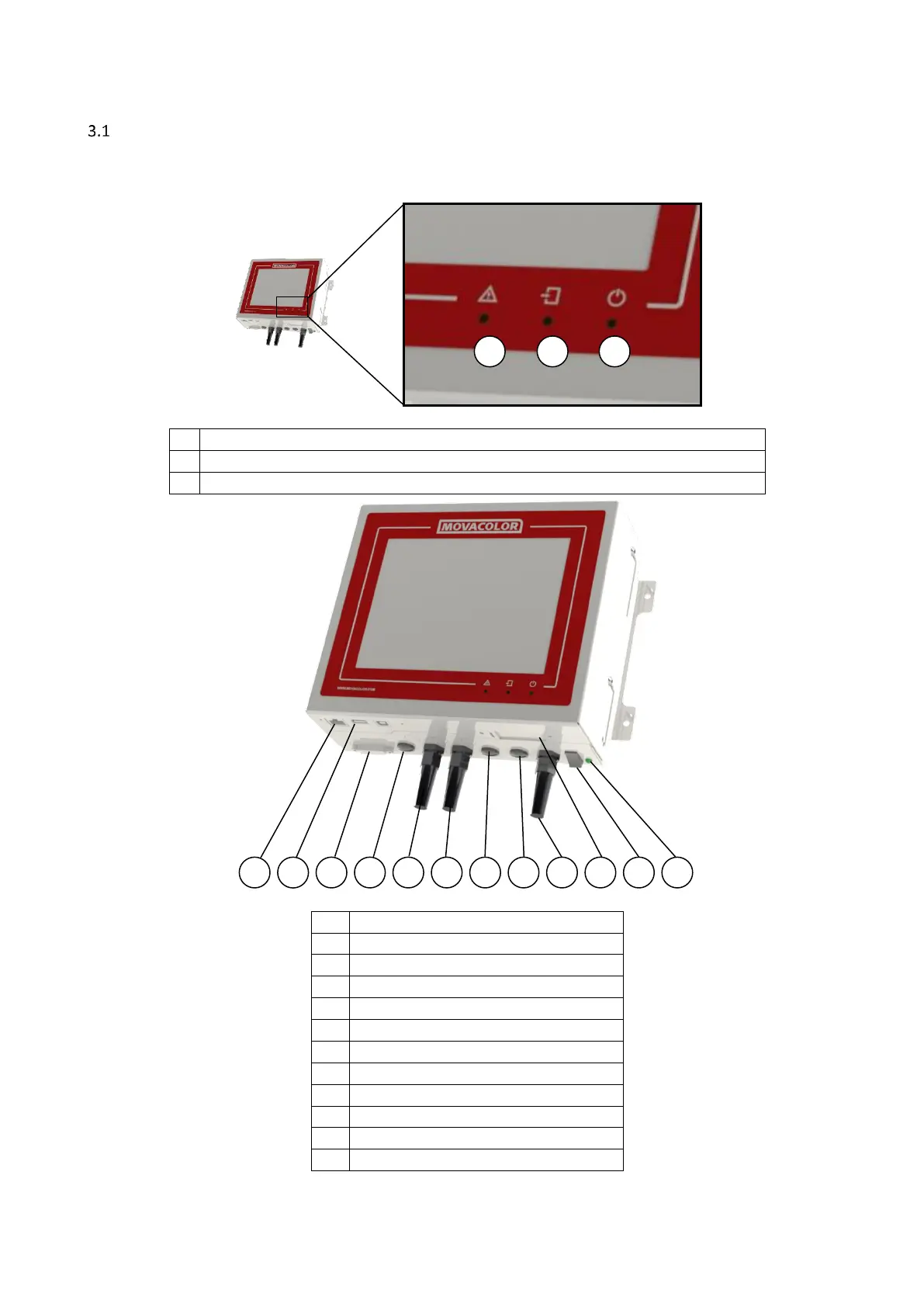

3.1.1 MCTC Touchscreen
1.
Alarm LED
2.
Input signal LED
3.
Start LED (blinking = standby / waiting for start input, steady = motor running)
1.
External communication / network
2.
USB Port
3.
Load cell
4.
CAN bus cable
5.
Start input cable
6.
Motor cable
7.
Output for: Alarm, Warning, Running
8.
Valve output for hopper loader
9.
Mains power cable
10.
Optional communications
11.
Mains power switch
12.
Main power indicator
3
2
1
2
3
4
5
6
7
11
9
8
10
1
12
