ELLIPTICAL
Description of the parts contained in the package (elliptical)
-01 Electronic Module - 01 Chassis in metal tube- 01 Fairing fixed to the chassis- 01 Magnetic
brake set inserted in the fairing and fixed to the chassis- 01 split support column for the
electronic module, with lower articulated arms, and 02 rubberized upper with 02 sensors for
heart rate- 02 candle-feet- 02 pedals - 02 shoes- 02 fixed feet with 02 levelers each- 02 sets of
covers for the upper finishing of the articulated arms in 02 parts- 02 sets of covers for the
lower finishing of the arms articulated in 02 parts- 02 sets of covers of the pedal finish in 02
parts- 05 Screws- 01 Combined wrench - 01 Allen wrench.
Asembly and installation
To assemble your equipment, proceed as follows:
1) Identify the location where the equipment will be installed, taking into account the fact
that it must always maintain a minimum distance of 70 cm in relation to objects nearby in the
surroundings;
2) The floor must be regular, flat and free of moisture, a precautionary measure that will
prevent accidents when leaving the appliances; arrange all parts of the equipment on the
floor, identifying them to start the assembly, as described below:
1
2

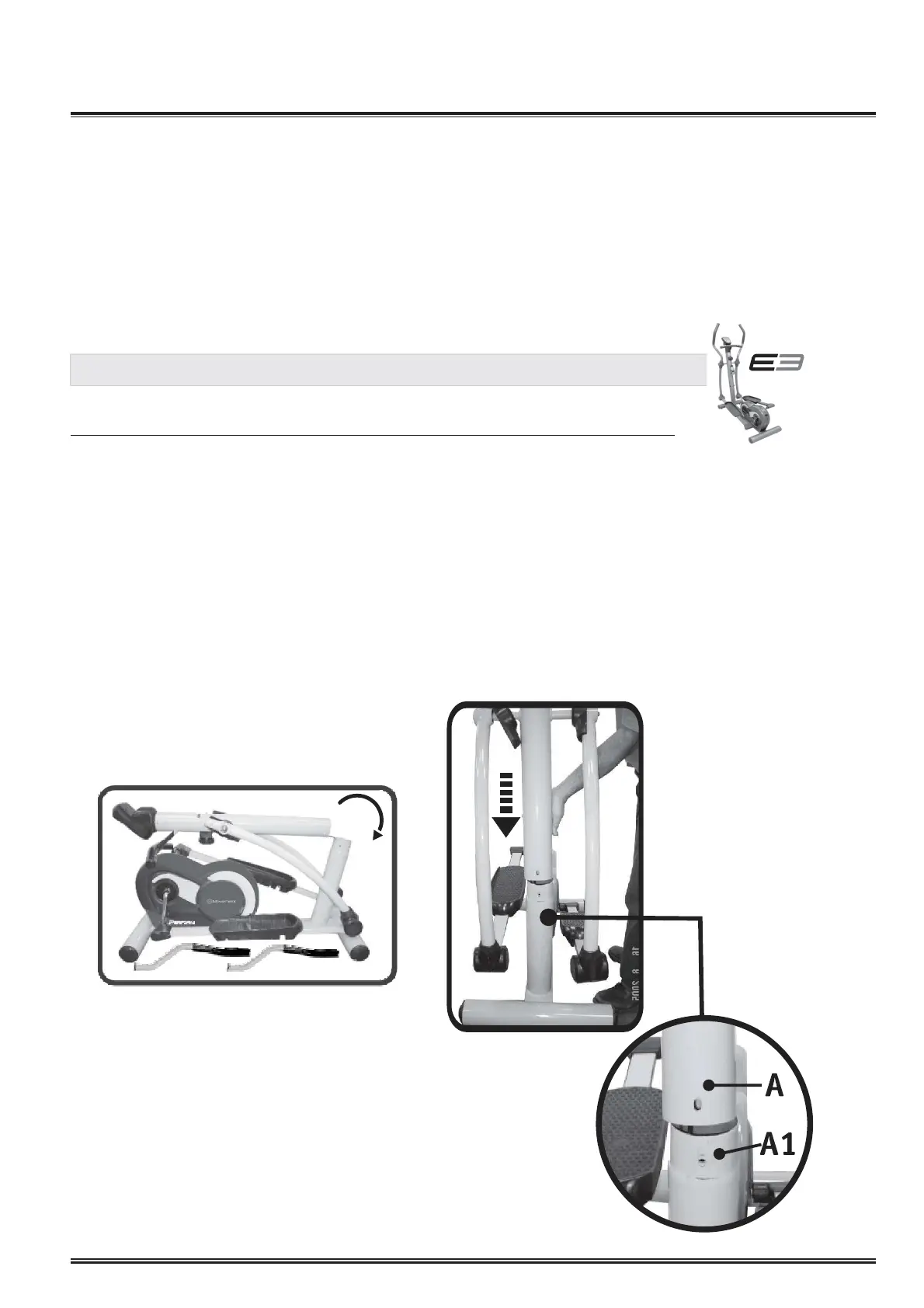

Remove the equipment from
the box and arrange the loose
parts to identify them.
Fit the support
column tube A
to point A1.
