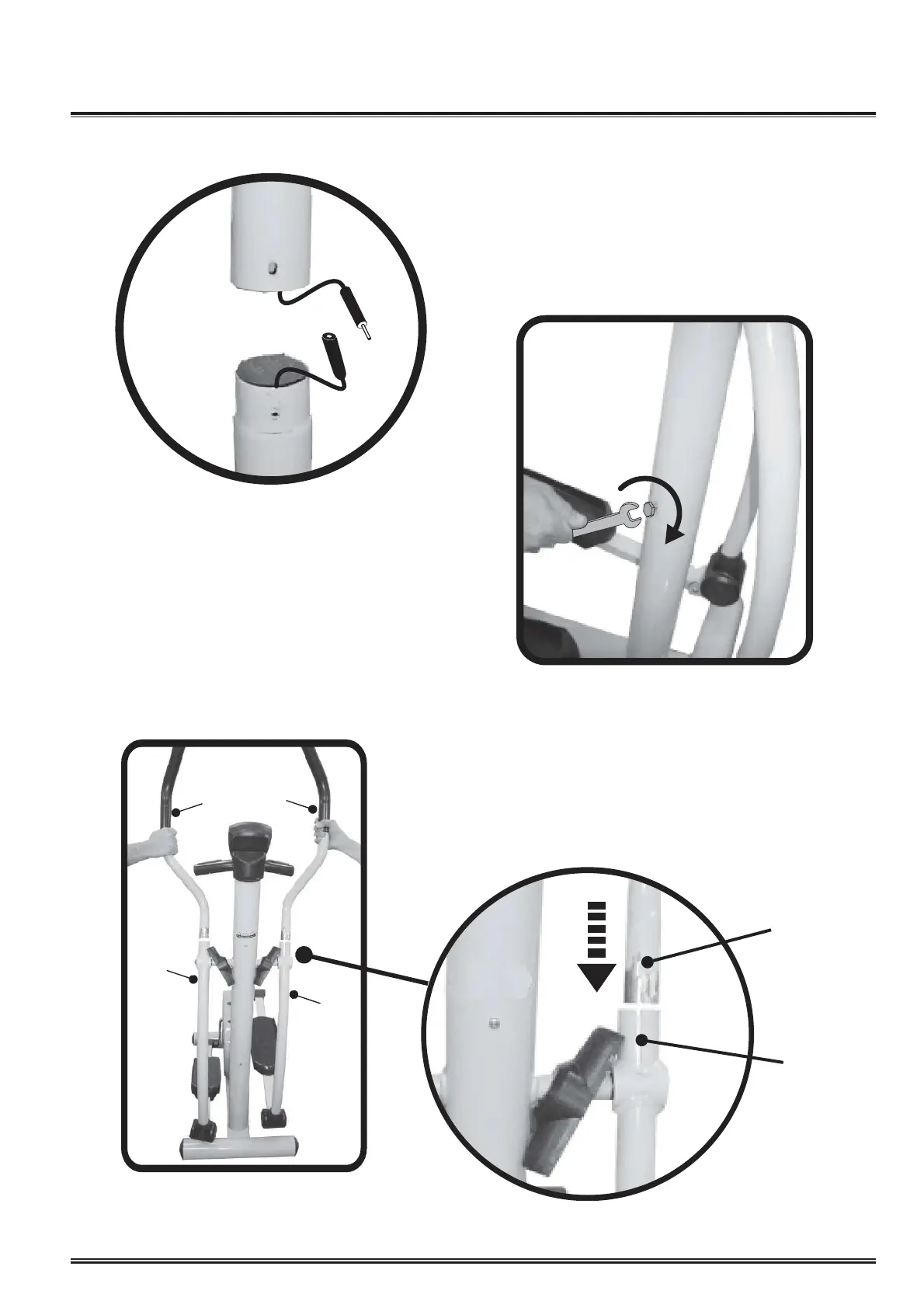

Before joining and tightening the column of
the electronic module, it is necessary to
connect the panel cable and place it into the
column.
Secure the A / A1 assembly
with the available screw
and combination wrench.
Fit the rubberized arms B and B1 to the
points C and C1 of the articulated arms.
