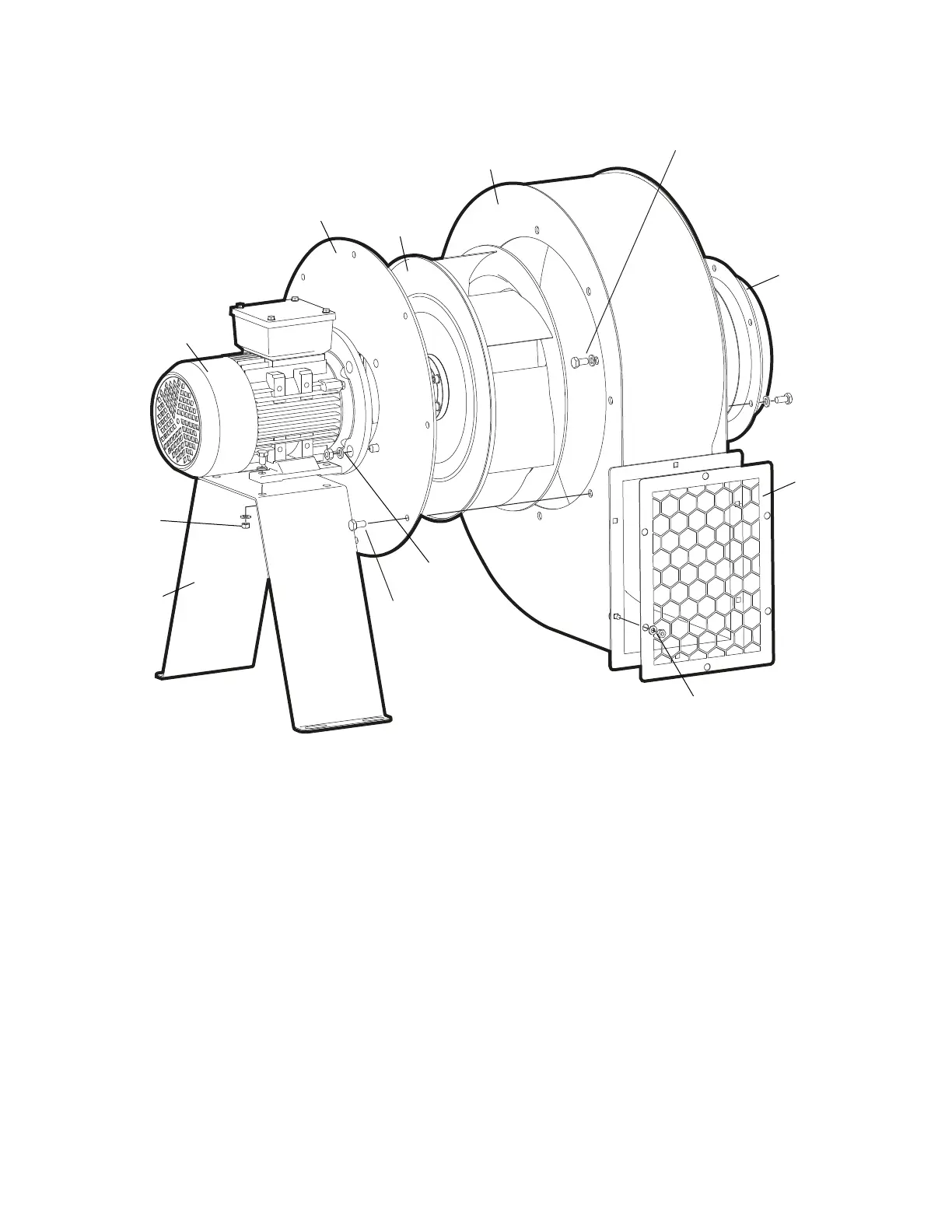

Movex FB Series - Exploded View

To Next Page

To Previous Page

1 a,b,c

2 a,b,c

7 a,b,c

6 a,b,c

4 a,b

3 a,b

1. Bracket 1 a. Bolt 4 a. Bolt

2. Motor 1 b. Washer 4 b. Washer

3. Motor plate 1 c. Nut 6 a. Bolt

4. Impeller 2 a. Bolt 6 b. Washer

5. Fan housing 2 b. Washer 6 c. Rivet nut

6. Inlet 2 c. Nut 7 a. Carriage bolt

7. Outlet grang 3 a. Bolt 7 b. Washer

3 b. Washer 7 c. Nut

Technical speciﬁcaon

Model Output Voltage Frequency Current Motor speed Cos Weight *Contactor *Protecve

with overcurrent motor

protecon switch

FB 076-1 0.7 hp 115 V 1N~ 60 Hz 7.2 A 3340 rpm 0.93 49 lb SKO 100-7/115 SMB 100

FB 106-1 1.0 hp 115 V 1N~ 60 Hz 10 A 3360 rpm 0.94 66 lb SKO 130-7 /115 SMB 140

FB 206-1 2.0 hp 115 V 1N~ 60 Hz 20 A 3360 rpm 0.99 101lb SKO 240-15/115 SMB 250

FB 076-3 0.7 hp 208 V 3~ 60 Hz 2.45 A 3440 rpm 0.81 48 lb SKO 40-5 /115 SMB 40

FB 106-3 1.0 hp 208 V 3~ 60 Hz 4.10 A 3360 rpm 0.66 66 lb SKO 60-5/115 SMB 63

FB 206-3 2.0 hp 208 V 3~ 60 Hz 6.20 A 3470 rpm 0.79 101lb SKO 80-5/115 SMB 100

FB 406-3 4.0 hp 208 V 3~ 60 Hz 11.7 A 3350 rpm 0.81 150lb SKO 180-10/115 SMB 140

FB 706-3 7.0hp 208 V 3~ 60 Hz 19.4 A 3535 rpm 0.88 227lb SKO 240-20/115 SMB 250

FB 1506-3 15 hp 208 V 3~ 60 Hz 38.9 A 3550 rpm 0.86 377lb

FB 076-3 0.7 hp 230 V 3~ 60 Hz 2.20 A 3440 rpm 0.81 49lb SKO 40-5/115 SMB 40

FB 106-3 1.0 hp 230 V 3~ 60 Hz 3.70 A 3360 rpm 0.66 66lb SKO 60-5/115 SMB 63

FB 206-3 2.0 hp 230 V 3~ 60 Hz 5.60 A 3470 rpm 0.79 101lb SKO 80-5/115 SMB 100

FB 406-3 4.0 hp 230 V 3~ 60 Hz 10.6 A 3530 rpm 0.81 150lb SKO 130-10/115 SMB 140

FB 706-3 7.0 hp 230 V 3~ 60 Hz 17.6 A 3535 rpm 0.88 227lb SKO 240-15/115 SMB 230

FB 1506-3 15 hp 230 V 3~ 60 Hz 35.2 A 3550 rpm 0.86 377lb

FB 076-3 0.7 hp 460 V 3~ 60 Hz 1.10 A 3440 rpm 0.81 49lb SKO 16-5/115 SMB 16

FB 106-3 1.0 hp 460 V 3~ 60 Hz 1.85 A 3360 rpm 0.66 66lb SKO 25-5/115 SMB 25

FB 206-3 2.0 hp 460 V 3~ 60 Hz 2.80 A 3470 rpm 0.79 101lb SKO 40-5/115 SMB 40

FB 406-3 4.0 hp 460 V 3~ 60 Hz 5.30 A 3350 rpm 0.81 150lb SKO 80-5/115 SMB 100

FB 706-3 7.0 hp 460 V 3~ 60 Hz 8.80 A 3535 rpm 0.88 227lb SKO 130-7/115 SMB 140

FB 1506-3 15 hp 460 V 3~ 60 Hz 17.6 A 3550 rpm 0.86 377lb SKO 240-15/115 SMB 230
