5.2 ADJUST HANDLE TO BODY HEIGHT (DYM1676CD-3/ DYM1678D3/ DYM162002 only)
1. Open the two quick release skewers to unfold the upper handlebar .
2. Rotate the upper handle centered in the angle adjusting to an ergonomic height.
3. Push the locking lever closed to connect the lower handle and the upper handle.

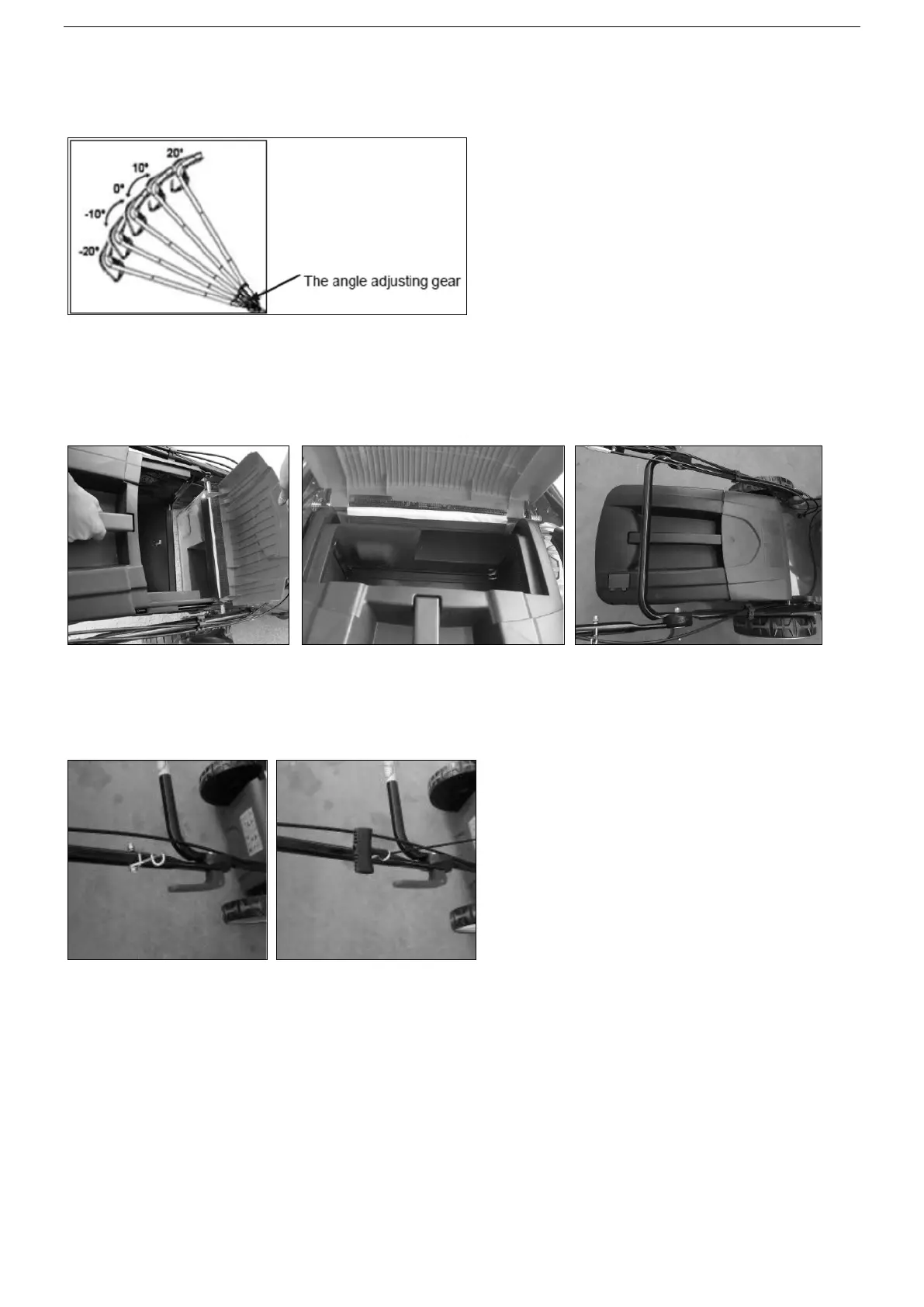

Figure 3
5.3 MOUNTING AND DISMOUNTING THE GRASS CATCHER
1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower.
2. To remove: grasp and lift rear cover, remove grass catcher.
Fig.4A Fig.4B Fig.4C
5.4 STARTER HANDLE
For: DYM1676CD-3/DYM1678D3/DYM162002
Move the starter handle from the engine to the rope guide.
Fig.5A Fig.5B
5.5 HEIGHT OF CUT
Apply outward pressure to disengage lever from rack. Move lever forward or back to adjust height.
(Fig.6A/6B)
