Mowox PM5160SEHW User Manual

9
5. ASSEMBLY
5.1 FOLDING HANDLE
1. Fix the lower handlebars into the unit body with locking knobs, bolts and bolts as Fig. 2A,/Fig.2B/Fig2C
shown.
2. Fix the lower handlebar into the unit body with a suitable spanner (Fig. 2D). (Only for DYM1560EDQ)
3. Lift the two locking levers to release the upper handlebars for folding. (Fig.2E/2H)
4. Push the locking lever closed to lock the handlebars in the operating position. (Fig.2F/2I)
5. Adjust the tension by turning the lock nut with a suitable spanner. (Fig.2G)
6. Attach the cable-clamp to the position shown and then attach the cable. (Fig.2J/2K)

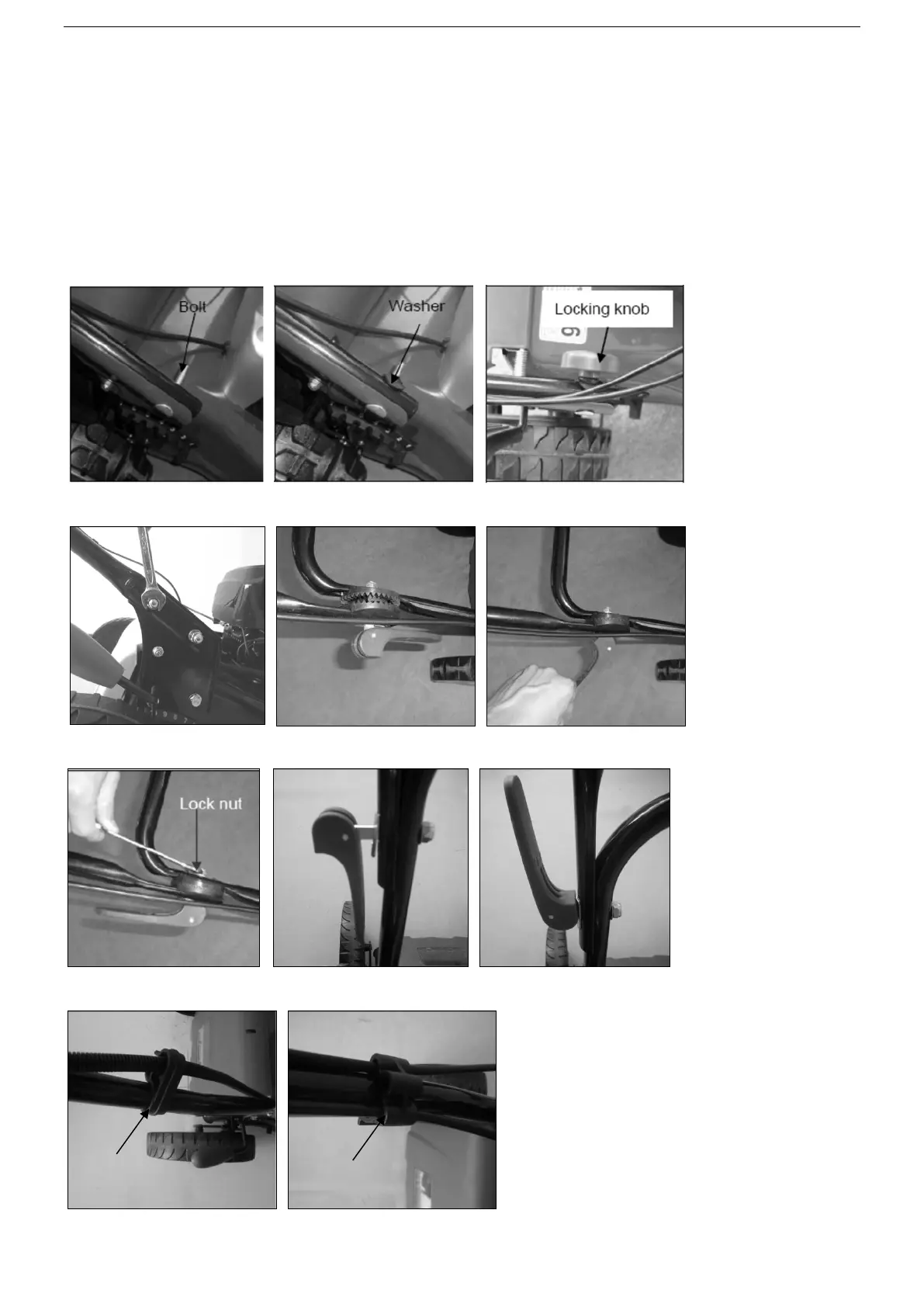

Fig.2A Fig.2B Fig.2C
Fig.2D (for DYM1560EDQ) Fig.2E Fig.2F
Fig.2G Fig.2H (for DYM1560EDQ) Fig.2I (for DYM1560EDQ)
Fig 2J Fig.2K
Cable clamp
Cable clamp
