NPort 5000 Series User Manual

142

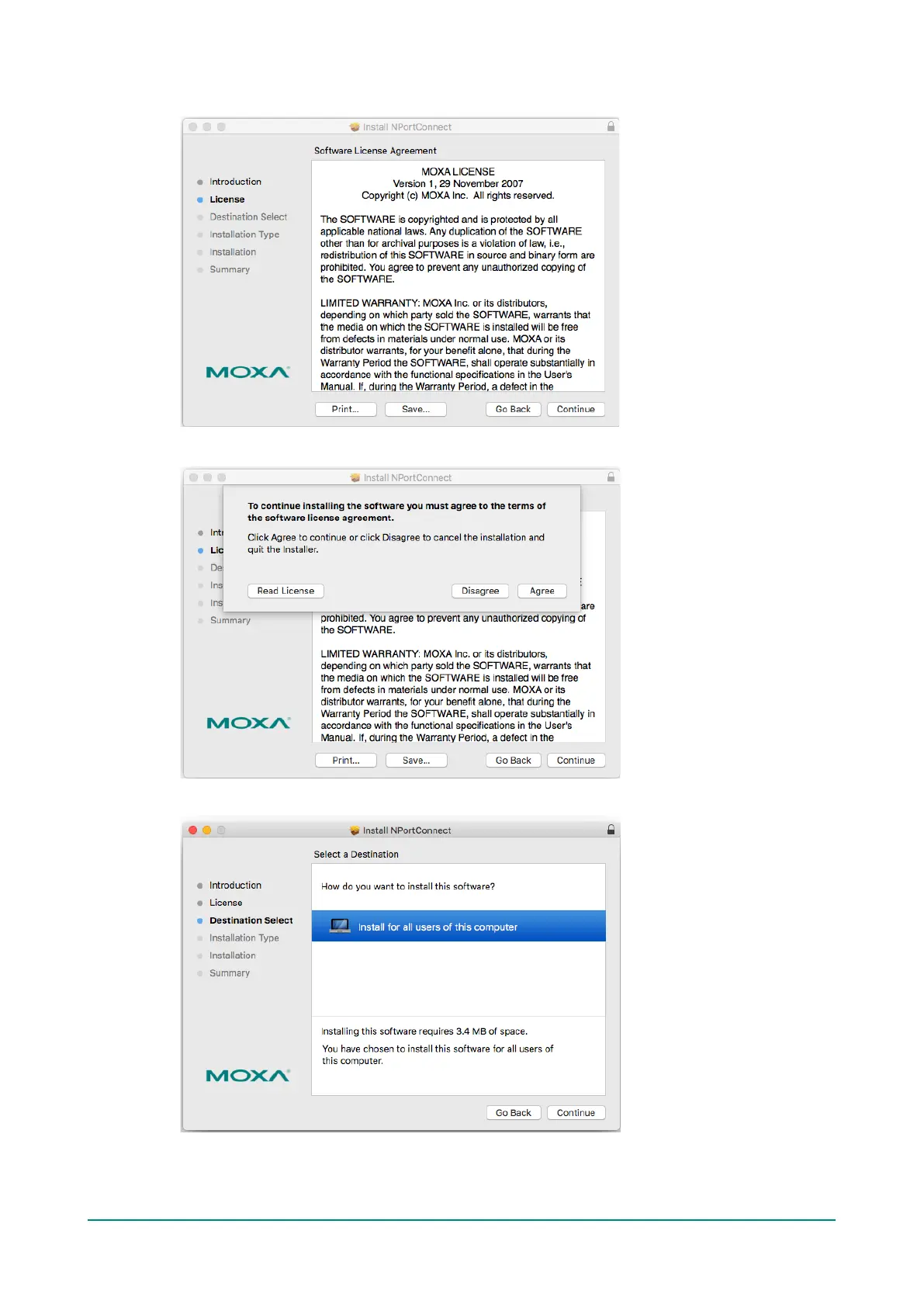

2. Execute the installer package ‘moxa-macOS-tty-drivers-for-macOS-10.12-or-later-v1.0.pkg’.

3. Press Continue when the Introduction window opens to proceed with installation.

4. Press Continue in the Destination Select window
