Moxa Technologies NPort 5230 Quick Installation Guide

– 4 – – 5 – – 6 –
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
 2012 Moxa Inc. All rights reserved.
5. Software Installation Information
To install NPort Administration Suite, insert the NPort
Document & Software CD into your computer’s CD-ROM drive.
Once the NPort Installation CD window opens, click on the
Installation button, and then follow the instructions on the screen.
To view detailed information about NPort 5200 Administration
Suite, click on the Documents button, and then select “NPort
5200 Series User’s Guide” to open the pdf version of this user’s
guide. The PComm Lite program is also included in the
Documentation & Software CD free of charge. Install PComm
Lite to use the Serial Console for configuring the IP address for
the first time.
6. Pin Assignments and Cable Wiring—
NPort 5230/5230-T
Terminal Block Wiring
Note:
NPort 5232/5232I/5232-T/5232I-T have 2 RS-422/485 ports. The
pin assignments are the same as NPort 5230/5230-T’s port 2.
Refer to the “NPort 5200 Series User’s Manual” for more details.
7. Pin Assignments and Cable Wiring—
NPort 5210/5210-T
RJ45 (8-pin) Connector Pinouts
8-Pin Signal
1 DSR
2 RTS
3 GND
4 TxD
5 RxD
6 DCD
7 CTS
8 DTR
Ca
ble Wiring (RS-232)

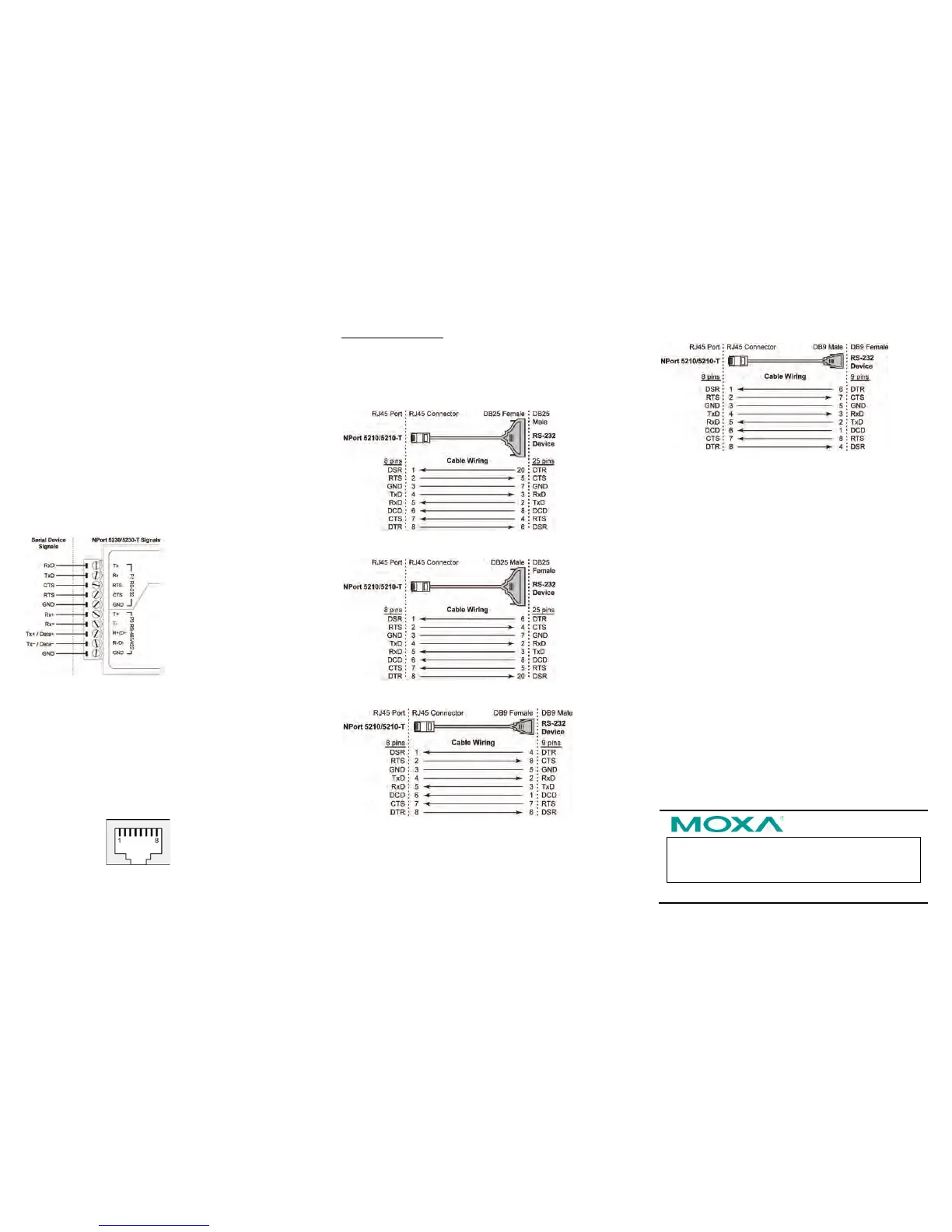

Four cables are available as optional accessories that can be used
to connect NPort 5210/5210-T to RS-232 serial devices. For your
convenience, we show precise cable wiring diagrams for each of
the four cables.
RJ45 (8-pin) to DB25 Female (Cable Name: CBL-RJ45F25-150)
RJ45 (8-pin) to DB25 Male (Cable Name: CBL-RJ45M25-150)
RJ45 (8-pin) to DB9 Female (Cable Name: CBL-RJ45F9-150)
RJ45 (8-pin) to DB9 Male (Cable Name: CBL-RJ45M9-150)
8. Specifications
Power requirements
NPort 5210/5210-T: 12 to 48 VDC, 325 m
A at 12V (max.)
NPort 5230/5230-T: 12
to 48 VDC, 325 mA at 12V (max.)
NPort 5232/5232-T: 1
2 to 48 VDC, 280 mA at 12V (max.)
NPort 5232I/5232I-T: 1
2 to 48 VDC, 365 mA at 12 V (max.)
Operating temp.
Fo
r standard models
For -T models
0 to 55◦C (
32 to 131◦F)
-40 to 75◦C (-40 to 167◦F)
Operating humidity 5 to 95% RH
Dimensions (W×D×H)
NPort 5210/5230/5232/
5210-T/5230-T
/5232-T
(including ears)
90 × 100.4 × 22 mm
(3.54 × 3.95 × 0.87 in)
NPort 5210/5230/5232/
5210-T/5230-T
/5232-T
(without ears)
67 × 100.4 × 22 mm
(2.64 × 3.95 × 0.87 in)
NPort 5232I/5232I-T
(including ears)
90 × 100.4 × 35 mm
(3
.54 × 3.95 ×1.37 in)
NPort 5232I/5232I-T
(without ears)
67 × 100.4 × 35 mm
(2
.64 × 3.95 × 1.37 in)
Surge protection 15 KV ESD for serial port
Magnetic isolation 1.5 KV for Ethernet
Power line protection 4 KV Burst (EFT), EN61000-4-4
2
KV Surge, EN61000-4-5
Regulatory approvals FCC Class A, CE Class A, UL, CUL, TÜV

Moxa Technologies NPort 5230 Specifications

General

Isolation	1.5 kV
Certification	CE, FCC, EN
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	Windows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, TÜV, DNV

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	67 x 100.4 x 22 mm
