Mount the Pedals:
Use the screws and wrench from the accessory pack to attach the throttle and brake pedals to
the base. Adjust the pedal positions as needed. Route the pedal cables through the base and
connect them to the control box at the bottom. (Avoid pulling or pressing on the cables too hard
during installation.)
Pedal Installation
03

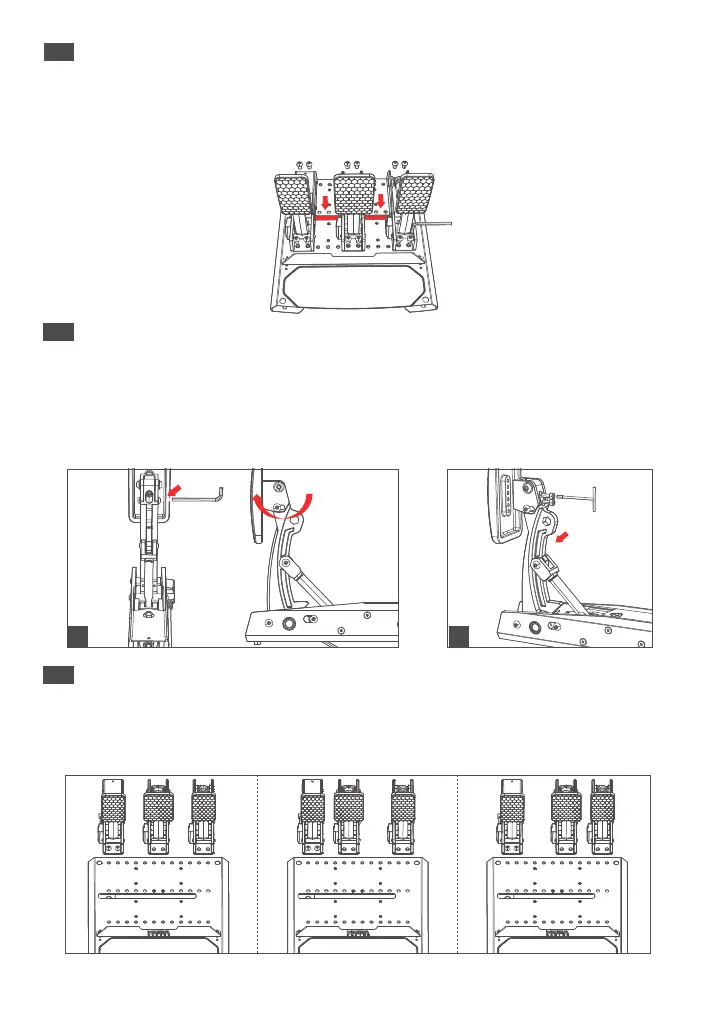

1. Adjusting Pedal Face Angle: Use a wrench to loosen the screws on both sides, adjust the
pedal face to the suitable angle, then tighten the screws on both sides (see Figure 1).
2. Adjusting Pedal Face Height: Use the T-shaped wrench to remove the screws (see Figure 2),
adjust the pedal face height, then tighten the screws. If the blue glue on the screws wears off
after multiple adjustments, consider replacing the screws for better stability.
Pedal Face Adjustment
04
Adjust Pedal Spacing
Move the pedals left or right to adjust the spacing between them. After choosing the correct
holes, secure the screws. This method works for the throttle, brake, and clutch pedals.
Pedal Spacing Adjustment
05
