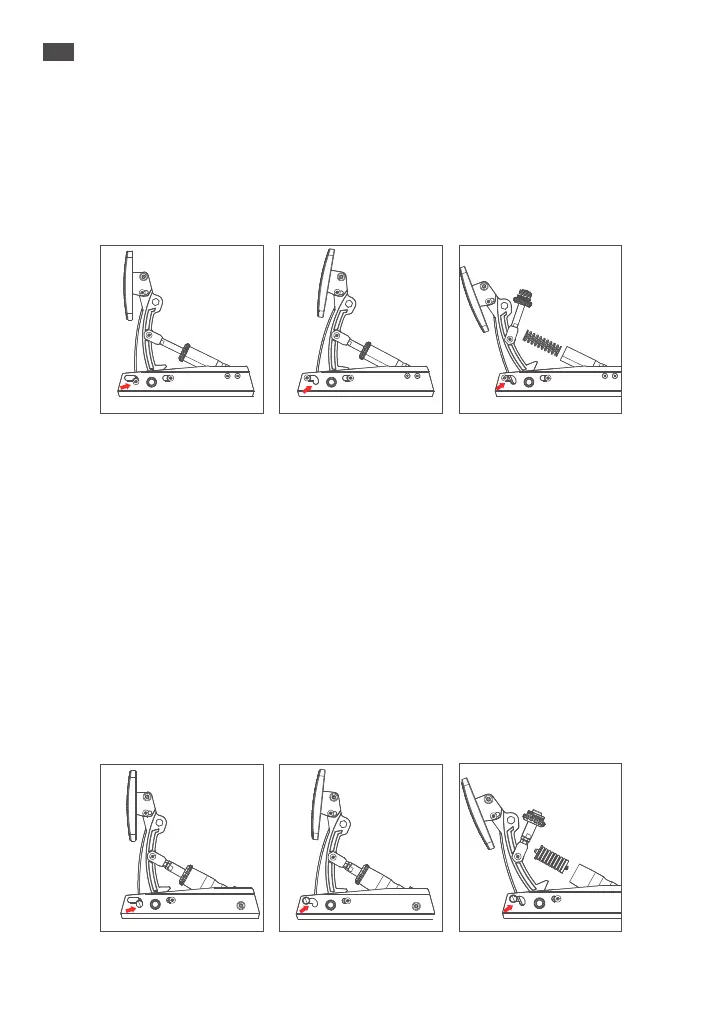

2. Brake Damping Block Replacement:
The damping block (black and yellow ) out of factory is medium hardness, the gray is
softer, and the red is harder. The brake sleeve comes with 6 yellow and 2 grey damping
blocks out of factory. The accessory pack provides 8 red, 2 yellow, and 2 grey damping
blocks. For more details on the different colors and their applications, please refer to the
following pages. To replace, loosen the 2 knurled limit shaft screws by hand, press the
pedal to a slight angle( may require foot pressure due to damper stiffness) and lift the
front limit shaft away from the pedal to allow extra forward pedal travel. release the
pedal, and remove the front cover. Replace the damping blocks (install 9 blocks in any
hardness combination), then reassemble the front cover and pressure shaft. If the
pressure shaft doesn't fit, rotate it to align the internal rod. Press the pedal and reposition
the front limit shaft. For the red damping block, rotate the pressure shaft counterclock-
wise to ease reassembly.
08
1. Throttle Spring Replacement:
Loosen the 2 knurled limit shaft screws by hand, press the pedal to a slight angle and lift the
front limit shaft away from the pedal to allow extra forward pedal travel. Release the pedal,
unscrew the sleeve cover, remove the existing spring, and replace it with the red spring from
the accessory pack for a stronger feel. Ensure the spring is centered to avoid noise. Reassem-
ble the sleeve cover, press the pedal again, reposition the front limit shaft, and tighten the
knurled screws by hand.
