Moza R9 - Product Specifications and Interface; Product Description; Wheel Base Interface Guide; Product Dimensions

4 5
Product Description
MOZA R9 Direct Drive
Wheel Base
Dashboard port

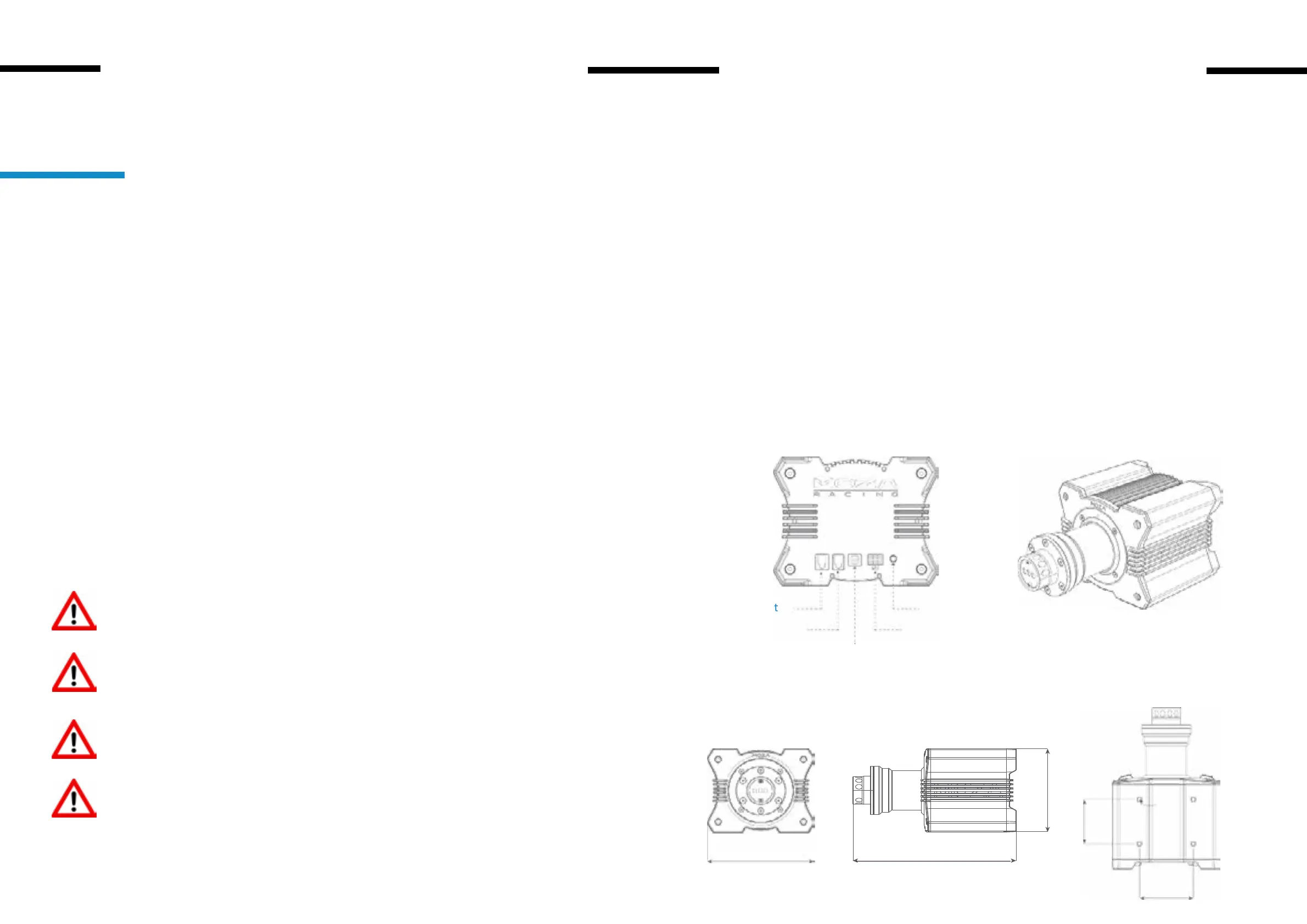

Introduction to the Wheel Base interface
E-stop switch port
USB-B(PC Connection)
Power port
Power Switch
Dimensions
156,8mm 239,7mm
78,7mm
66mm
M6
124mm
Thisproducthasahighforcefeedbackstrengthandsmallparts.Childrenareprohibitedfromuse
withoutparentalguidance.
· Keep away from loose clothing and easily tangled objects such as hair, cables, skirts, etc.
· MOZA R9 is ready to use right out of the box. Firmware is updated to the latest version at the factory.
For more information on software updates, visit the MOZA website.
· This manual is for demonstration purposes only and cannot be used for marketing purposes. It is a general
description of a single product (including related series of products). Please refer to the actual product when
purchasing.
·The above product pictures and content are for demonstration purposes only. Actual product may differ
slightly in external design (including but not limited to appearance, color, size) and content display
(including but not limited to background, UI, pictures). Please check the actual product for reference.
· The above test data are all from the MOZA test laboratory, and may not reect the actual performance
factors due to usage conditions and environmental reasons.
· The above contents, such as descriptions, pictures, etc., are subject to change. MOZA may adjust the
relevant content according to the performance and specications of the actual product to provide more
accurate product information. Product availability may uctuate due to unforeseen issues during batch
processing or delivery. In this case, MOZA may change the relevant descriptions and pictures,
if necessary without prior notice, please check the relevant information through ofcial channels.
Support platform: PC
Drive form: direct drive
Maximum turning angle: innite circle
Shell material: aviation grade aluminum alloy Shell
Maximum torque: 9 N · m
Maximum power: 180W
Input voltage: 110V~220V AC —> 36V DC USB
Refresh rate: 1000Hz
Dock indicator: support APP
function: support
Quick release: support
Interface: structure, power, data, emergency stop, display
Accessories: manual and warranty card, power supply, data cable, tool kit
Fixing method: 4 holes at the bottom, special bracket supports
(optionnal) angle adjusment and side xing, desktop clamping
PLUGTHEWHEELINTOANELECTRICALOUTLET:PLEASEREAD!
Neverplugthepowersupplyintoanelectricaloutletwithadifferent
voltage!Thepowersupply’svoltageisindicatedonthelabellocated
onthepowersupplytransformer.
Neverconnectapowersupplyotherthantheoriginalpowersupplyto
thebase,eveniftheconnectoriscompatible!
Beforeinstallingandusingthisproduct,pleasereadthismanualwith
attention,andsaveitforlaterreference.
