3. Assembling
3.1 Assembling instrucons
3.2 Installaon of „BELL CLUTCH“ Coupling
Table of distances coupling halves
1
2
3
5
6
7
8
5
8
4
Generator type Hydraulic motor Distance A Distance B
T4002 / CG4 13 kW Bosch-Rexroth 16 ccm / Sunfab 17 ccm 0 mm 0 mm
T4002 / CG4 13 kW Bosch-Rexroth 23 ccm / Sunfab 25 ccm 12 mm 12 mm
T4002 / CG4 20 kW Bosch-Rexroth 23 ccm / Sunfab 25 ccm 11 mm 0 mm
1
2
3
4
Hydraulic motor
Adaptor ring for 16/17 ccm hydraulic motors
Clutch bell
Cover for speed measurement
6
7
8
9
Clamping bushing on the hydraulic motor
Coupling spider
Clamping bushing on the power generator
Sha / end shield on the power generator
5 Coupling half

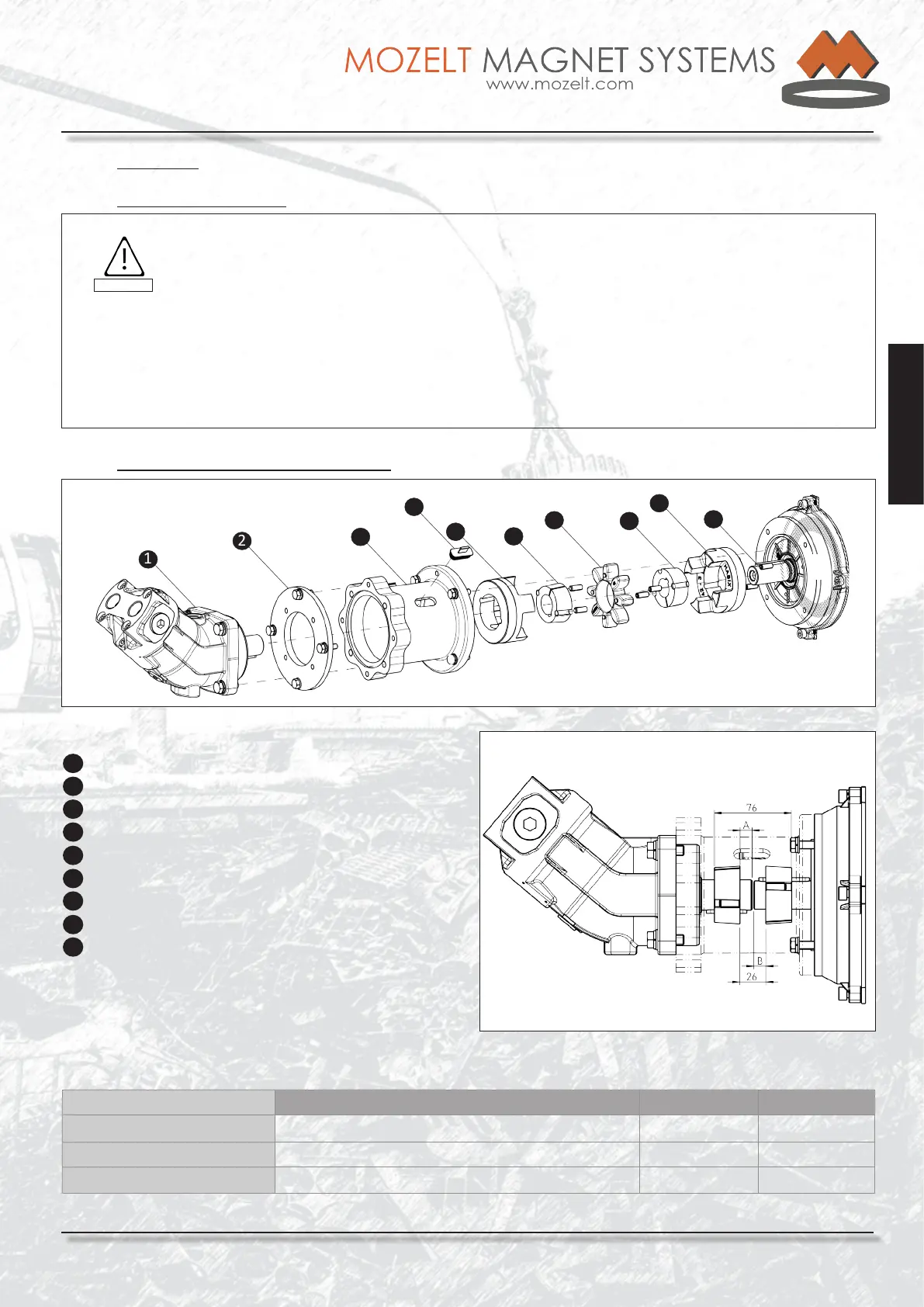

Fig.: 4 | Explosion drawing „BELL CLUTCH“ coupling
Fig.: 5 | Distance drawing coupling halves
1
CAUTION
The environmental atmosphere must be free of aggressive dust, corrosive vapours, gases and
liquids. The generator is to be protected against moisture according to IP 55.
Synchronous generators with integrated electronics may not be operated in areas classied as
dangerous, unless they are installed and cered in an approved housing.
The generators are designed for foot assembly
Make sure that the heat produced by the generator can be dissipated. The venlator screen must always be kept
free, in order to ensure an adequate supply of fresh air. All heat sources must be considered when determining
the ambient temperature, so that the temperature does not rise above the permissible maximum value for the
generator.
