MPE CHAIN-VEY - Equipment Identification; 180° Tensioning Turnaround Unit; Product Inlet; Product Inlet with optional Flow Baffle

26 pages

To Next Page

To Previous Page

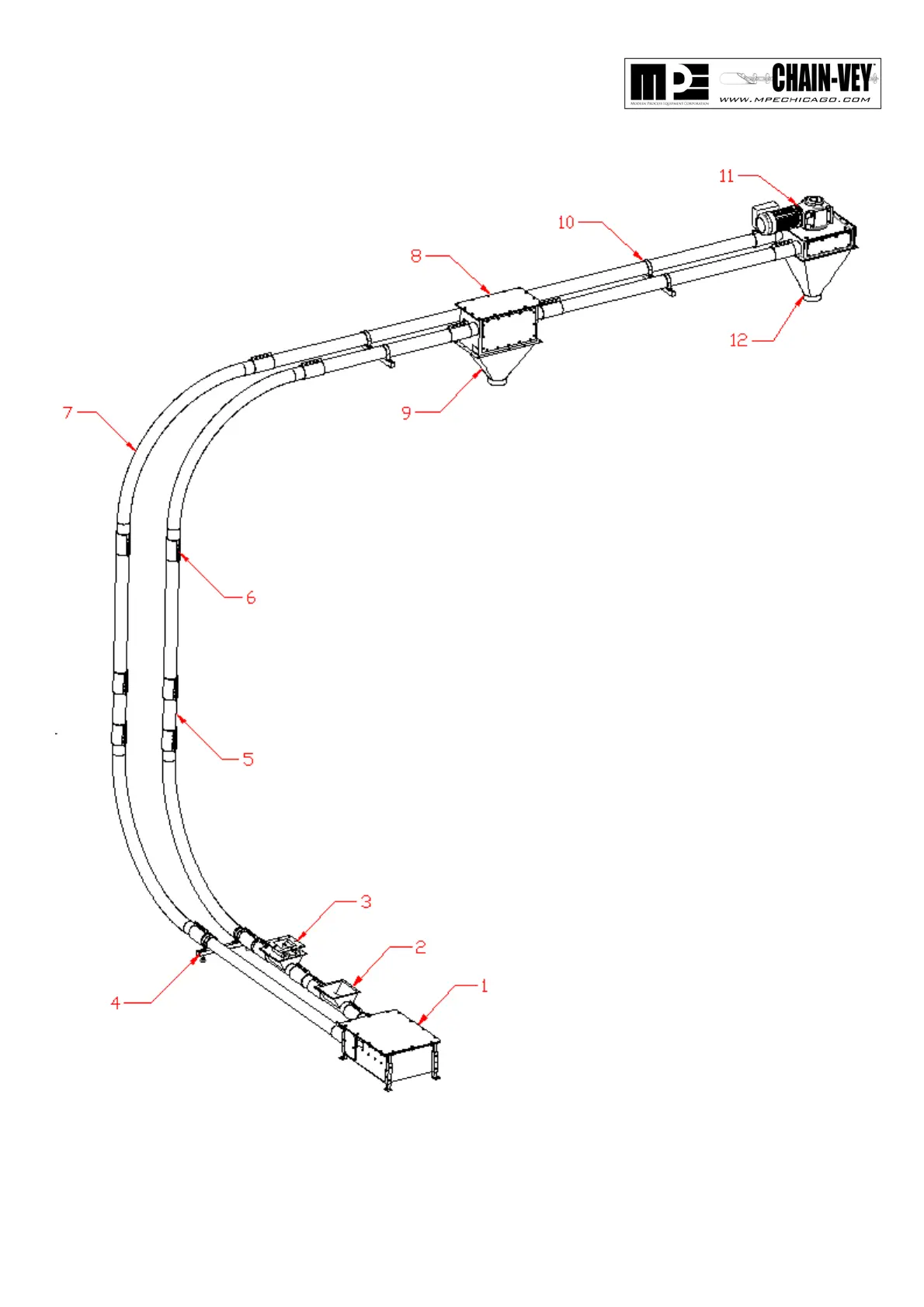

Equipment Identification

1. 180° Tensioning Turnaround Unit

2. Product Inlet

3. Product Inlet with optional Flow Baffle

4. Double-pipe Floor Support

5. Product Sight Glass

6. Compression Coupling

7. Sweep Elbow

8. Rotary Discharge

9. Rotary Discharge – Discharge Transition

10. Double-Pipe Suspension Support

11. 180° Drive Unit

12. Drive Unit – Discharge Transition

Note: Equipment layout is shown only as an example. The component numerical designations are

shown for reference purposes only.
