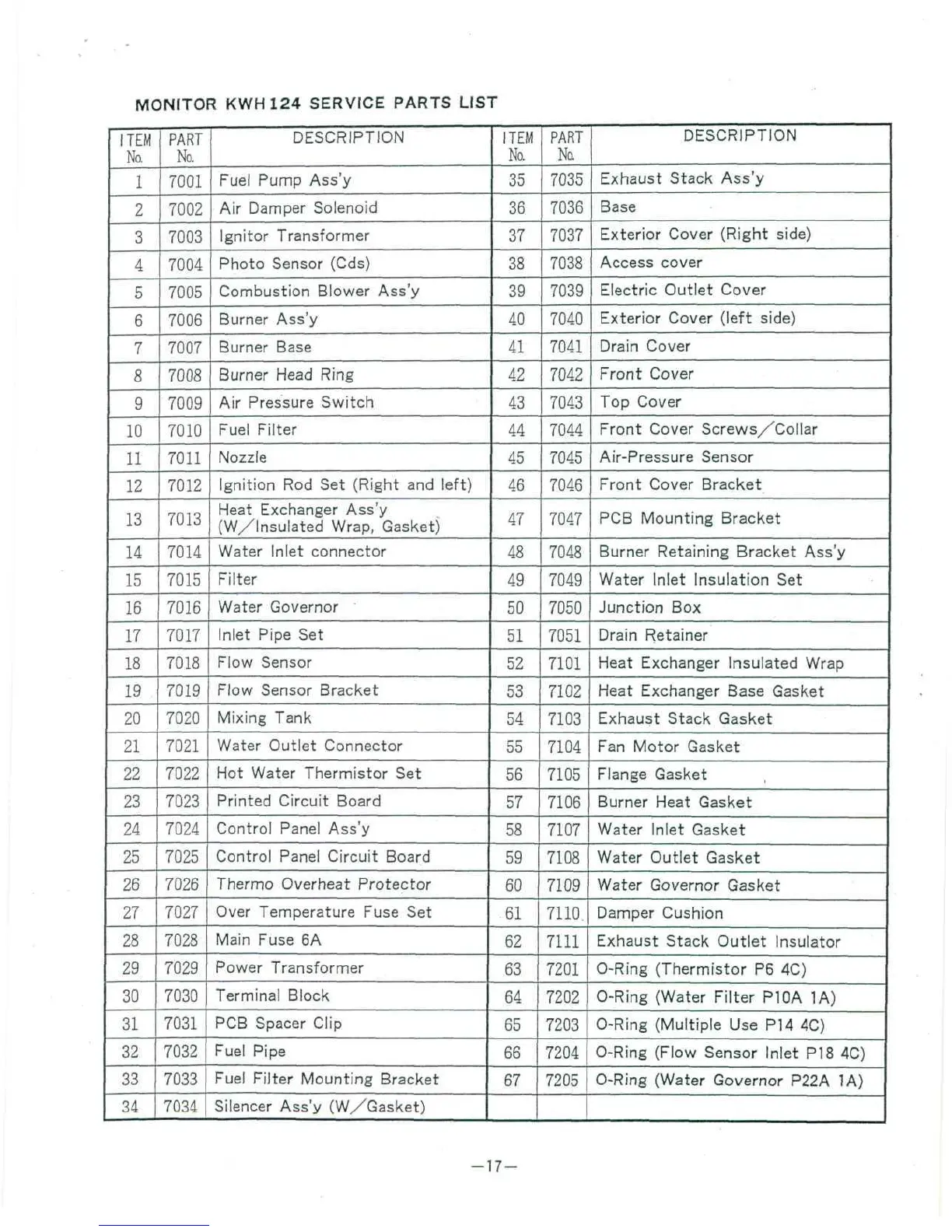

MPI KWH124 - KWH124 Service Parts List

MONITOR KWH124 SERVICE PARTS LIST
ITEM
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
PART
No,
7001
7002
7003
7004
7005
7006
7007
7008
7009
7010
7011
7012
7013
7014
7015
7016
7017
7018
7019
7020
7021
7022
7023
7024
7025
7026
7027
7028
7029
7030
7031
7032
7033
7034
DESCRIPTION
Fuel Pump Ass'y
Air Damper Solenoid
Ignitor Transformer
Photo Sensor (Cds)
Combustion Blower Ass'y
Burner Ass'y
Burner Base
Burner Head Ring
Air Pressure Switch
Fuel Filter
Nozzle
Ignition Rod Set (Right and left)
Heat Exchanger Ass'y
(W/lnsulated Wrap, Gasket)
Water Inlet connector
Filter
Water Governor
Inlet Pipe Set
Flow Sensor
Flow Sensor Bracket
Mixing Tank
Water Outlet Connector
Hot Water Thermistor Set
Printed Circuit Board
Control Panel Ass'y
Control Panel Circuit Board
Thermo Overheat Protector
Over Temperature Fuse Set
Main Fuse 6A
Power Transformer
Terminal Block
PCS Spacer Clip
Fuel Pipe
Fuel Filter Mounting Bracket
Silencer Ass'y (W/Gasket)
ITEM
No.
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
PART
No.
7035
7036
7037
7038
7039
7040
7041
7042
7043
7044
7045
7046
7047
7048
7049
7050
7051
7101
7102
7103
7104
7105
7106
7107
7108
7109
7110.
7111
7201
7202
7203
7204
7205
DESCRIPTION
Exhaust Stack Ass'y
Base
Exterior Cover (Right side)
Access cover
Electric Outlet Cover
Exterior Cover (left side)
Drain Cover
Front Cover
Top Cover
Front Cover Screws/Collar
Air-Pressure Sensor
Front Cover Bracket
PCB Mounting Bracket
Burner Retaining Bracket Ass'y
Water Inlet Insulation Set
Junction Box
Drain Retainer
Heat Exchanger Insulated Wrap
Heat Exchanger Base Gasket
Exhaust Stack Gasket
Fan Motor Gasket
Flange Gasket
Burner Heat Gasket
Water Inlet Gasket
Water Outlet Gasket
Water Governor Gasket
Damper Cushion
Exhaust Stack Outlet Insulator
0-Ring (Thermistor P6 4C)
0-Ring (Water Filter P10A 1A)
0-Ring (Multiple Use P14 4C)
O-Ring (Flow Sensor Inlet PI 8 4C)
0-Ring (Water Governor P22A 1A)
