MPI KWH124 - Dimensional Outline Drawing

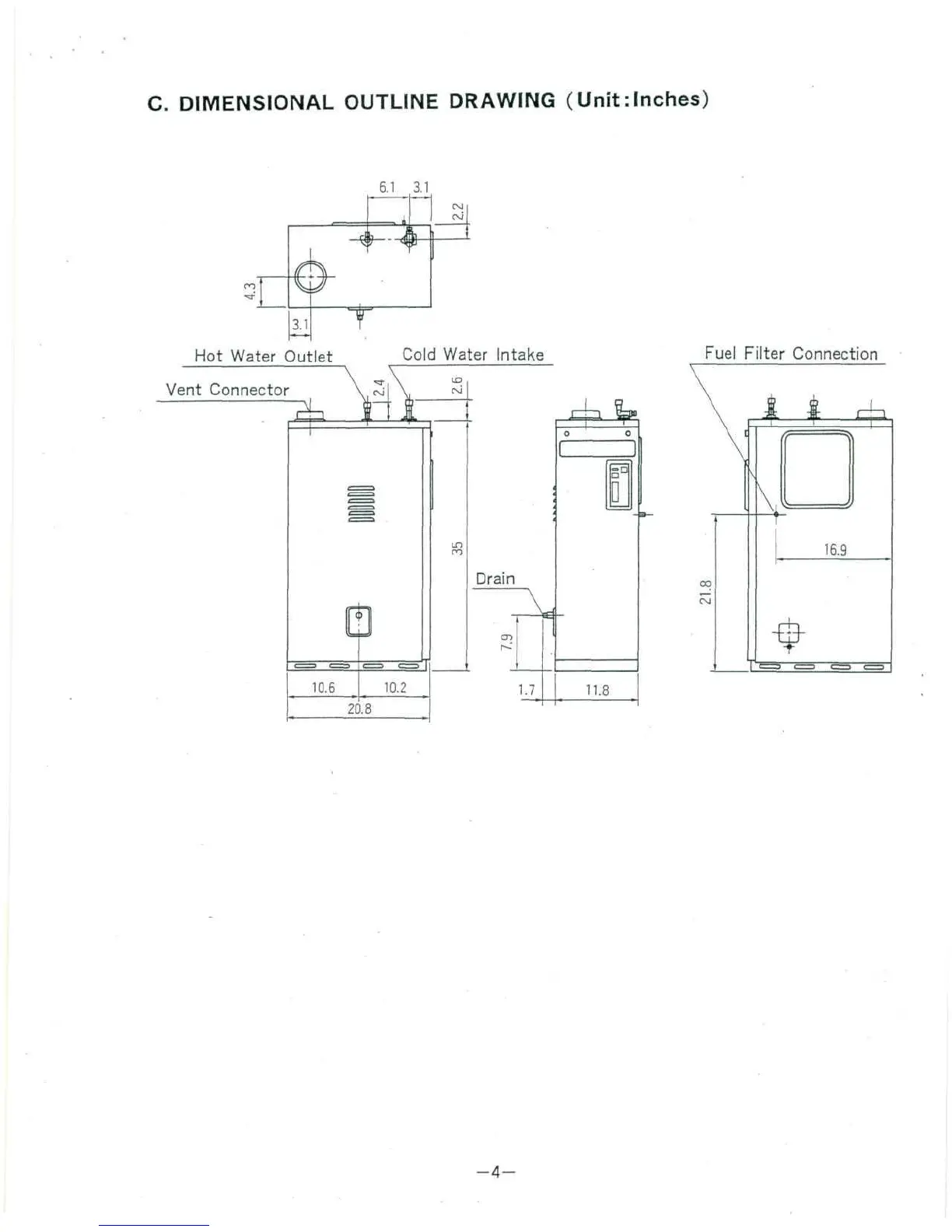

C. DIMENSIONAL OUTLINE DRAWING (Unit-.Inches)
6.1 3.1
3.1
Hot Water Outlet
Vent Connector
Cold Water Intake
10.6
10.2
Drain
Fuel Filter Connection
\
1.7
£
'
0 0
( I
EEC
11.8
-4-
