MPI KWH124 - Specifications and Components; Parts Description and Identification

( 2. SPECIFICATIONS")

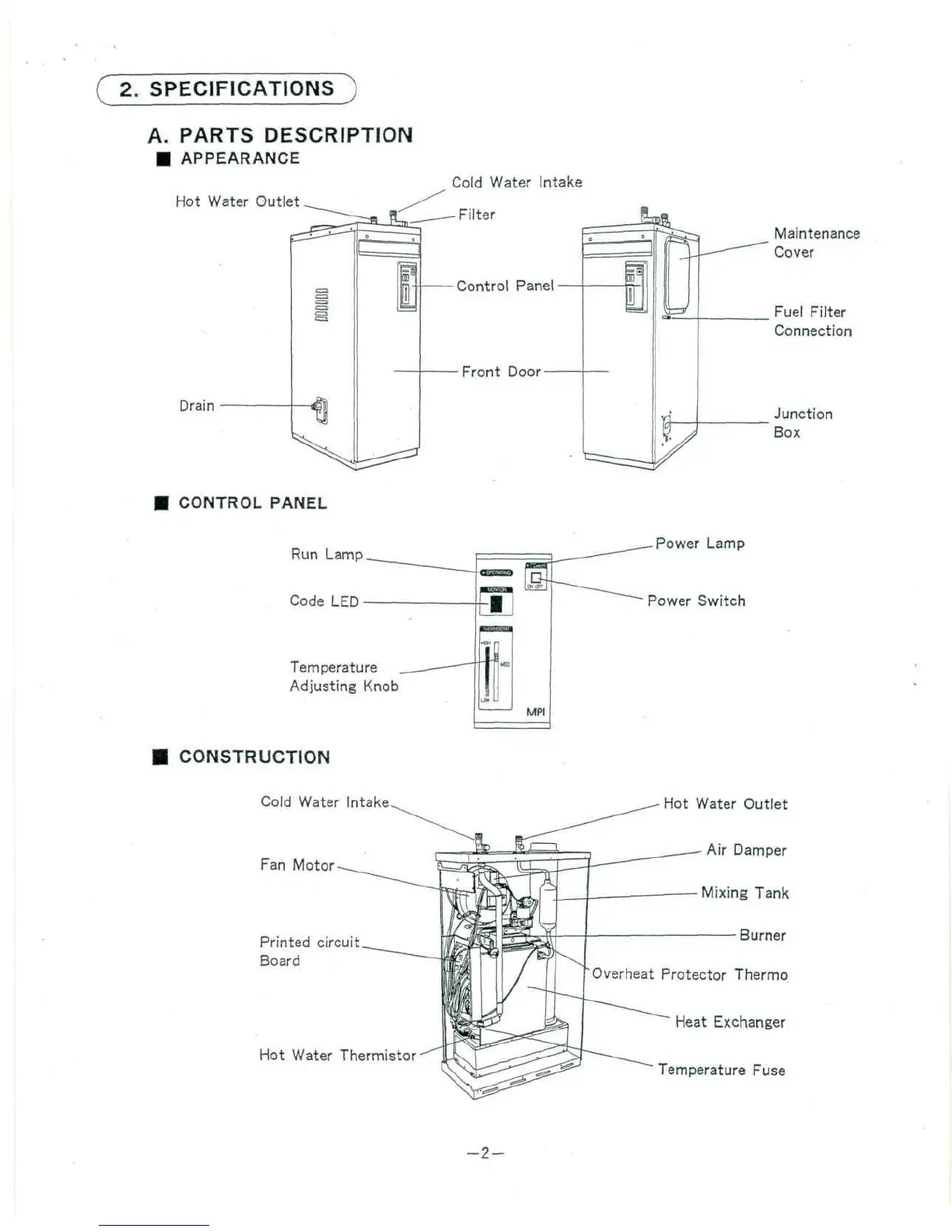

A. PARTS DESCRIPTION
• APPEARANCE
Hot Water Outlet
Drain
CONTROL PANEL
CONSTRUCTION
Coid Water Intake
Fan Motor
Printed circuit
Board
Hot Water Thermistor
Cold Water Intake
-Filter
- Control Panel
Front Door
Maintenance
Cover
Fuel Filter
Connection
Junction
Box
Run Lamp_______^
Code LED
Temperature . —
Adjusting Knob
Oi
•s
mm
MM
|
LCW
SS3
zsm
1
Eza
UC-J.
asssf
D-
ON<fF
MPI
Power Lamp
- Power Switch
Hot Water Outlet
Air Damper
Mixing Tank
Burner
Overheat Protector Thermo
Heat Exchanger
Temperature Fuse
-2-
