MPP Solar PCM60X - LCD Display Icons

12
Button Operation
Function
Action Description
Power on
Press the button until LCD backlight is on.
Backlight on
Press shortly
Enter LCD setting mode
Press the button for 3 seconds.
Select LCD setting programs or modify
parameter
Press shortly.
Confirm selection in setting programs
or return back to previous menu
Press the button for 1.5 seconds.

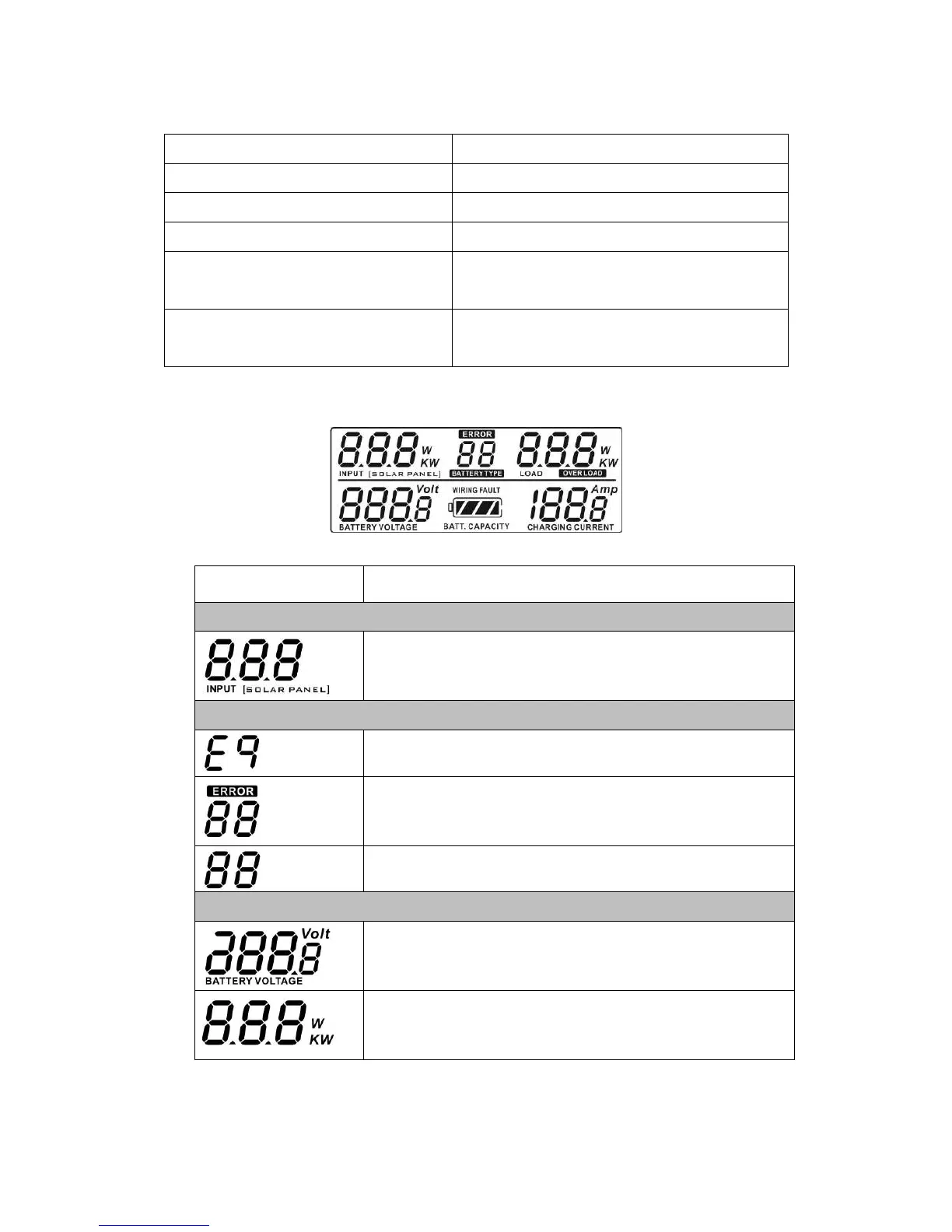

4.3 LCD Display Icons
Icon
Function description
Input Source Information
Indicates the PV input voltage.
Configuration Program and Fault Information
Indicates battery equalization is activated.
Indicates fault codes.
Indicates warning codes.
Output Information
Indicate battery voltage.
Indicate charging power.
