Mr. Heater MHVFGH30LPBT - Parts List and Diagram; Parts Identification; Exploded View Diagram; Parts Installation Warning

15
Installation Instructions and Owner’s Manual
Unvented LP-Gas Vent Free Heaters
MODEL: MHVFGH30LPBT / MHVFGH30LPT
ITEM P/N PART DESCRIPTION QTY ITEM P/N PART DESCRIPTION QTY
1
80041
Wire Guard 1
15 80081 Thermostat Valve
1
2
80116
Front Panel 1
16 N/A Thermostat Mounting Bracket
1
3
80025
Reflector 1
17 N/A Back Heat Shield
1
4
80029
Heat Shield 1
18 80058 Floor Mount Feet
1
5
80111
Steel Panel 1
19 80117 Back Panel
1
6
N/A
Steel Panel Bracket 1
20 80037 Wall Mounting Bracket
1
7
80018
Burner Assembly 1
21 N/A Reflector Back Panel
1
8
80056
ODS Pilot Assembly w/ Thermocouple 1
22 F299201 Fan Assembly
1
9
80009-03
Orifice 1
23 80049 Fan Switch
1
10
80073
Orifice Adapter 1
24 80011 Ignitor Module Mounting Bracket
1
11
80055
Regulator Mounting Bracket 1
25 80019 Ignitor Pulse
1
12
N/A
Regulator Connection 1
26 80014 Ignitor Wire
1
13
80082
Regulator 1
27 N/A Burner Left Bracket
1
14
N/A Burner Right Bracket 1 28 80013 High Limit Switch (FAN)
1
**
70342 Hardware Kit (not shown)
1
Blower not
included on all
units
BF30TB NG
BF30T NG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
18

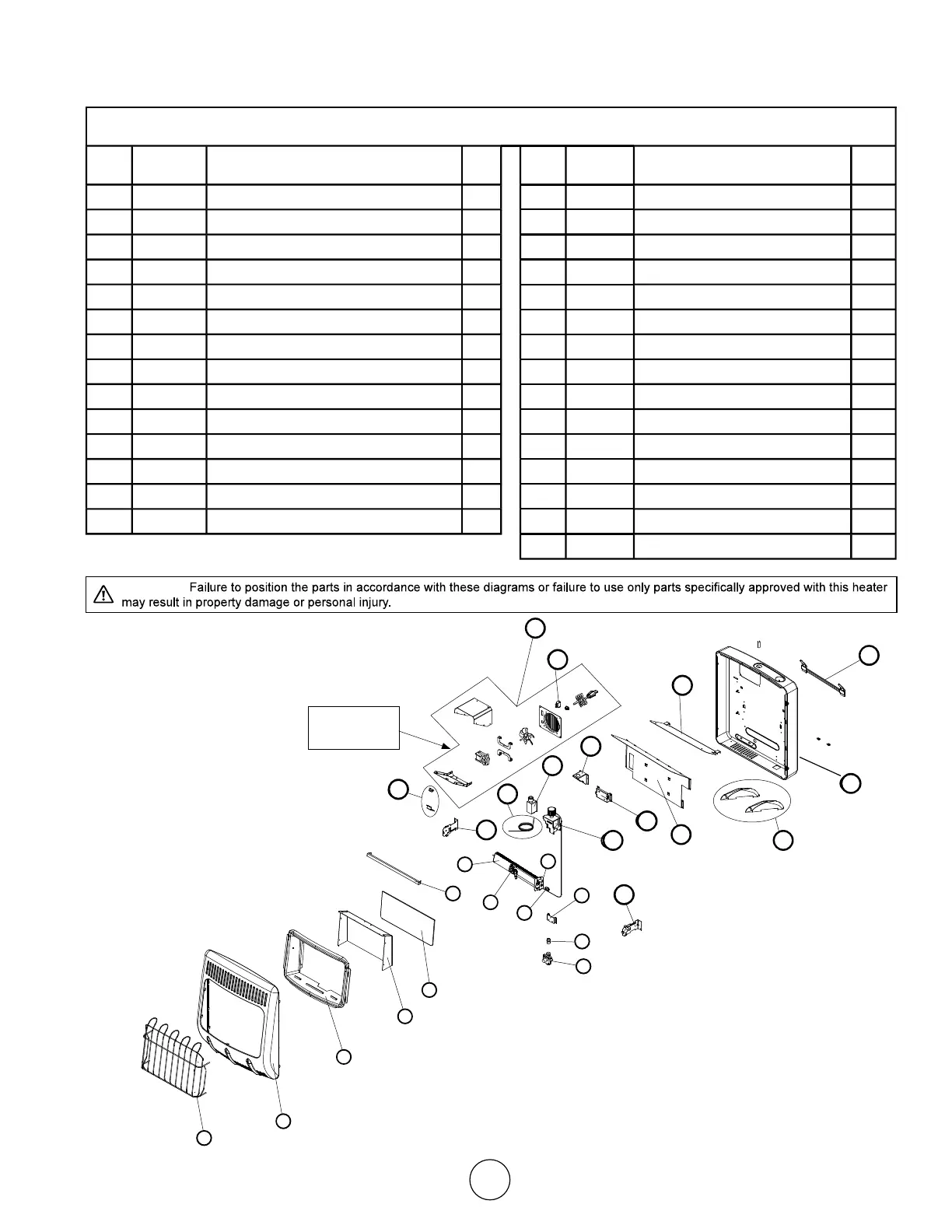

PARTS LIST AND DIAGRAM
WARNING:
14
15
16
17
18
19
20
21
22
23
24
25
26
28
27
