5 Mounting
Maschinenfabrik Reinhausen GmbH 201834 1800059/09 ENRS

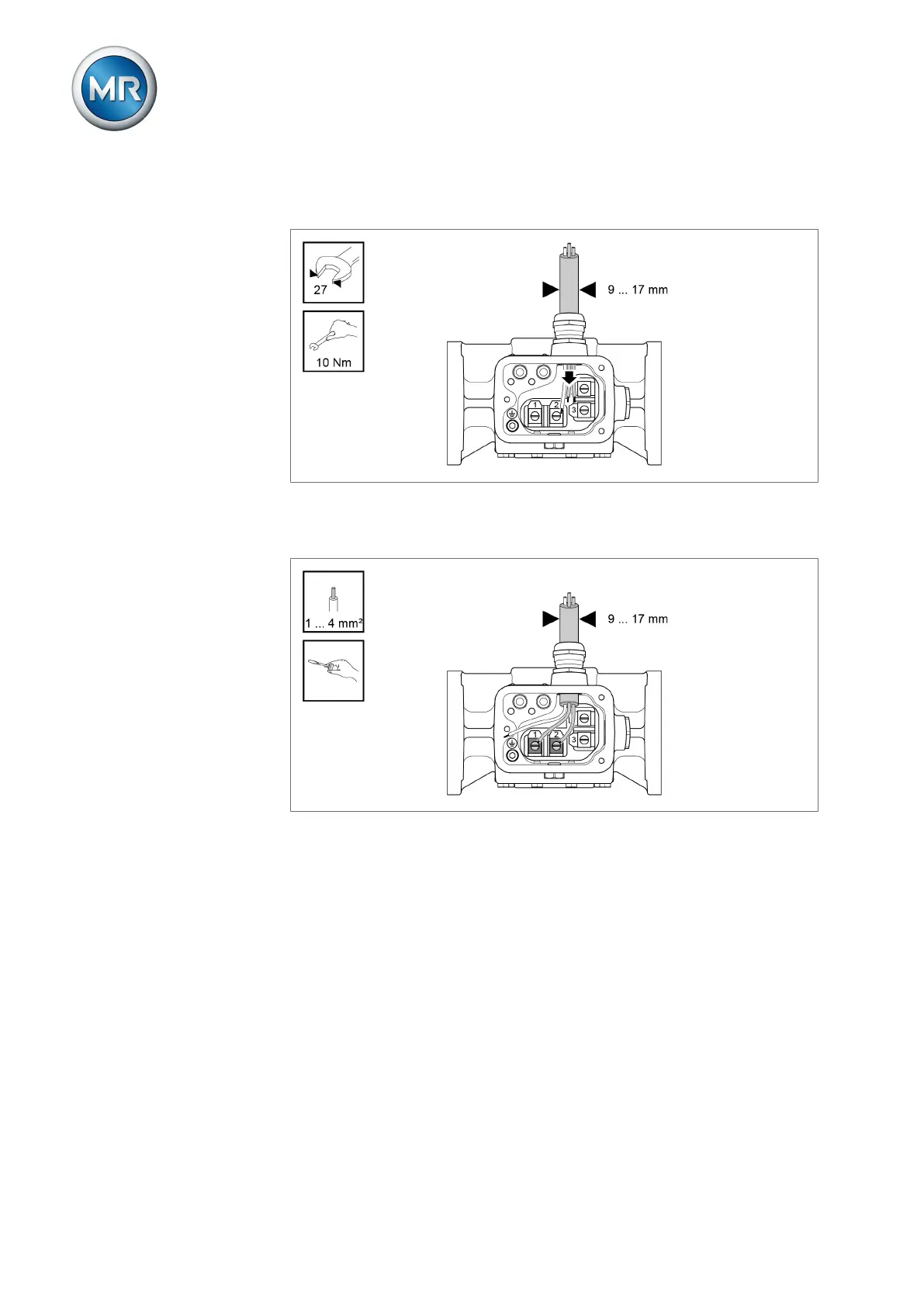

6. Guide cable through cable gland and into protective relay. Ensure that the
cable gland is well connected and sealed.
Figure21: Cable bushing
7. Connect the electric cables to the connection terminals in accordance with
the connection diagram on the dimensional drawing.
Figure22: Electrical cables
