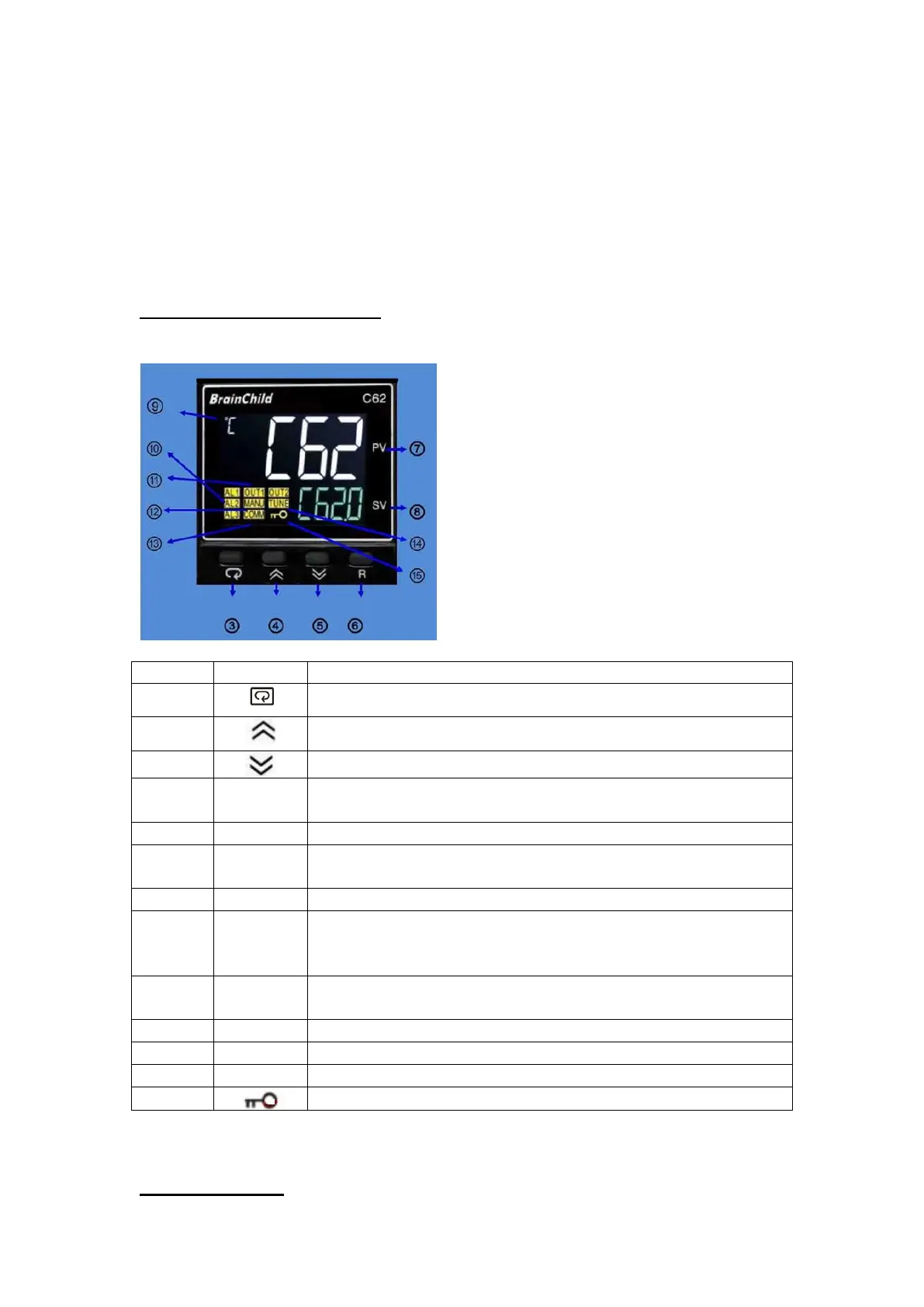

MRC DFO Series - Main Temperature Controller

Main Temperature Controller
Number Key Description / Function
③
For setting and calling up parameters.
④
To increase the value of digits.
⑤
To decrease the value of digits.
⑥
R Revert /STOP/Restart Timer (For machine with timer use
only)
⑦
PV To display process value, menu symbol and error code.
⑧
SV To display set point value, parameter value or control output
value.
⑨
C Process Unit Indicator- Celsius
⑩
ALM 123
Indicator
Over-Heat Temperature.
Lights on when actual temperature over the set temperature
5℃, and turns off the heater.
⑪
OUT 1 2 Control output lamp 1.
Light on when heater is activated
⑫
MANU Lamp flashes during Manual Mode operates
⑬
COMM Communication indicator
⑭
TUNE Lamp flashes during auto-tuning operates
⑮
Lock indicator
Setting parameter
The PV display indicates the parameter symbol, and the SV display indicates the
selected value of the selected parameter.
Under no circumstances should any objects be placed on top of the
product. Always ensure that any vents on the top of the product are
clear of any obstruction. Always ensure all cooling vents and
cooling .fans (if fitted) are clear of any obstruction
