Page 10mrcool.com
49 ft(15 m)
Indoor unit
Indoor unit
Indoor unit
Outdoor unit
49 ft(15 m)
32.8 ft(10 m)
Table 2.1
Table 2.2
Indoor units that can be used in combination
Number of connected units
1-5 units
Compressor stop/start frequency Stop time 3 minutes or more
within ±10% of rated voltage
Power source voltage voltage drop during start within ±15% of rated voltage
interval unbalance within ±3% of rated voltage
Max. length for all rooms
98.4 ft/30 m 147.6 ft/45 m
Max. length for one indoor unit 65.6 ft/20 m 82 ft/25 m
indoor and outdoor unit
32.8 ft/10 m 32.8 ft/10 m
49 ft/15 m 49 ft/15 m
32.8 ft/10 m 32.8 ft/10 m
196.8 ft/60 m 246 ft/75 m
98.4 ft/30 m 98.4 ft/30 m
32.8 ft/10 m 32.8 ft/10 m
49 ft/15 m 49 ft/15 m
32.8 ft/10 m 32.8 ft/10 m
Unit: ft/m
2 ZONE 3 ZONE 4 ZONE 5 ZONE

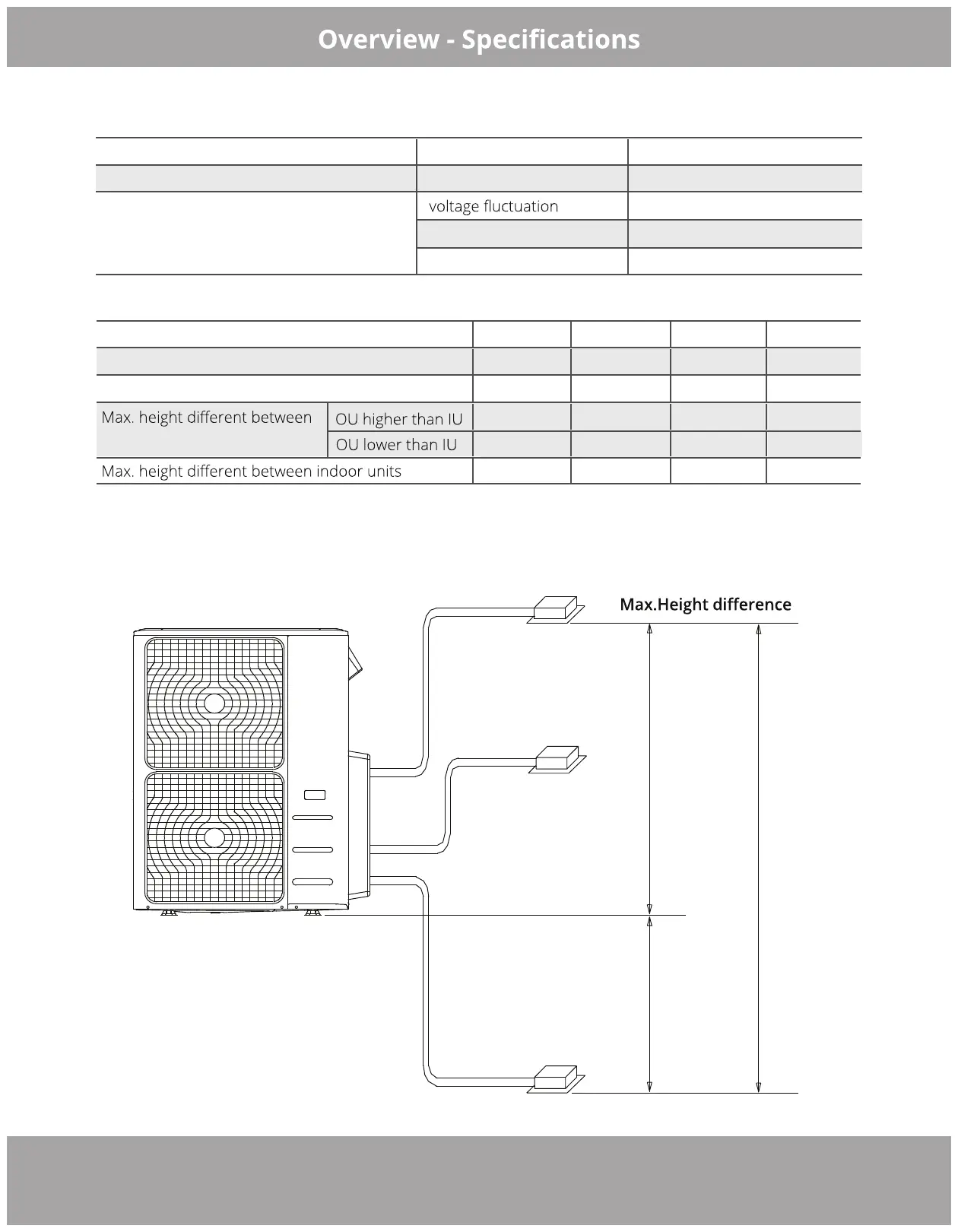

Fig. 2.5
When installing multiple indoor units to a single outdoor unit, ensure that the length of the refrigerant
pipe and the drop height between the indoor and outdoor units meets the following requirements:
