Indoor Unit Installation
If refrigerant piping is already embedded
in the wall, do the following:
1. Hook the top of the indoor unit on the upper
hook of the mounting plate.
2.
giving you enough room to connect the
refrigerant piping, signal cable, and drain
hose. Refer to Fig. 3.9 for an example.

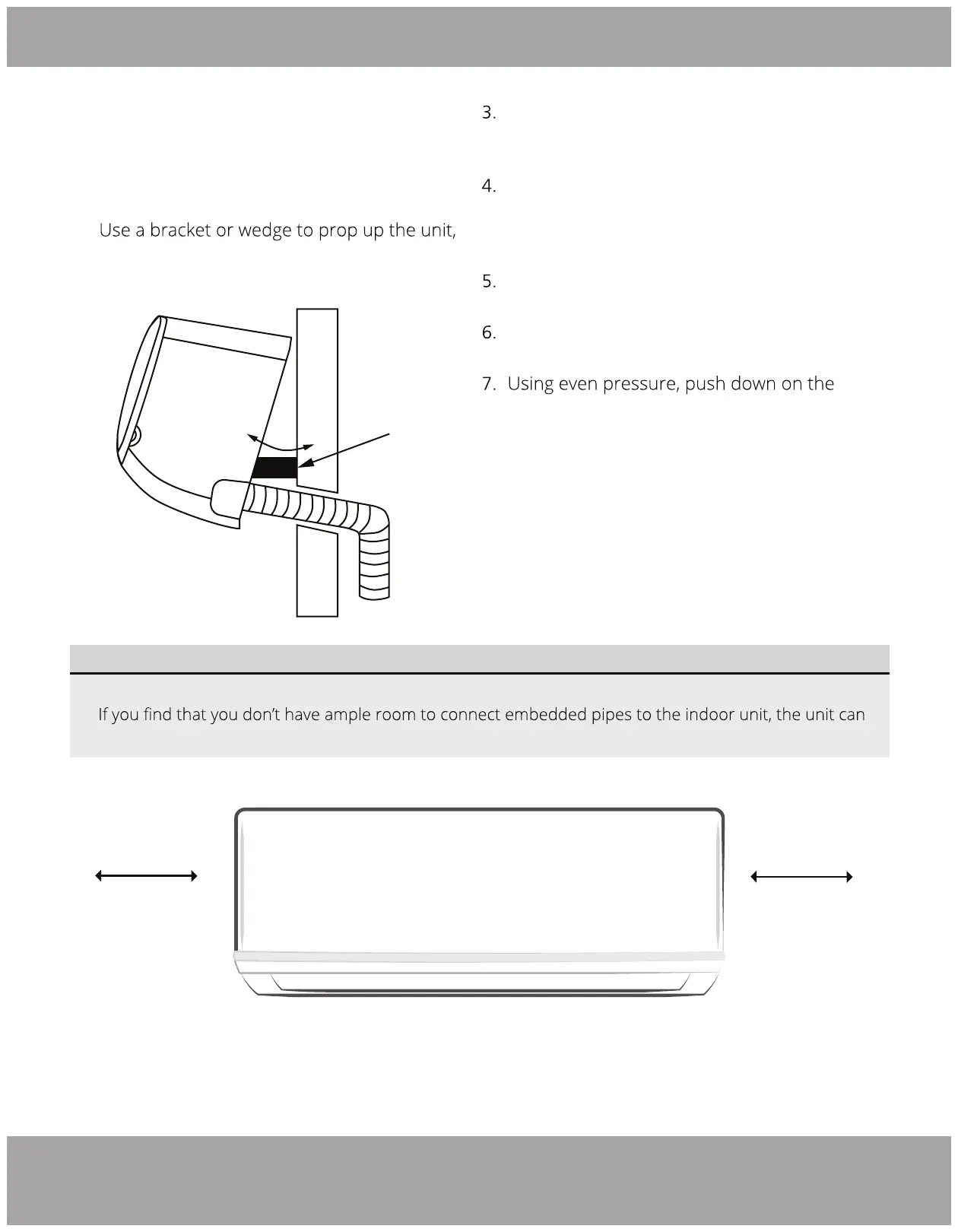

Fig. 3.9
Connect drain hose and refrigerant piping
(refer to Refrigerant Piping Connection
section of this manual for instructions).
After the leak test, wrap the connection point
with insulation tape.
Remove the bracket or wedge that is propping
up the unit.
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along the
bottom of the mounting plate.
UNIT IS ADJUSTABLE
Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit.
be adjusted left or right by about 1.25-1.95 in (30-50 mm), depending on the model. (See Fig. 3.10)
Fig. 3.10
Move to left or right
1.2-1.95 in
(30-50 mm)
1.2-1.95 in
(30-50 mm)
Wedge
30°
Keep pipe connection point exposed to
perform the leak test (refer to Electrical
Checks and Leak Checks section of this
manual).
