Page 8
Overview - Multi-Zone
mrcool.com

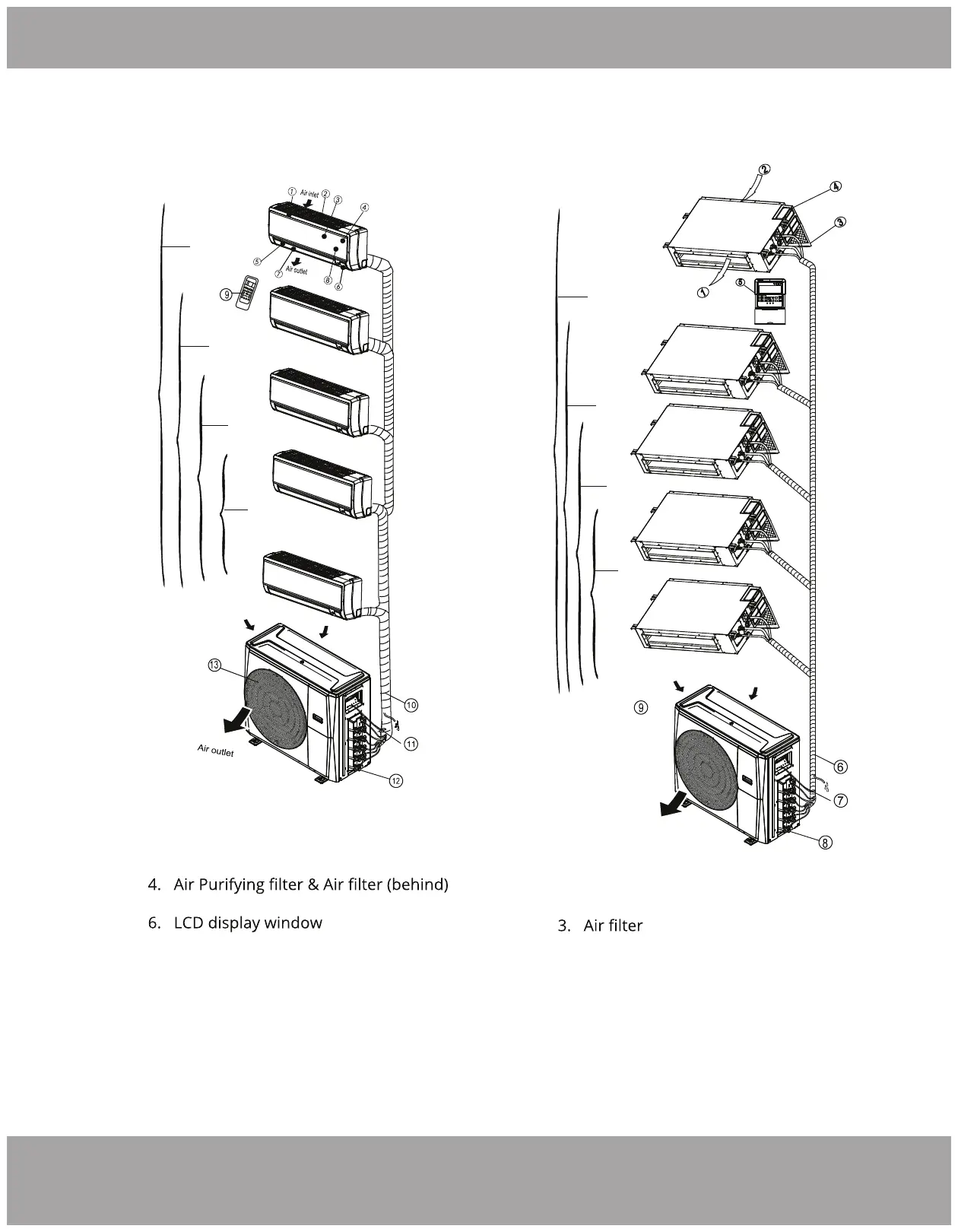

Fig. 2.2
Fig. 2.3
5-Zone
4-Zone
3-Zone
2-Zone
5-Zone
4-Zone
3-Zone
2-Zone
Wall-Mounted Handlers Ceiling Ducted Handlers
Indoor unit
1. Panel frame
2. Rear air intake grille
3. Front panel
5. Horizontal louver
7. Vertical louver
8. Manual control button (behind)
9. Remote control holder
Outdoor unit
10. Drain hose, refrigerant pipe
11. Connective cable
12. Stop valve
13. Fan hood
Indoor unit
1. Air outlet
2. Air inlet
4. Electric control cabinet
5. Wire controller
Outdoor unit
6. Drain hose, refrigerant pipe
7. Connective cable
8. Stop valve
9. Fan hood
