SPECTRA
plus
www.mru.eu
Switch ON/OFF
(with battery operation)
Confirmation key
MEASUREMENT
STORAGE
EXTRAS
Selection keys
Selection keys
Printer key
ESC key / cancel
Menu key
Function keys
(according to function key bar)
show all available functions
change values
move cursor
Data to change w/o notice 20110516
If the grid power is connected,
the SPECTRAplus is always
switched on. In this situation the
battery is continously checked
and if necessary charged!
ATTENTION:
Make sure to empty and
dry condensate separator
after measurement!
Read and notice operating
manuals carefully before
commissioning!
ZEORING
1 Condensate separator
2 Sampling probe connection
3 Connection T-Gas & AUX
4 Temperature connection 2
5 Temperature connection 1 / T-Ambient air
6 Pressure connection 1 (Draft)
7 Pressure connection 2 (Differential pressure)
8 Pressure connector 3 (2.Pressure sensor)
9 USB-port and charging port

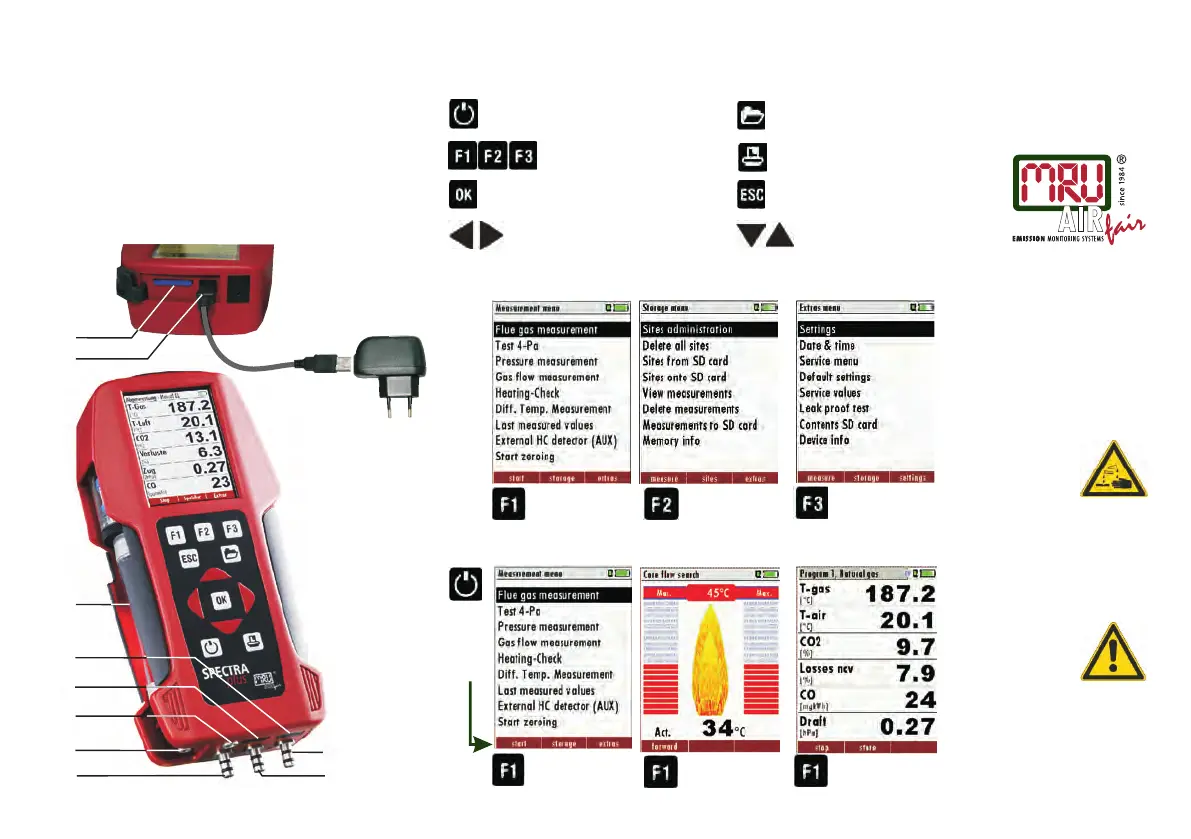

QUICK-START GUIDE
DESCRIPTION
KEYS
MENU
OPERATING
10 SD-card reader
1
2
3
6
4
5
8
7
10
USB
9
MRU battery charger
100 ... 240 Vac
Connectors-top
