MSA Alpha Series - 2 Description; Standard Model (BD 96 SL)

MSA DESCRIPTION
BD 96 SL 5
GB
2. Description

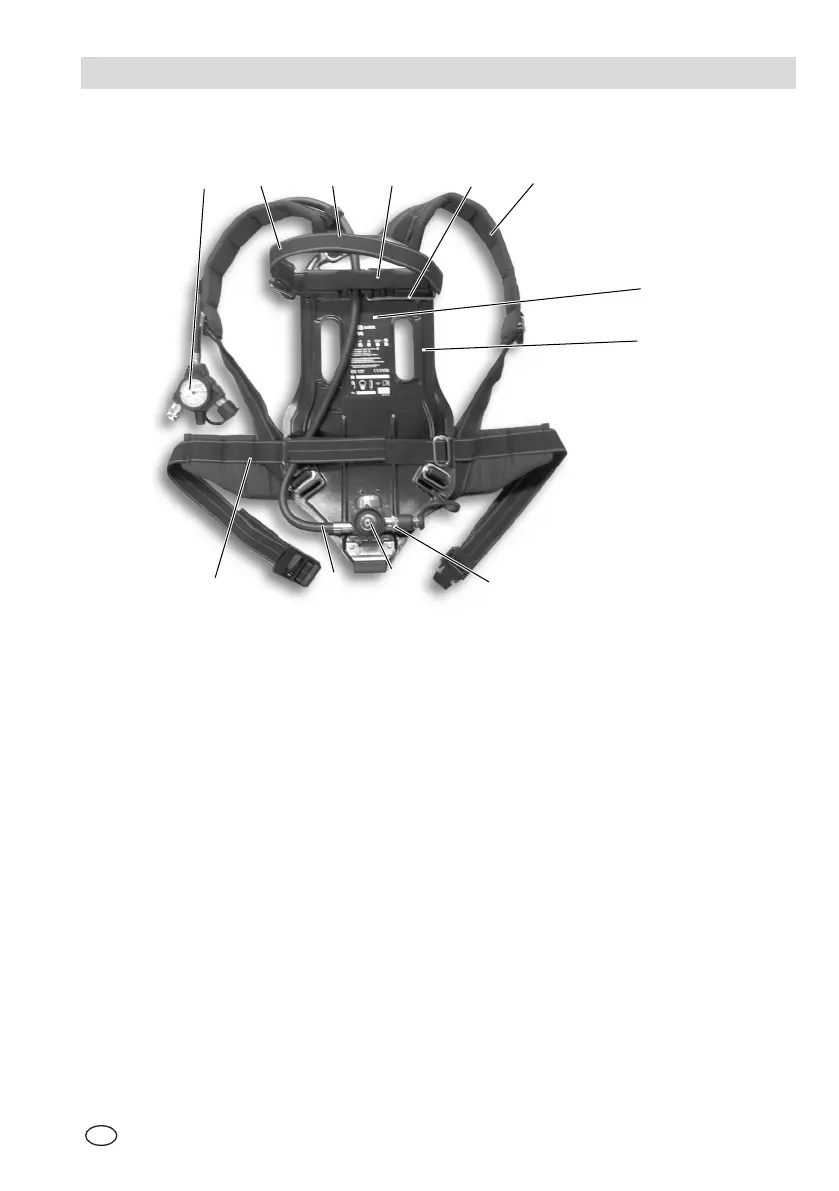

Fig. 1 BD SL Compressed air breathing apparatus
1 Combo pressure gauge with couplings 7 Carrying assembly
2 Tension clamp 8 Handle
3 Cylinder retaining strap 9 Quick-Fill coupling (Option)
4 Cylinder support 10 Pressure reducer
5 Cylinder separator 11 Multi-channel line
6 Shoulder strap 12 Hip belt
2.1. Standard Model (BD 96 SL)
The carrying assembly consists of an anatomically designed backplate of
antistatic plastic with carrying slots for easy handling. On the lower part of the
carrying assembly are the supports for the pressure reducer and an elastic bump
protector. On the upper part of the assembly, a cylinder support is attached with
integrated line guide.
The carrying belts and the hip belt are adjustable in length.
One or two compressed air cylinders can be placed in the cylinder support. The
cylinder strap is freely adjustable and after inserting the compressed air
cylinder(s), it is tied down tightly and secured with the tension clamp.
3
5
6
1
2
7
8
9
1011
1
2
4
