4 INSTALLATION INSTRUCTIONS

MSD • WWW.MSDPERFORMANCE.COM • (915) 855-7123 • FAX (915) 857-3344

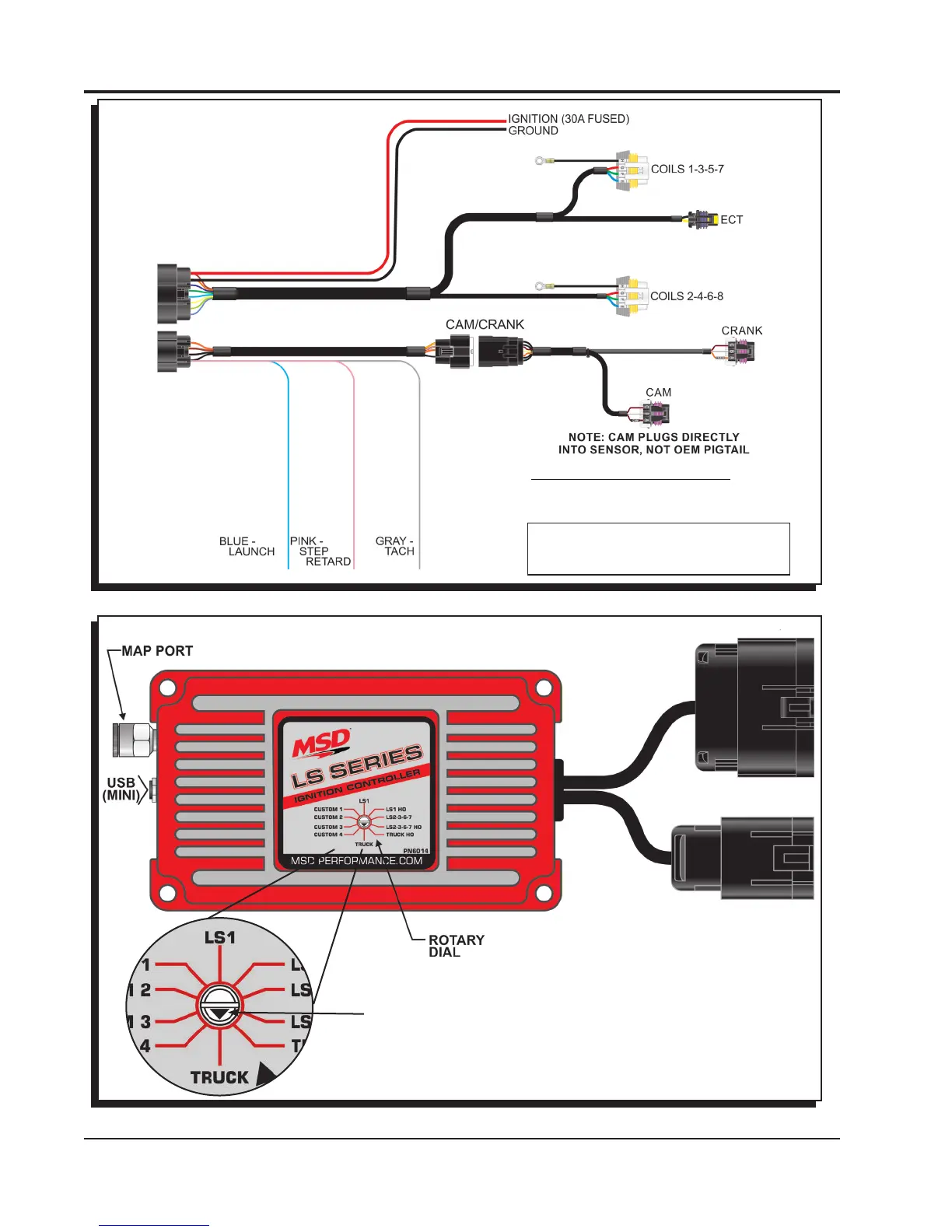

Figure 1 LS Ignition Harness

Figure 2 PN 6014 Ignition Control Timing/Rev LS Series

USE THE ARROW ON

THE SWITCH FOR CURVE

SELECTION.

22791 - BLACK CRANK SENSOR CONNECTOR

BLACK CAM SENSOR CONNECTOR

2278 - GREY CRANK SENSOR CONNECTOR

BLACK CAM SENSOR CONNECTOR

CAM/CRANK EXTENSION HARNESSES:

22791 - 24X CRANK / 1X CAM (REAR)

OPTIONAL - 2279 - 24X CRANK / 4X CAM (FRONT)

2278 - 58X CRANK / 4X CAM (FRONT)
