INSTALLATION INSTRUCTIONS 5
MSD • WWW.MSDPERFORMANCE.COM • (915) 855-7123 • FAX (915) 857-3344
MOUNTING
The LS Ignition must be mounted in a sturdy, dry location and not exposed to extreme heat. It
should be mounted using the included rubber isolators to limit excessive vibration. The unit is fully
potted, but should not be immersed or subjected to direct spray from a power washer.
MSDView
The MSDView software allows editing of the rst four timing tabs, as well as turning features on/off
and setting up and retrieving data logs. The following information gives a brief explanation of each
function or feature in the system and the settings that control them. While using the software, you
can mouse over each item for a brief on-screen explanation.
Note: Make sure MSDView is installed on the PC prior to connecting the LS Ignition Controller.
INSTALLATION OF THE MSDVIEW SOFTWARE
1. Insert the installation Flashdrive into available USB port.
2. Locate the ‘autorun.exe’ le on the Flashdrive.
3. Click on “Install MSD View Software”. Click ‘Yes’ when asked ‘Do you want the following program
to make changes to this computer?’.
4. Click ‘Next’ in the ‘Setup - MSD View’ window.
Accept the License Agreement and click ‘Next’.
Choose to accept the desktop icon then click ‘Install’.
Click ‘Finish’ to run application.
5. Connect the LS Controller via USB and wait for it to be listed in the product window..
It will be listed in the product window. Select the LS Controller by highlighting the line or checking
the box and clicking the ‘View/Hide’ button.
Note: The rst time the unit is connected, it may prompt for updates to be installed.
Note: The LS Ignition Controller requires a 30 Amp fused power source.
Do not power the unit directly through the Ignition Key switch.

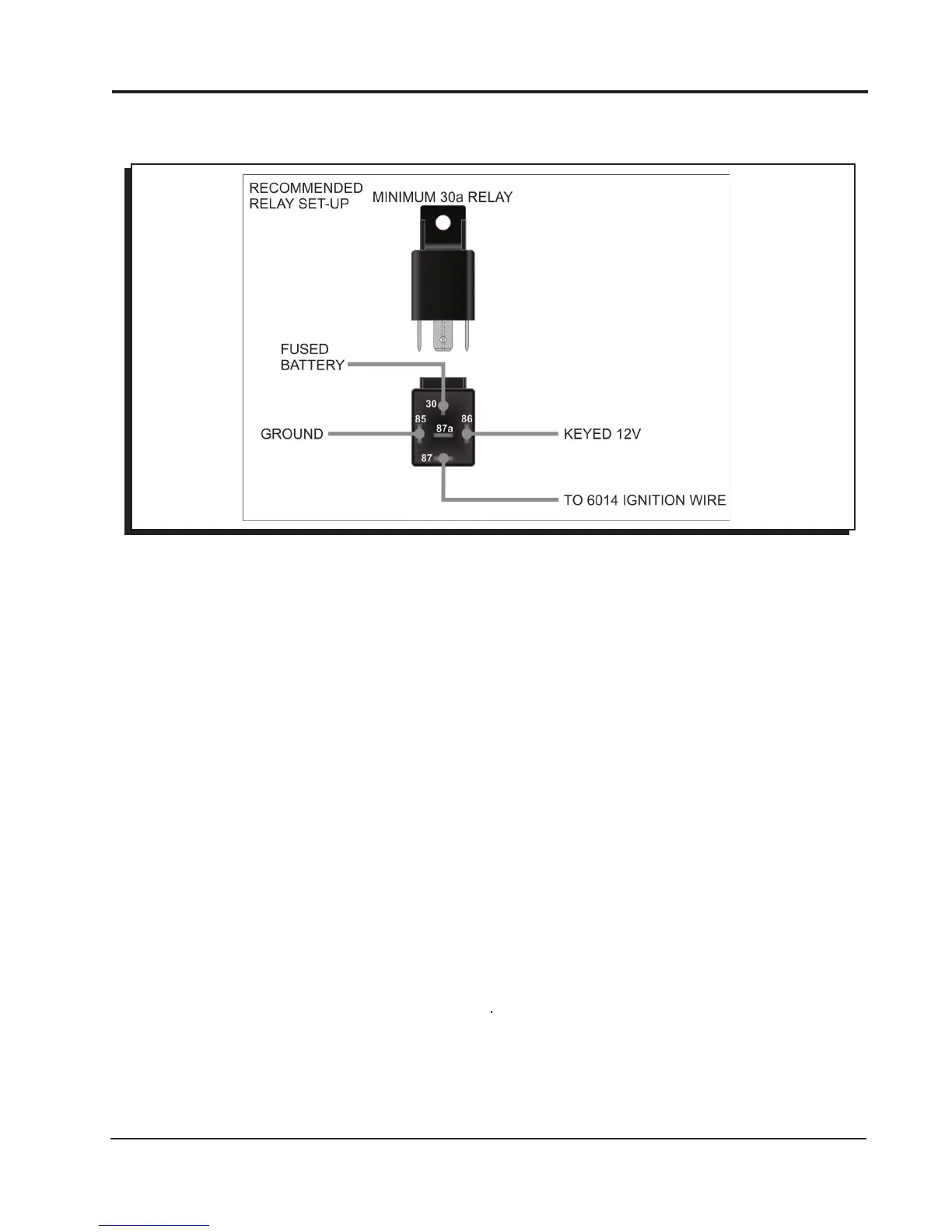

Figure 3 Recommended Relay Set-Up
