MSI 645 Combo - ATX 12 V Power Connector: JPW1; ATX 5 V;12 V Power Connector: JPW2

2-11
Hardware Setup
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
ATX 5V/12V Power Connector: JPW2
This 5V/12V power connector is used to provide power to the
components on the mainboard.

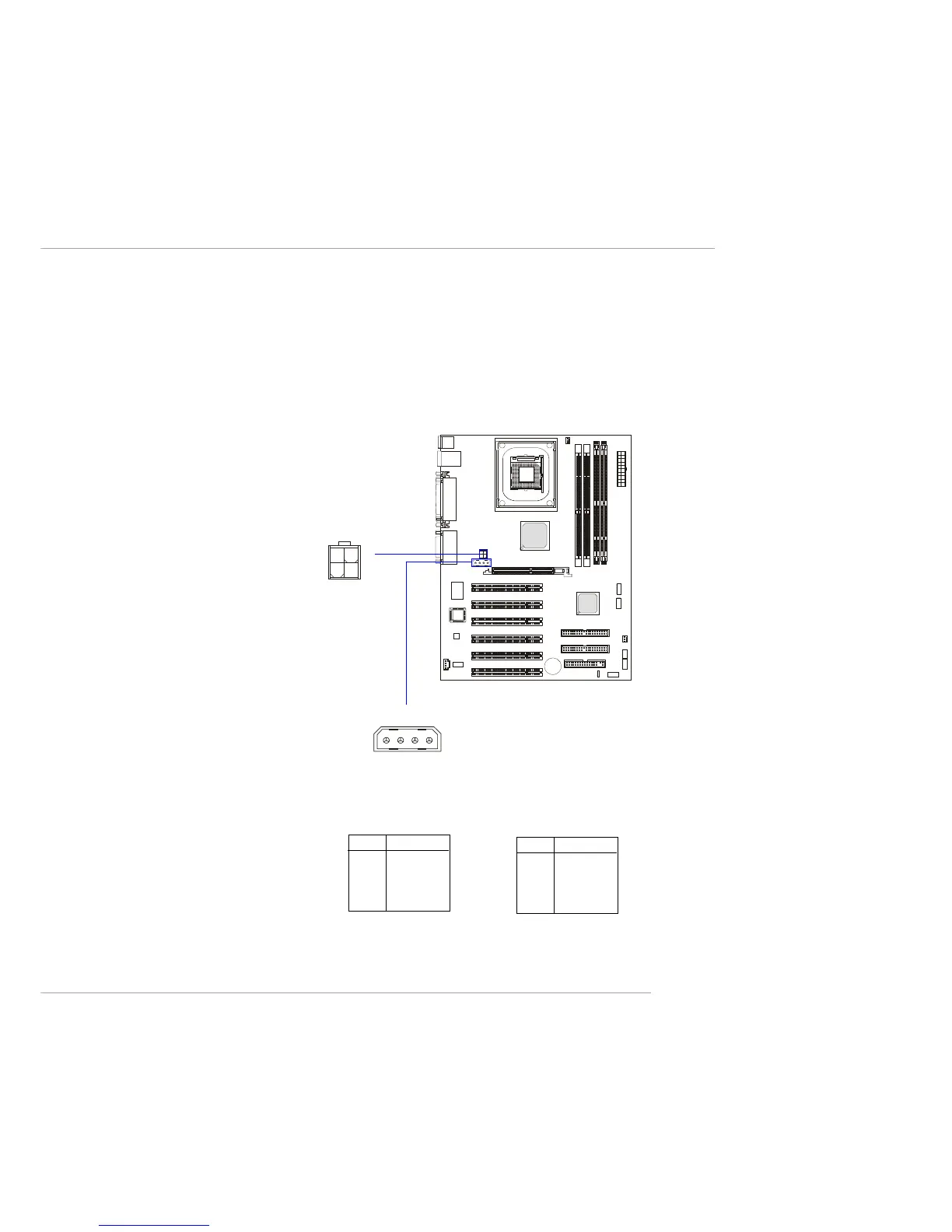

JPW1
1
3
4
2
PIN SINGAL
15V
2 GND
3 GND
4 12V
JPW2 Pin Definition
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition
1
4
JPW2
