21

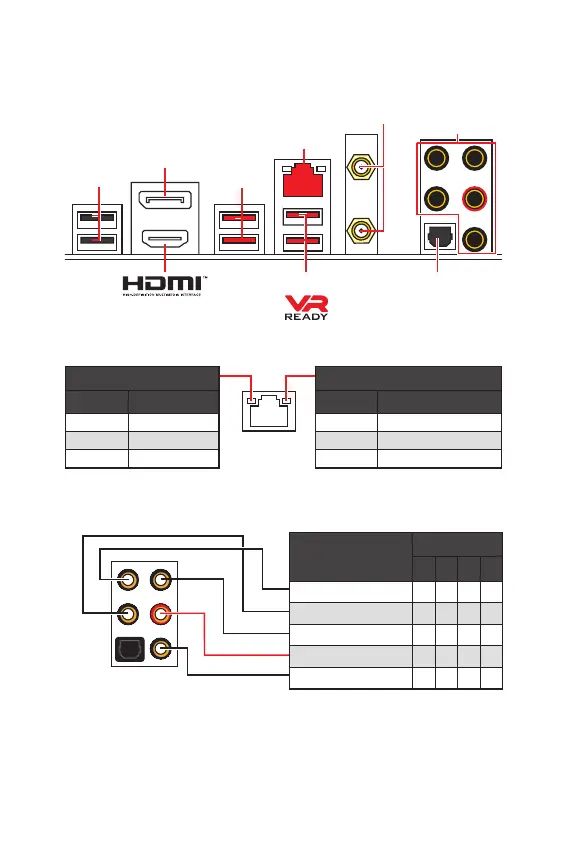

Rear I/O Panel
Rear I/O Panel
LAN
DisplayPort
Audio Ports
WiFi Antenna
connectors
Optical S/PDIF-Out
USB 2.0
USB 3.1 Gen2
USB 3.1 Gen1
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2468
Center/ Subwoofer Out ӪӪ
Rear Speaker Out ӪӪӪ
Line-In/ Side Speaker Out Ӫ
Line-Out/ Front Speaker Out ӪӪӪӪ
Mic In
(Ӫ: connected, Blank: empty)
