30
Overview of Components

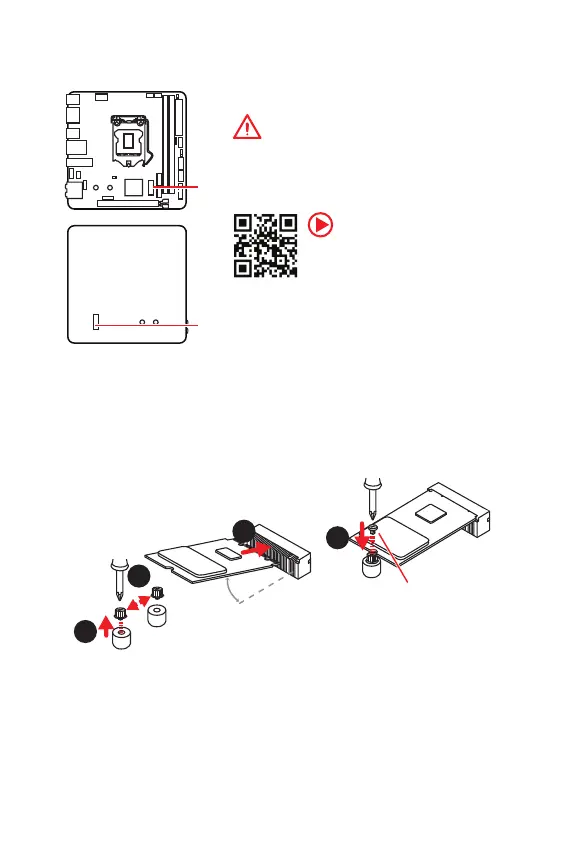

M2_1~2: M.2 Slots (Key M)
M2_1
M2_2
Important
y
Intel
®
RST only supports PCIe M.2 SSD with UEFI ROM.
y
Intel
®
Optane™ Memory Ready.
Installing M.2 device
1
2
3
30o
1. Loosen the M.2 riser screw from the
motherboard.
2. Move and fasten the M.2 riser screw to
the appropriate location for your M.2
SSD.
3. Insert your M.2 SSD into the M.2 slot at a
30-degree angle.
4. Secure the M.2 SSD in place with
the supplied M.2 screw.
4
Supplied M.2 screw
Video Demonstration
Watch the video to learn how to Install
M.2 module.
http://youtu.be/JCTFABytrYA
