MSI 845G Max - Front USB Connectors: JUSB1;2

Hardware Setup
2-19

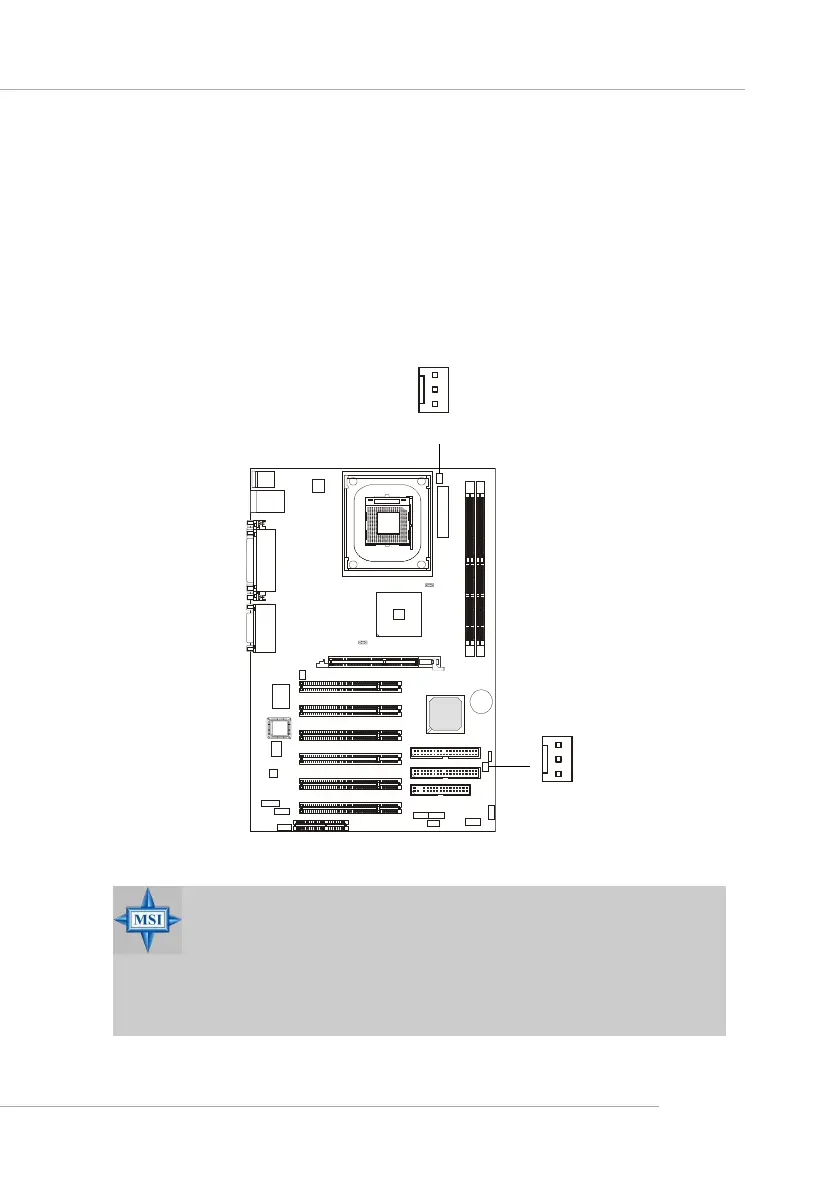

Front USB Connectors: JUSB1/2
The mainboard provides two USB2.0 pinheaders for users to connect to
optional USB2.0 ports. These pinheaders are compliant to Intel
®
I/O Connec-
tivity Design Guide.
USB 2.0 technology increases data transfer rate up to a maximum through-
put of 480Mbps, which is 40 times faster than USB 1.1, and is ideal for connect-
ing high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
Pin Description Pin Description
1 USBPWR 2 USBPWR
3 USBP2- 4 USBP3-
5 USBP2+ 6 USBP3+
7 GND 8 GND
9 NC 10 USBOC
JUSB1/2 Pin Definition
1 9
2
10
JUSB1
(USB 2.0/Intel spec)
1 9
2
10
JUSB2
(USB 2.0/Intel spec)
