2-8
MS-6788 ATX Mainboard
Dual-channel DDR Introduction
Please note that each DIMM can work respectively for single-channel
DDR, but there are some rules while using dual-channel DDR (Please refer to
the suggested DDR population table below). Inserting your memory modules in the
memory slot with different color will work as dual-channel DDR. Users may install
memory modules of different type and density on different-channel DDR DIMMs.
However, the same type and density memory modules are necessary while
using dual-channel DDR, or unstability may happen.
Please refer to the following table for detailed dual-channel DDR only for
865PE Neo2-V. Other combination not listed below will function as single-channel
DDR.

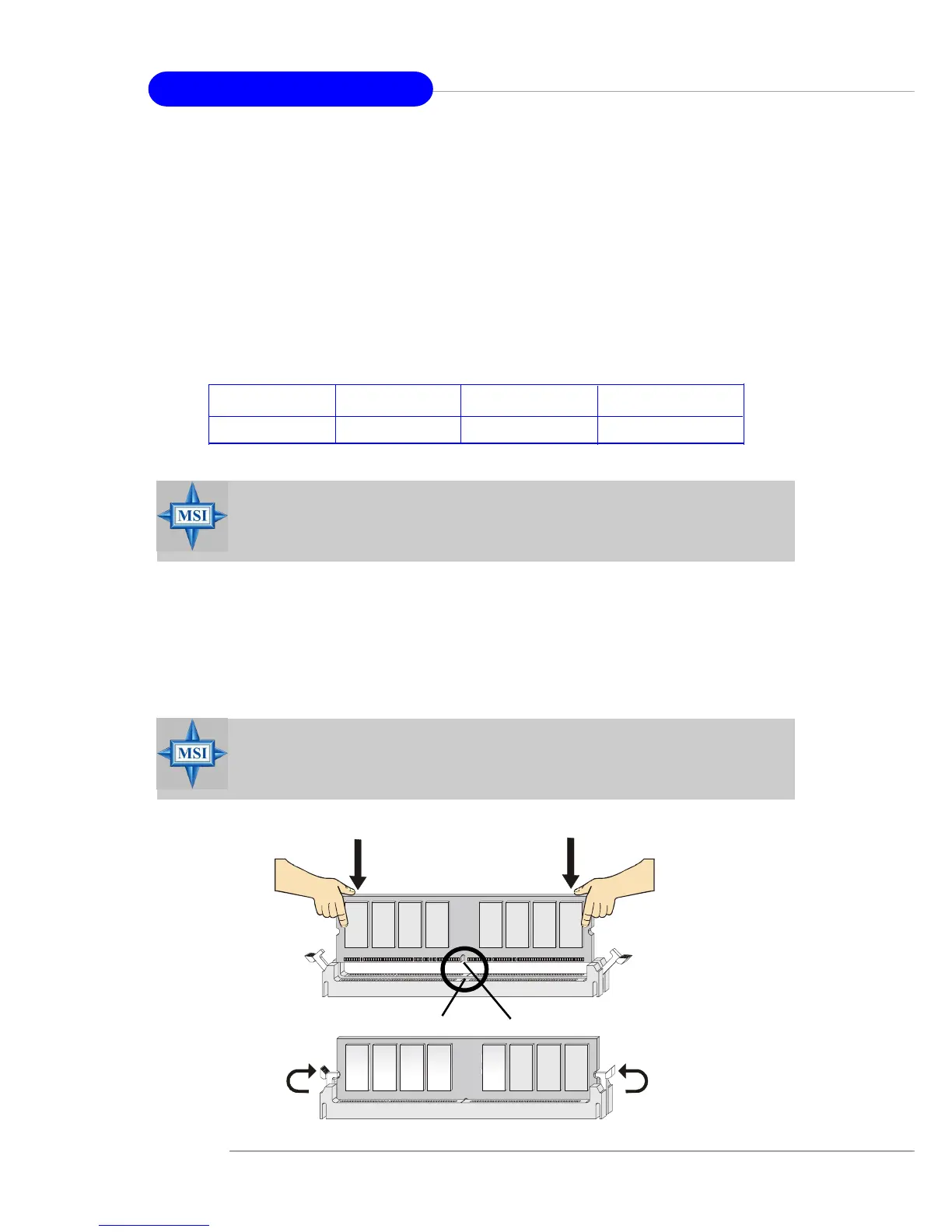

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only
fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until
the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt
Notch
MSI Reminds You...
You can barely see the golden finger if the module is properly inserted
in the socket.
DIMM1 (Ch A) DIMM2 (Ch A) DIMM3 (Ch B) System Density
128MB~1GB 128MB~1GB 256MB~2GB
MSI Reminds You...
Dual-channel DDR for 865PE Neo2-V works ONLY in the DIMM1-DIMM3
combination listed in the table above.
