2-10
MS-6788 ATX Mainboard

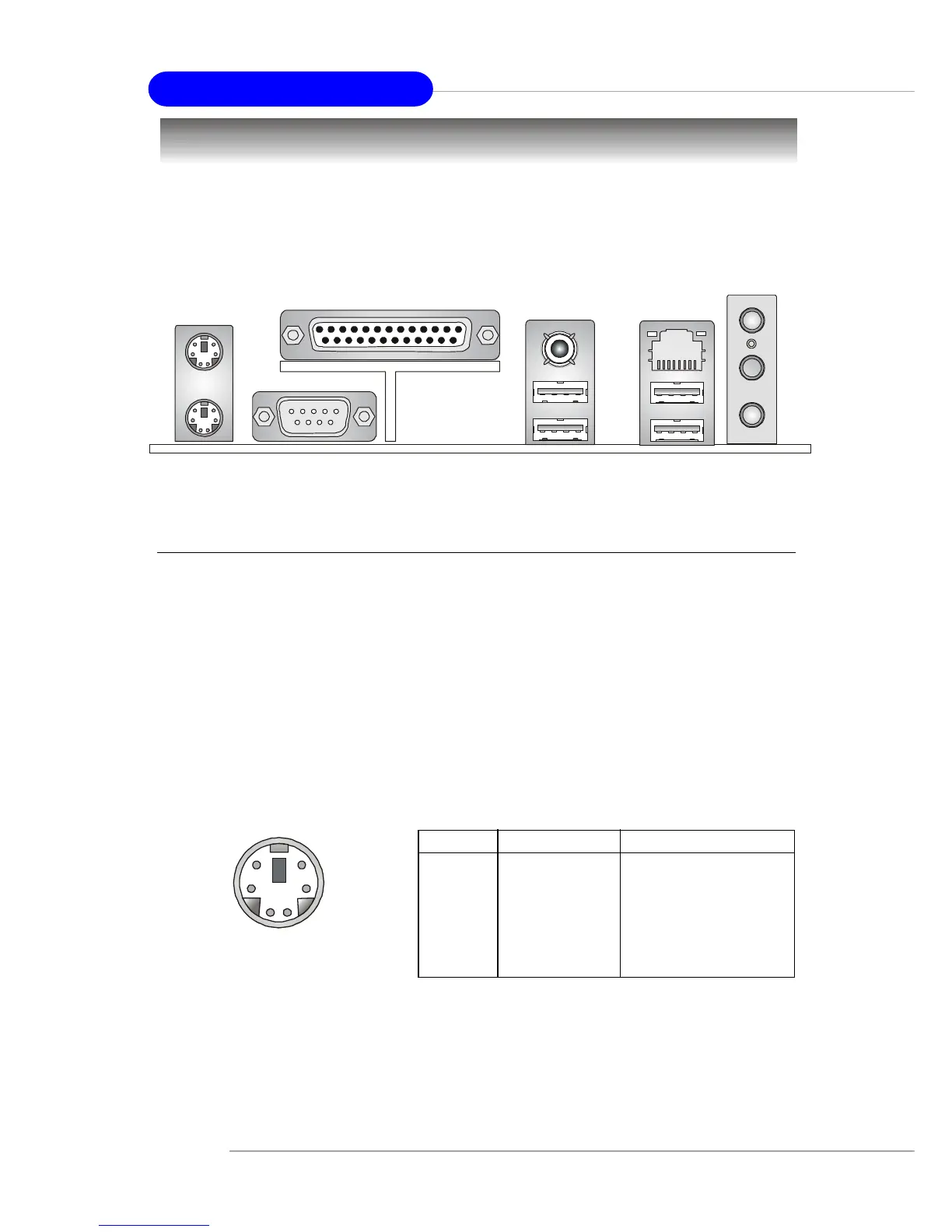

The back panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector for at-
taching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this connector. The
connector location and pin assignments are as follows:
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
Keyboard Connector
The mainboard provides a standard PS/2
®
keyboard mini DIN connector for
attaching a PS/2
®
keyboard. You can plug a PS/2
®
keyboard directly into this connector.
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Keyboard (6-pin Female)
Mouse
Parallel
COM A
USB Ports
Keyboard
L-out
L-in
MIC
LAN
(Optional)
USB Ports
SPDIF-Out
To Next Page
