2-14
MS-6788 ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, LAN, USB
Ports, and CPU/System/Power Supply FAN.

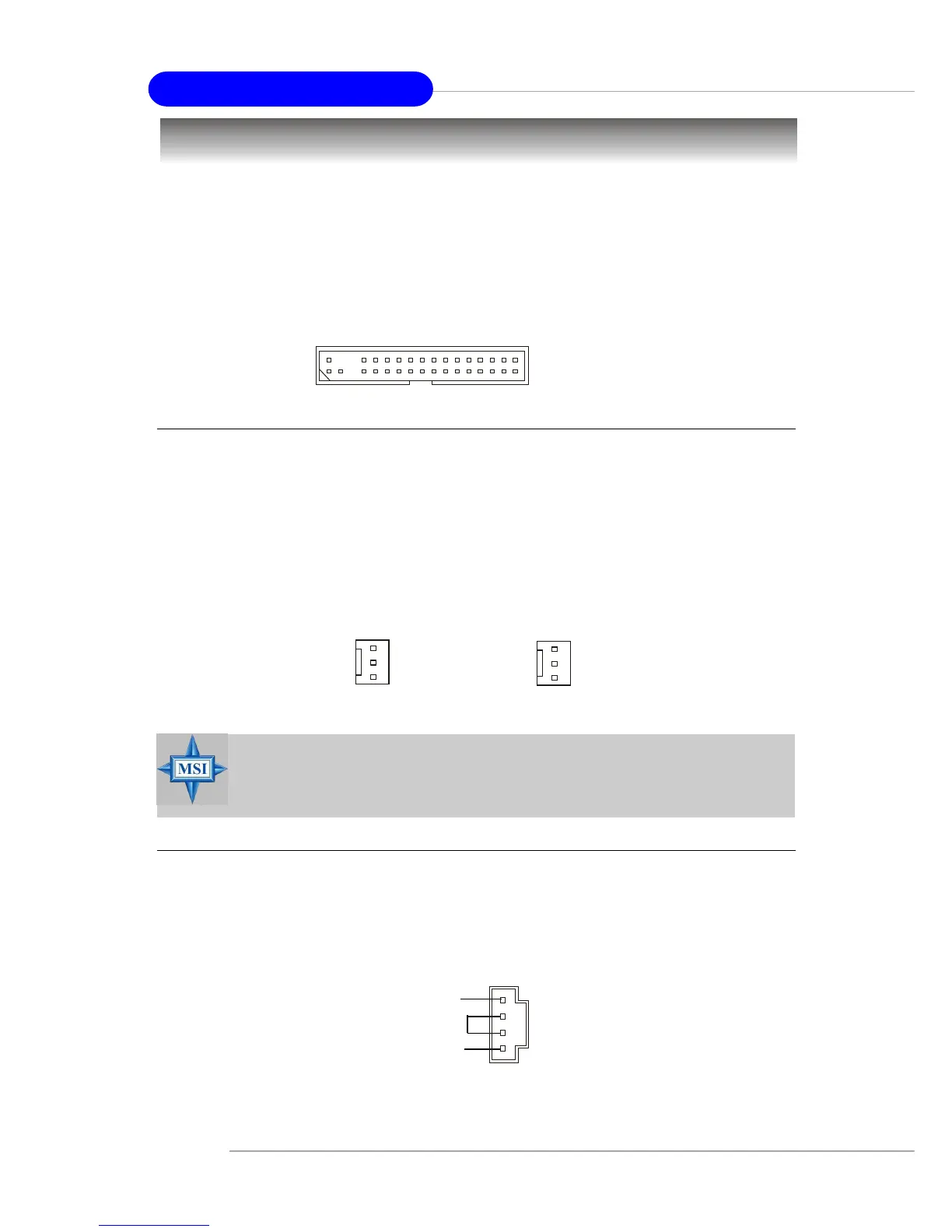

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
Fan Power Connectors: CPUFAN1/SYSFAN1
The CPUFAN1 (processor fan) and SYSFAN1 (system fan) support system
cooling fan with +12V. It supports three-pin head connector. When connecting the
wire to the connectors, always take note that the red wire is the positive and should
be connected to the +12V, the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.
CPUFAN1
Sensor
+12V
GND
SYSFAN1
Sensor
+12V
GND
CD-In Connector: CD1
The connector is for CD-ROM audio connector.
CD1
GND
L
R
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. Please refer to the recommend CPU fans at Intel
®
official website.
