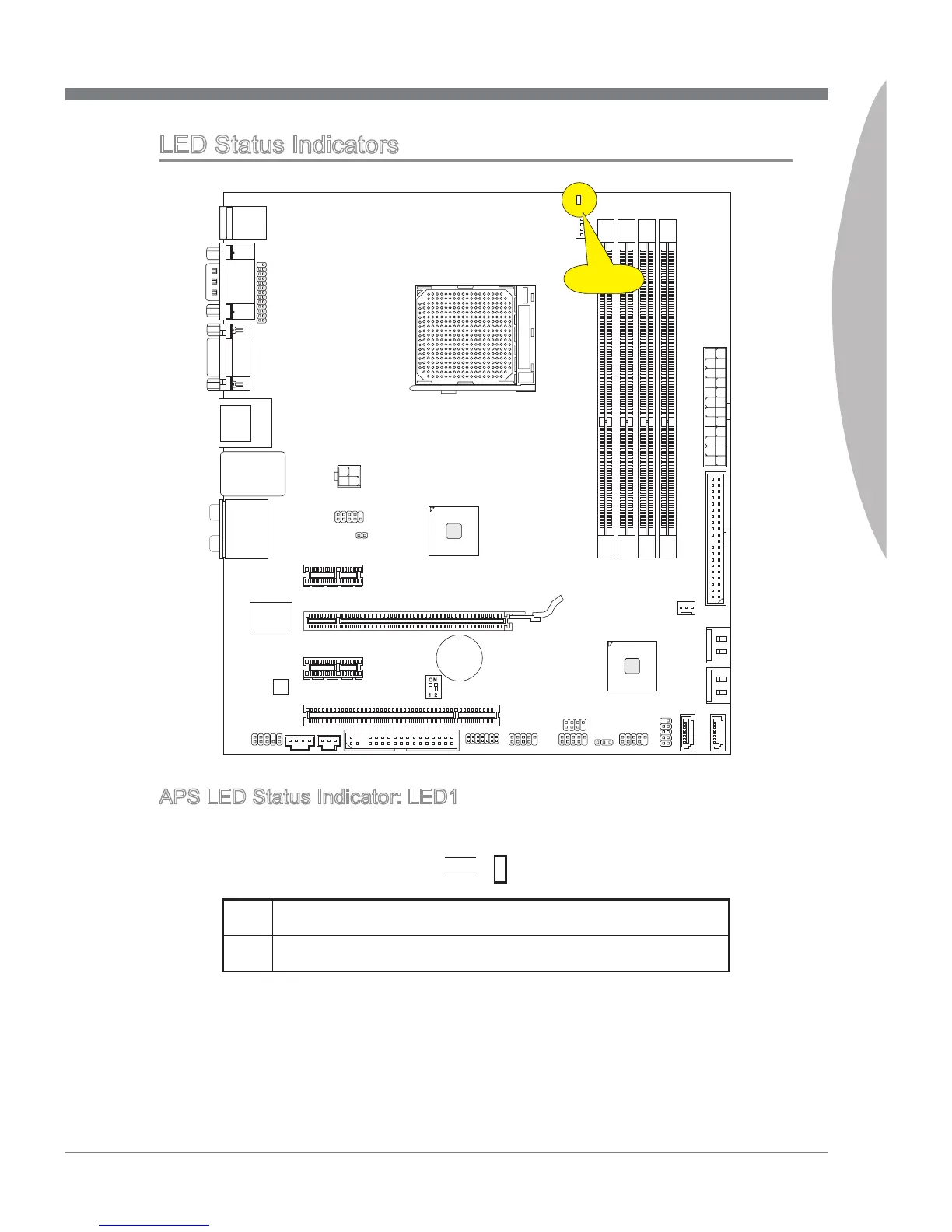

LED Status Indicators
APS LED Status Indicator: LED1
These APS (Active Phase Switching) LED indicates the current CPU power phase
mode. Follow the instructions below to read.
LED1
ON The LED will light when CPU is in 3 phase power mode.
OFF The LED will go o󰘯 when CPU is in 1 phase power mode.
LED1
