AMD RAID
MS-7623
Appendix B
B-5
AMD RAID
MS-7623
Appendix B
Initialize logical drive, zero the disk drives. RAID 1 or 10 only.
Stripe Block Size, the default 64KB is best for most applications. RAID 0 or 10
only.
Gigabyte Boundary, allows use of slightly smaller replacement drives.
Cache Mode, WriteThru or WriteBack.
■
■
■
■

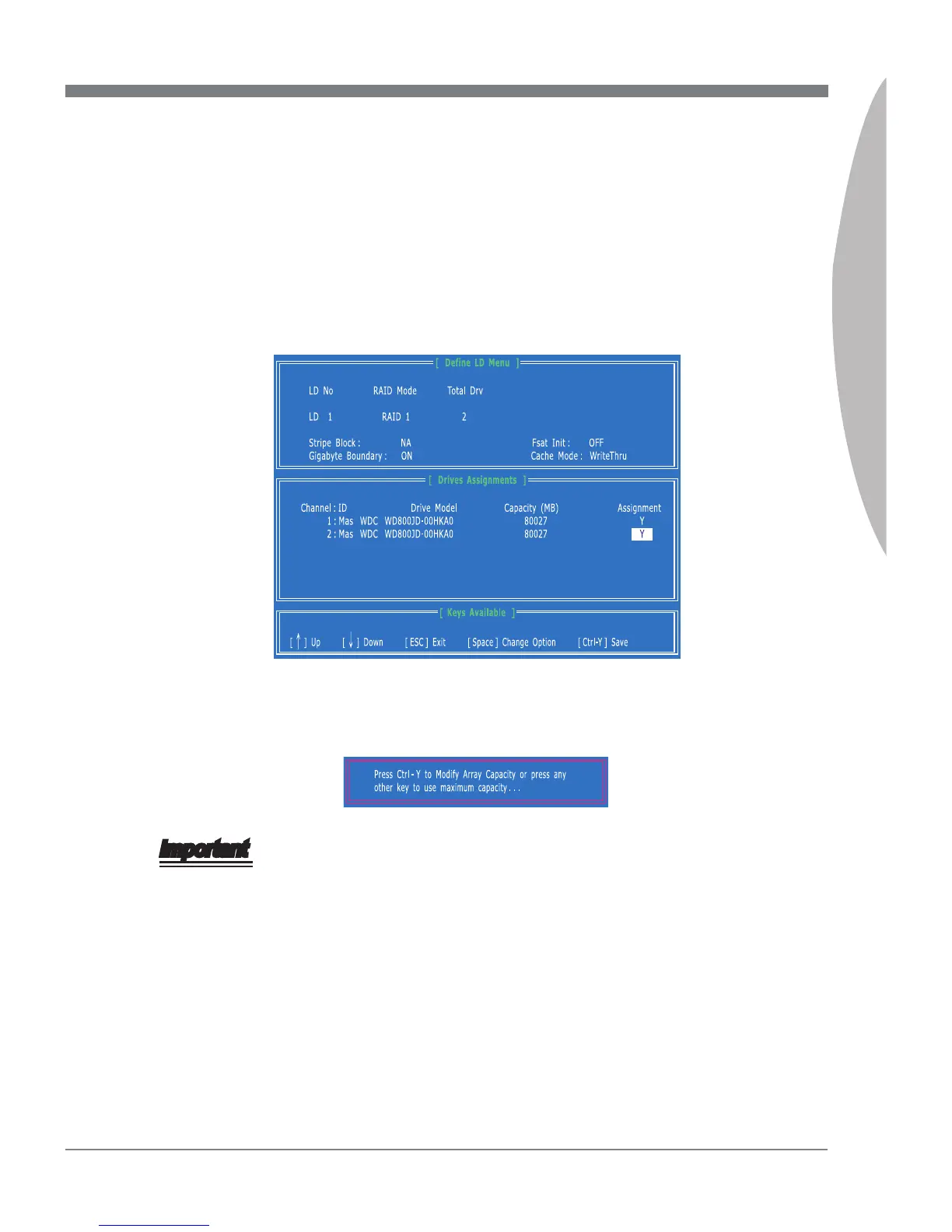

On the Drives Assignments window, use the arrow key to choose the hard drives
which you want to make part of the LD, use the space key to change the assignment
to “Y”. Then press [Ctrl+Y] to save the con󰘰guration.
4.
A message will show up on the bottom, press any key to save the con󰘰guration or
press [Ctrl-Y] to allocate the RAID capacity manually.
5.
Important
The default capacity is the full capacity of the selected hard drives.
If you allocate the 󰘰rst LD capacity manually, you can create second LD
with remaining capacity of the selected hard drives.
•
•
