3-23
BIOS Setup
MS-7623
Chapter 3
FSB/DRAM Ratio
This item allows you to select the ratio of FSB/ DRAM.
Adjusted DRAM Frequency (MHz)
It shows the adjusted Memory frequency. Read-only.
Onboard VGA Core OverClock
This item allows you to overclock the onboard VGA.

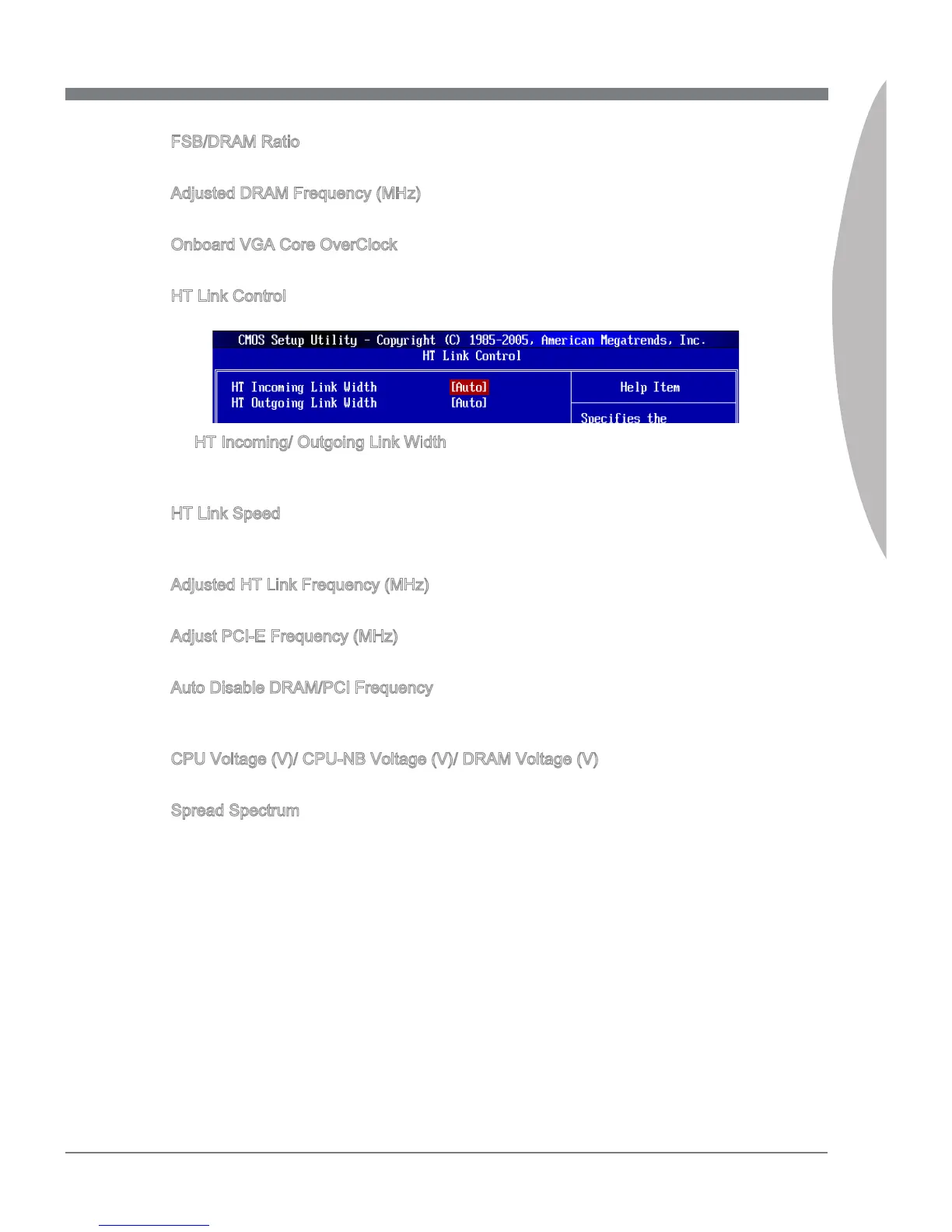

HT Link Control
Press <Enter> to enter the sub-menu.
HT Incoming/ Outgoing Link Width
These items allow you to set the Hyper-Transport Link width. Setting to [Auto], the
system will detect the HT link width automatically.
HT Link Speed
This item allows you to set the Hyper-Transport Link speed. Setting to [Auto], the sys-
tem will detect the HT link speed automatically.
Adjusted HT Link Frequency (MHz)
It shows the adjusted HT Link frequency. Read-only.
Adjust PCI-E Frequency (MHz)
This eld allows you to select the PCIE frequency (in MHz).
Auto Disable DRAM/PCI Frequency
When set to [Enabled], the system will remove (turn o) clocks from empty DRAM/ PCI
slots to minimize the electromagnetic interference (EMI).
CPU Voltage (V)/ CPU-NB Voltage (V)/ DRAM Voltage (V)
These items are used to adjust the voltage of CPU, Memory and chipset.
Spread Spectrum
When the mainboard’s clock generator pulses, the extreme values (spikes) of the pulses
create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the
EMI generated by modulating the pulses so that the spikes of the pulses are reduced
to atter curves. If you do not have any EMI problem, leave the setting at Disabled for
optimal system stability and performance. But if you are plagued by EMI, set to Enabled
for EMI reduction. Remember to disable Spread Spectrum if you are overclocking
because even a slight jitter can introduce a temporary boost in clock speed which may
just cause your overclocked processor to lock up.
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
