Chapter 1
1-8Getting Started

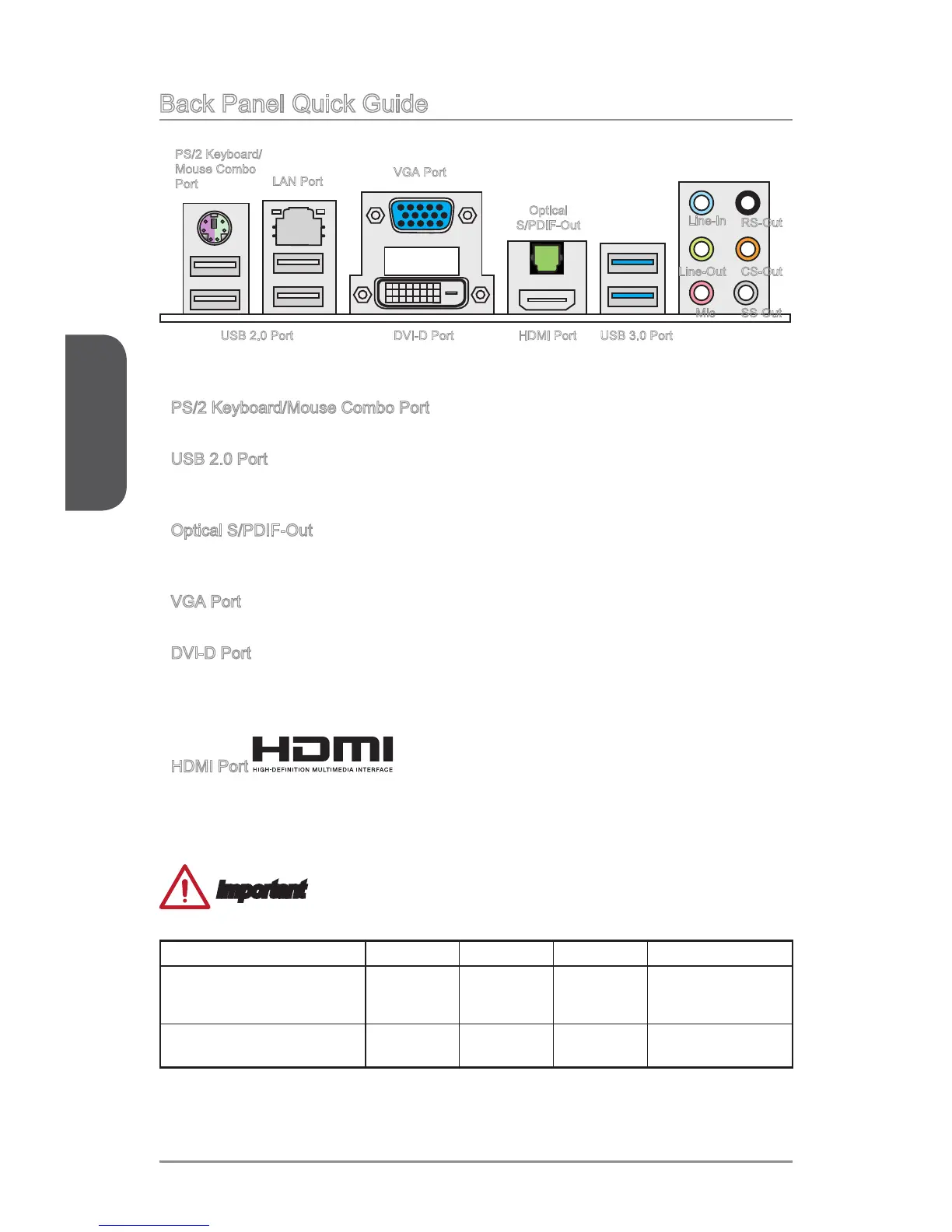

Back Panel Quick Guide
PS/2 Keyboard/Mouse Combo Port
A combination of PS/2
®
mouse/keyboard DIN connector for a PS/2
®
mouse/keyboard.
USB 2.0 Port
The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other
USB 2.0-compatible devices.
Optical S/PDIF-Out
This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical ber cable.
VGA Port
The DB15-pin female connector is provided for monitor.
DVI-D Port
The DVI-D (Digital Visual Interface- Digital) connector can be connected to a LCD
monitor, or a CRT monitor with an adapter. To connect a monitor, please refer to the
monitor’s manual for more information.
HDMI Port
The High-Denition Multimedia Interface (HDMI) is an all-digital audio-video interface
that is capable of transmitting uncompressed streams. HDMI supports all types of TV
formats, including standard, enhanced, or high-denition video, plus multi-channel
digital audio on a single cable.
Important
This platform supports dual-display and triple-display function.
HDMI+VGA HDMI+DVI VGA+DVI HDMI+VGA+DVI
Extend mode
(Extend the desktop to the second
and third monitor)
◯ ◯ ◯ ◯
Clone mode
(Monitors have the same screen)
◯ ◯ ◯ ◯
▶
▶
▶
▶
▶
▶
Optical
S/PDIF-Out
Line-In
Line-Out
Mic
RS-Out
CS-Out
SS-Out
USB 3.0 Port
LAN Port
PS/2 Keyboard/
Mouse Combo
Port
USB 2.0 Port HDMI Port
VGA Port
DVI-D Port
To Next Page
