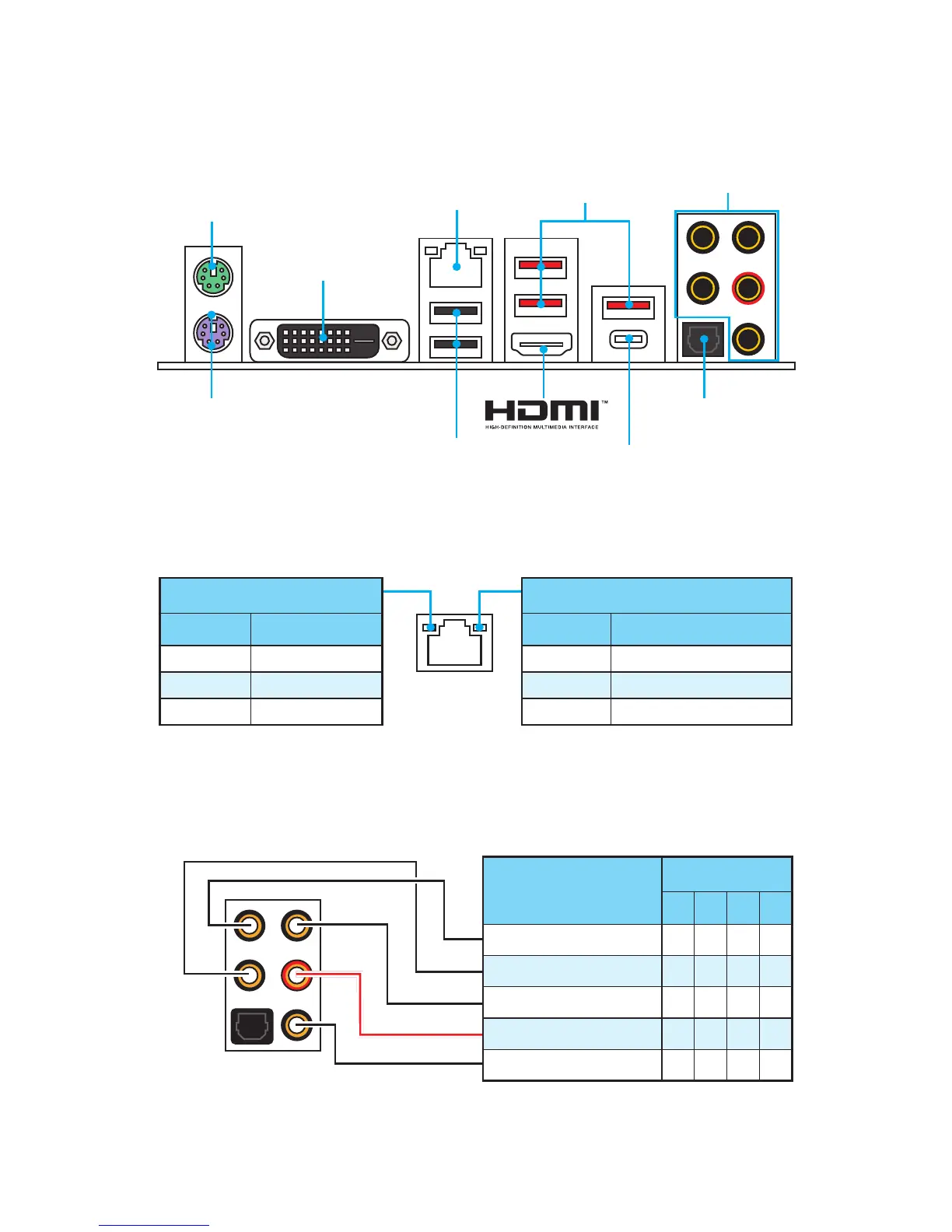

Rear I/O Panel
Rear I/O Panel
PS/2 Mouse
PS/2 Keyboard
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
USB 3.1 Gen1
Type-C
USB 3.1 Gen1
Type-A
USB 2.0
LAN
Audio Ports
Optical S/PDIF-Out
DVI-D
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
